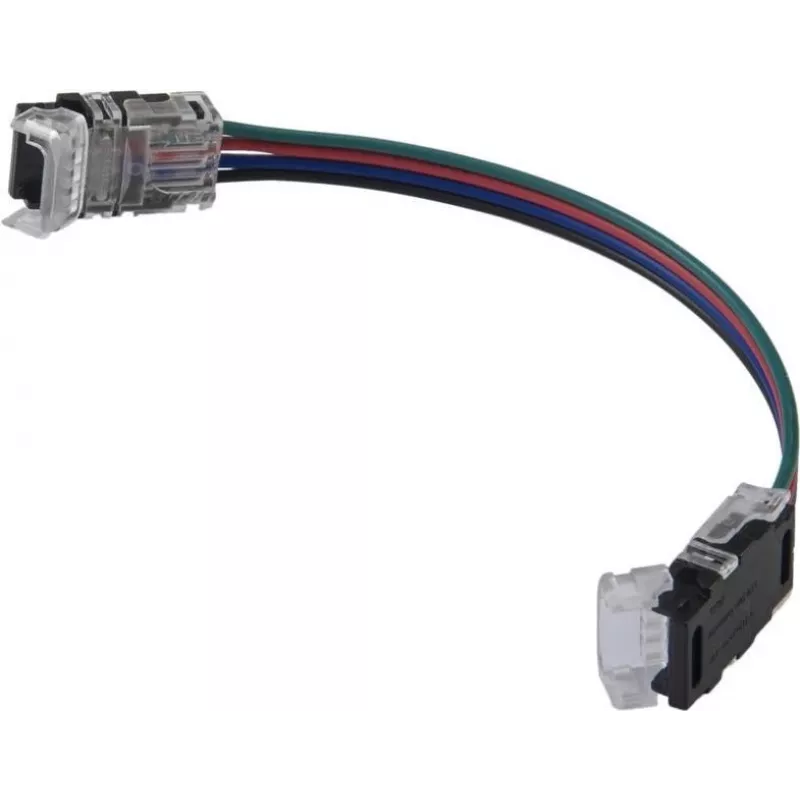

Conector para tira LED 4 polos EUROLITE 50530071 para tira LED de 10 mm

The EUROLITE 50530071 4-pin LED strip connector is made for 10 mm wide RGB and RGBW LED strips, offering a compact, tool-free way to join or repair four-conductor LED tape segments. Its transparent housing provides clear alignment of the strip contacts and ensures visible, reliable contact points for indoor lighting projects where a solderless connection is required. The connector supports quick installations, extensions and on-site adjustments without the need for specialized tools.

Advantages

The connector enables a secure, solderless connection between 4-conductor LED strips, reducing installation time and minimizing the need for tools. Its transparent casing helps align strip contacts accurately and allows visual inspection of the contact area. The compact form factor fits tight spaces and keeps connections discreet in indoor installations. Designed for 10 mm LED strips, the connector maintains stable electrical contact for typical low-voltage LED lighting applications.

Suitable for

Key specifications

How to use

Prepare the LED strip by ensuring the end is cut straight at the marked cut line and that the copper contact pads are exposed and free of residue. Open the connector's clamp, insert the LED strip ensuring the correct alignment of the four contacts with the connector pins, then close the clamp to secure the connection. Verify that the strip is properly seated and that each conductor aligns with its corresponding contact before powering the lighting system. For multi-segment connections, repeat the same steps for each joint.

Recommendations

The connector is intended for indoor, low-voltage LED strip installations. Avoid use in wet or outdoor environments unless placed inside an appropriate protective enclosure. Ensure power is disconnected when making or changing connections, and confirm correct polarity and conductor order for RGB/RGBW strips to prevent color or control issues.
