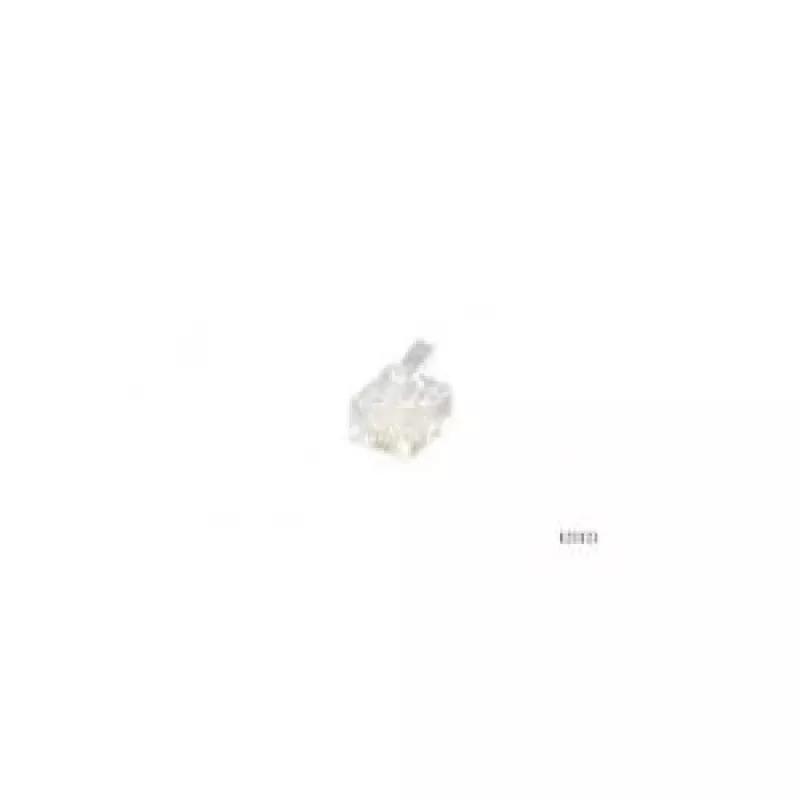

Conector telefónico Equip, 6P4C

The Equip Telephone Plug 6P4C is a compact, transparent RJ-12 connector designed for reliable telephone connections. Made from quality materials, this modular plug suits flat cable installations and provides a lightweight, easy-to-handle solution for various telephone wiring needs.

Advantages

The transparent design allows visual inspection of conductor placement during termination. Its small size and low weight (0.6 g) make handling and installation straightforward. The RJ-12 (6P4C) configuration ensures compatibility with standard telephone equipment and cabling.

Suitable for

• Telephone handsets and base units
• Telephone wall sockets and extensions
• Flat telephone cable assemblies

Key specifications

• Connector: RJ-12 (6P4C)
• Weight: 0.0006 kg (0.6 g)
• Colour: Transparent
• Dimensions: width 9.65 mm, depth 12.3 mm
• Brand: EQUIP, MPN: 121121, EAN: 4015867178126

How to use

Prepare the flat telephone cable by stripping the outer sheath to expose the conductors. Align the conductors in the correct pin order, push them fully into the plug until they reach the end, and crimp the plug with a compatible modular crimping tool to secure the connection. Verify conductivity and seating in the telephone socket after installation.

Recommendations

Use a proper crimping tool for 6P4C plugs to avoid damage. Ensure conductors are arranged according to the equipment wiring standard before crimping and inspect the transparent housing to confirm correct insertion.
