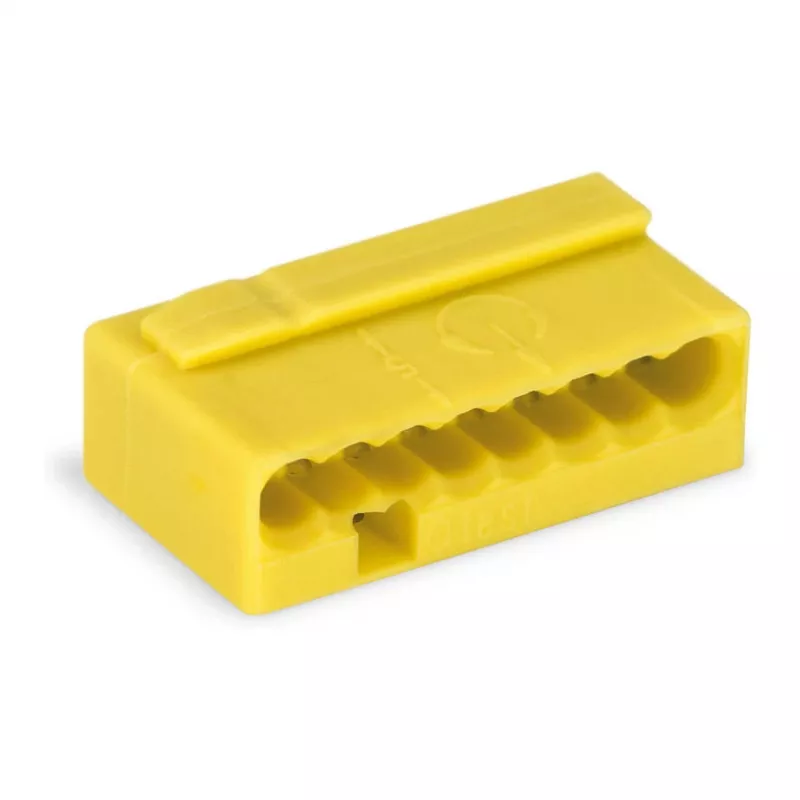

Conector WAGO 243-508 PUSH WIRE® de 8 conductores amarillo 6A 100V

The WAGO 243-508 PUSH WIRE® Connector is a compact, side-entry wiring connector designed for fast and reliable connections of solid copper conductors. With 8 conductor positions, it supports wire sizes from 0.5 to 1.5 mm² (20-16 AWG) and is rated for 6 A at 100 V. The yellow housing is made of polyamide 6.6, ensuring durability and a wide operating temperature range from -35 °C to +105 °C.

Advantages

Tool-free push-in termination saves installation time. The transparent housing allows visual inspection of conductor insertion. Compact design saves space in junction boxes. Reliable contact with electrolytic copper contact material.

Suitable for

• Lighting and switchgear applications
• Control cabinets and distribution boards
• Building automation and electrical installations

Key specifications

• Product Type: PUSH WIRE® Connector
• Number of Conductors: 8
• Color: Yellow
• Nominal Current: 6 A
• Nominal Voltage: 100 V
• Connection Technology: PUSH WIRE®
• Actuation Type: Push-in
• Connectable Conductor Material: Copper
• Solid Conductor Size: 0.5 - 1.5 mm² (20 - 16 AWG)
• Stripping Length: 11 mm (0.43 inch)
• Wiring Type: Side-entry wiring
• Insulation Material: Polyamide 6.6 (PA 6.6)
• Contact Material: Electrolytic copper (Ecu)
• Fire Load: 0.001 MJ
• Pollution Degree: 2
• Overvoltage Category: II
• Operating Temperature: -35 °C to +105 °C

Recommendations

For best results, use with solid copper conductors and strip to 11 mm length. Ensure proper insertion until the conductor locks into place.
