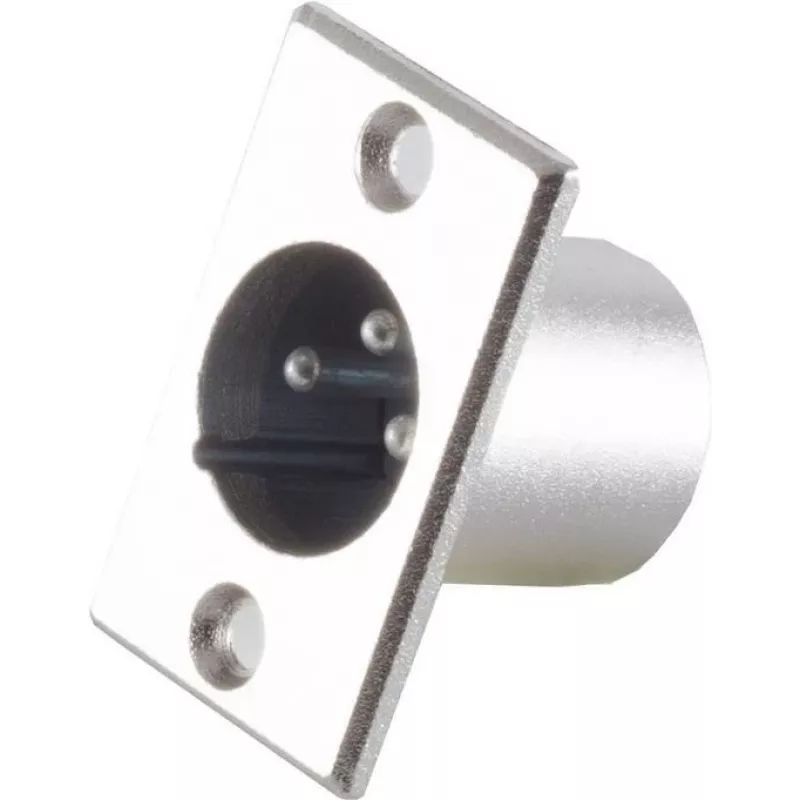

Conector XLR ShiverPeaks BS55001 montaje en panel (3 polos) para cableado de señal de audio

The ShiverPeaks BS55001 panel-mount XLR connector is a 3-pin interface engineered for balanced audio signal cabling. Intended for installation in equipment front panels, patch bays or junction boxes, this connector provides reliable electrical contact and a secure mechanical fit for microphones, mixers and other pro audio devices. The metal shell and standard pin configuration ensure compatibility with common XLR cables and fixtures used in studio, live sound and installed audio systems.

Advantages

This panel-mount XLR connector offers a compact, industry-standard solution for balanced audio connections. Its robust mounting design reduces movement and wear at the connection point, while the standard 3-pin layout maintains correct signal polarity and low-noise performance. The construction is optimized for repeated mating cycles and provides consistent contact pressure to minimize intermittent connections.

Suitable for (tasks / use cases)

• Microphone inputs and outputs in studio consoles and recording equipment
• Line-level connections between mixers, processors and amplifiers
• Fixed installations in racks, patch panels and junction boxes for live sound and AV systems
• Field and rental audio systems requiring durable panel connectors

Key specifications

• Connector type: 3-pin XLR panel-mount
• Contact configuration: balanced audio (pin 1 = ground, pin 2 = hot, pin 3 = cold)
• Mounting style: front-panel cutout with securing hardware for stable installation
• Material: metal shell for shielding and mechanical strength
• Durability: designed for multiple mating cycles and reliable contact retention

How to use

Install the connector into the appropriate panel cutout and secure it using the supplied mounting hardware or recommended fasteners. Wire the internal solder or clamp terminals according to standard XLR pin assignments to maintain correct polarity and grounding. After installation, verify continuity and correct phasing with a multimeter or audio test signal before connecting critical equipment. Regularly inspect the connector contacts and mounting for corrosion or looseness in high-use environments.

Recommendations

For best signal integrity, use balanced XLR cables and maintain correct pin wiring. Ensure the panel cutout and mounting hardware provide a solid mechanical fit to minimize stress on solder joints and terminals. In high-humidity or outdoor installations, consider additional sealing or protective measures to prevent corrosion.
