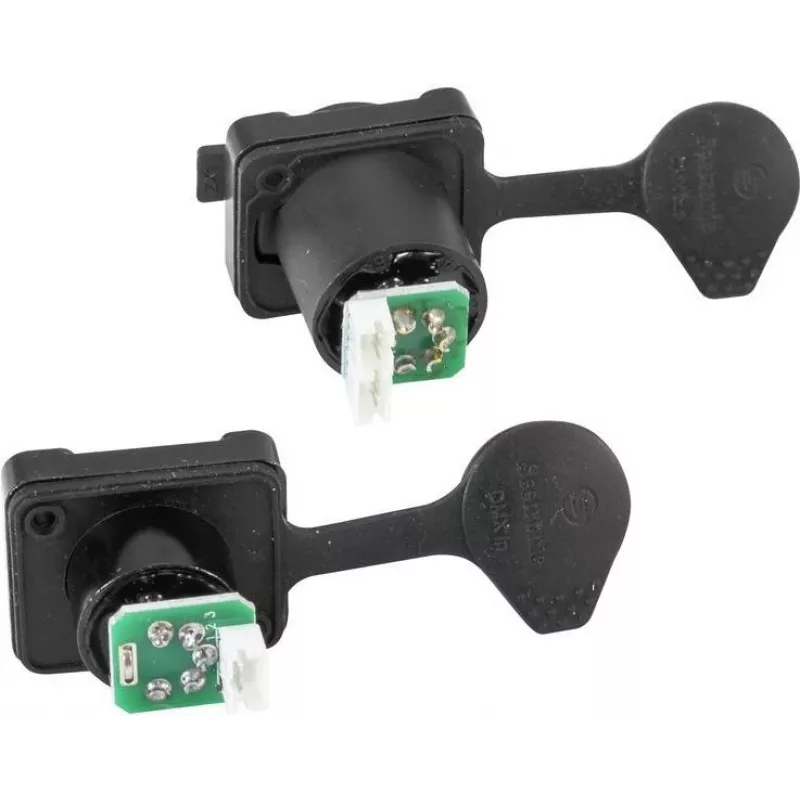

Conjunto de conectores XLR de 5 pines EUROLITE 30208441 para LED IP PIX Strobe RGB CW WW

The XLR 5-pin connector set EUROLITE 30208441 for LED IP PIX Strobe RGB CW WW is a matched pair of 5‑pin XLR plug and socket developed for signal and power connections in stage and architectural lighting systems. Designed to be compatible with LED IP PIX Strobe fixtures and RGB/CW/WW devices that use 5‑pin wiring, the set enables secure transmission of control signals and compatible power wiring where a 5‑pin interface is required. The kit provides a compact mechanical fit, reliable contacts, and a housing suitable for installation or repair work in professional and semi‑professional lighting setups.

Advantages

The connector set features standardized 5‑pin contacts for consistent electrical connections and reduced risk of signal loss. The robust connector housings offer strain relief and secure locking to prevent accidental disconnection during operation. Contacts are designed to maintain low contact resistance, ensuring reliable control signal transmission for DMX or proprietary five‑wire protocols. The components are lightweight and straightforward to mount, making them suitable for both field repairs and permanent installations.

Suitable for

Key specifications

How to use

Prepare the cable by stripping the outer jacket and separating the five conductors. Insert conductors into the corresponding contact points of the plug or socket according to the wiring scheme used by the lighting system. Solder or crimp each conductor to the contact as required, then secure the housing and apply the strain relief. Panel mount the socket using the recommended cutout and fasteners, ensuring correct orientation for mating with the plug. After assembly, test continuity and correct pin mapping with a multimeter or signal tester before connecting live control equipment.

Recommendations

Use consistent pin numbering and wiring documentation when integrating the connector set into an existing system. For DMX setups, follow the installation practices for shielding and grounding to minimize interference. Avoid exposing connectors to prolonged moisture without appropriate IP‑rated sealing or protective boots; if used outdoors, ensure additional environmental protection. Inspect contacts periodically and replace connectors showing wear, corrosion, or loose fittings to maintain reliable operation.
