Conmutador KVM 4 puertos USB InLine 60614H

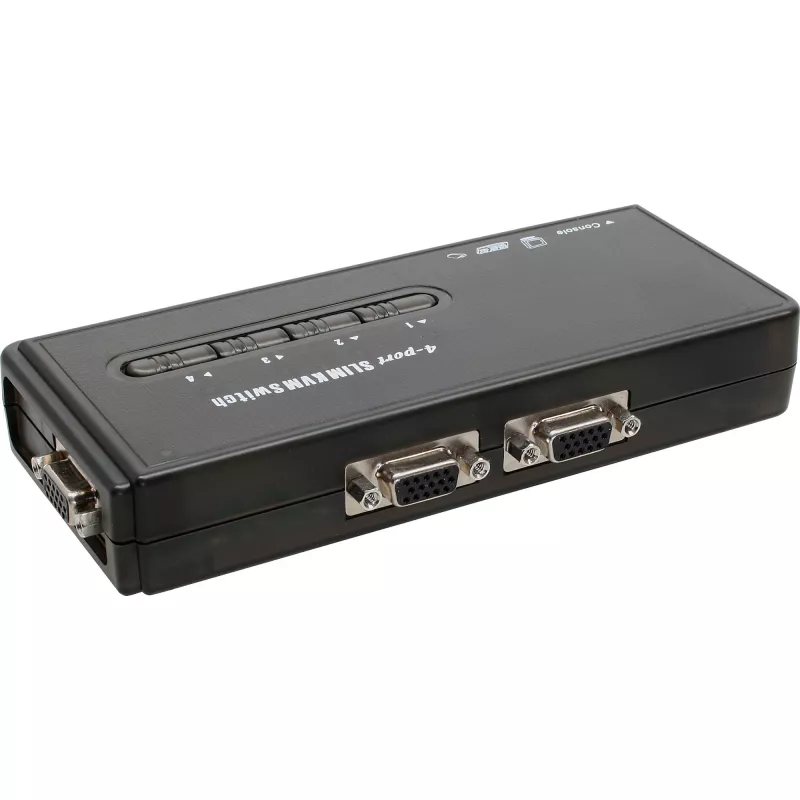

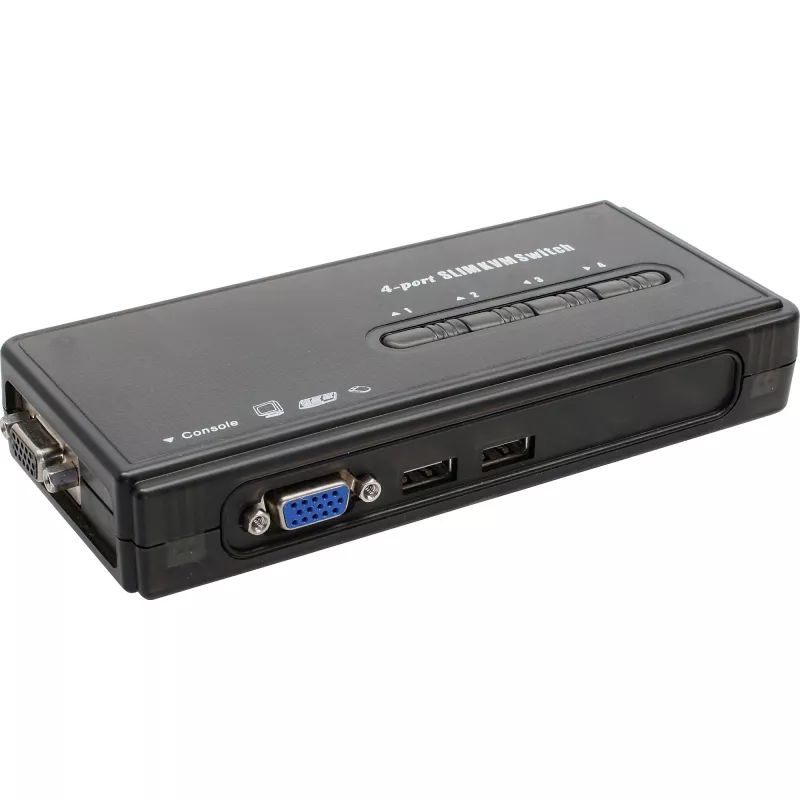

The InLine KVM Switch 4 Port USB (model 60614H) lets you operate up to four computers with a single keyboard, mouse and VGA monitor. It supports USB for keyboard and mouse connections and provides VGA video output with a maximum resolution of 2048 x 1536 pixels. The compact switch includes four 1.2 m cable sets, measures 164 x 72 x 26 mm and is finished in black, allowing straightforward integration into desktop workstations.

Advantages

This 4-port USB KVM switch reduces desktop clutter by centralising input and display control for multiple PCs. It uses standard USB and VGA connections for broad compatibility, requires no additional power adapters for typical setups, and includes matching 1.2 m cables for immediate installation. The compact dimensions make it convenient to place near monitors or under desks.

Suitable for (tasks / use cases)

• Managing multiple office PCs from one workstation
• Switching between test systems in IT maintenance and development
• Home office setups with several computers or small servers
• Environments where VGA monitors and USB peripherals are used

Key specifications

• Model: InLine 60614H
• Controlled computers: 4
• Keyboard port type: USB
• Mouse port type: USB
• Video port type: VGA
• Maximum resolution: 2048 x 1536 pixels

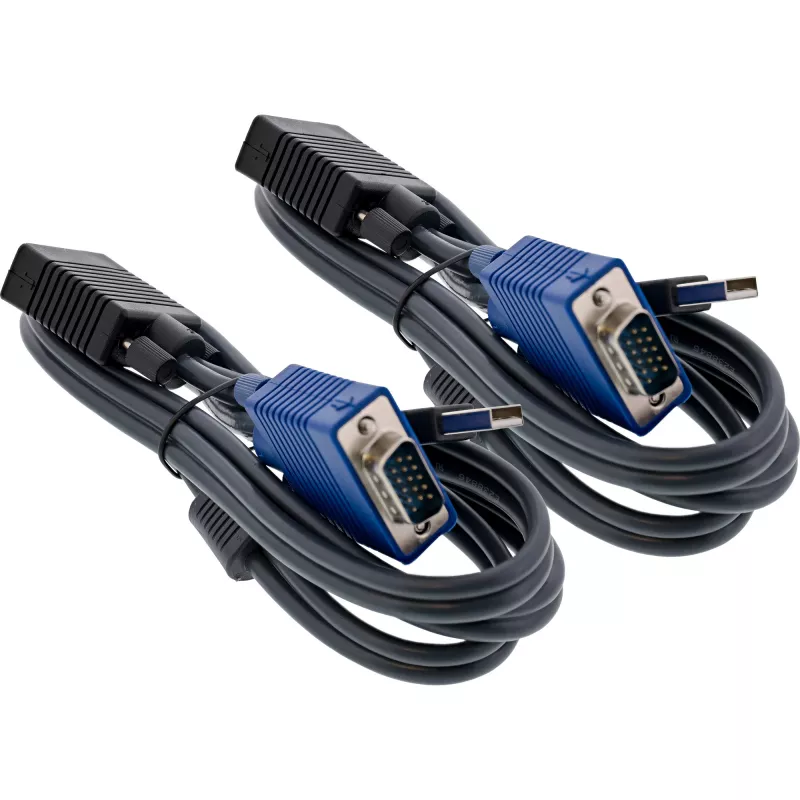

• Cable length: 1.2 m (included, 4 sets)
• Dimensions: 164 x 72 x 26 mm
• Colour: Black

How to use

Connect the included VGA and USB cable set from each computer to the corresponding ports on the KVM switch. Attach a USB keyboard and mouse to the switch’s console USB ports and connect a VGA monitor to the switch’s VGA output. Power on the computers and switch control between them using the switch’s selector method (button or hotkey), depending on the model’s interface.

Recommendations

For reliable operation, use VGA cables of appropriate shielding and avoid running them in parallel with high-power cables. Ensure connected computers are configured to detect USB keyboards and mice at boot to allow seamless switching. Place the switch close to the monitor or keyboard to keep cable runs tidy.
