Conmutador KVM ATEN CL3700NW montaje en rack negro USB HDMI Full HD

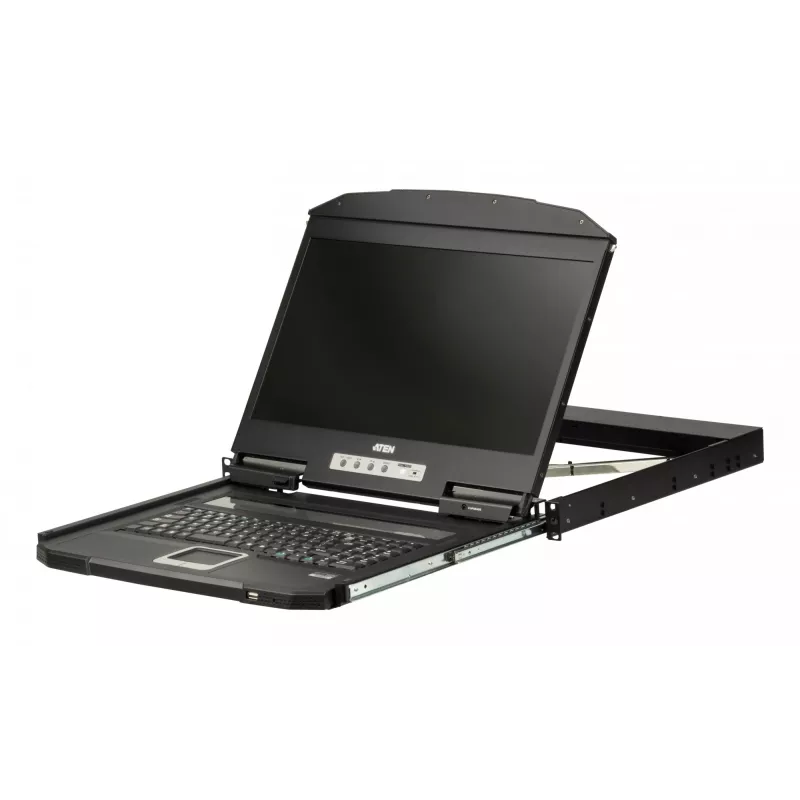

The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

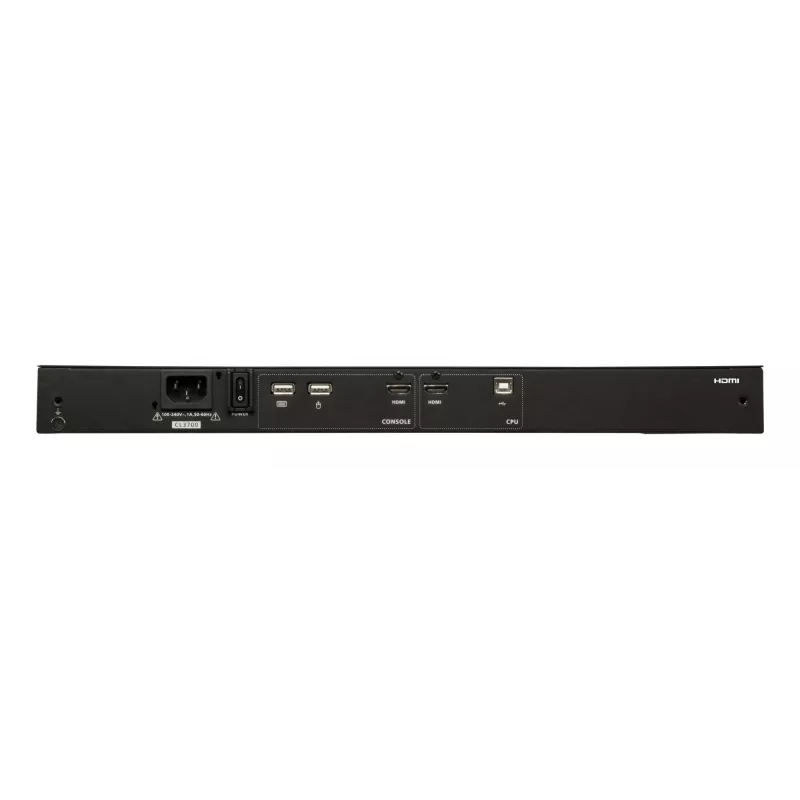

The CL3700 is a dedicated front end sliding console for compatible HDMI KVM switches. The CL3700NW’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area. For added convenience, users can choose to manage the computer from an external console. The CL3700 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI monitor) are provided on the rear panel.

With a rich feature set, the CL3700 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

In addition, testing is performed using the MIL-STD-810G* procedure to verify High/Low Temperature, Vibration, and Shock Resistance. MIL-STD-810G testing ensures the CL3700NW operates reliably in harsh environments by subjecting the equipment to rigorous testing. This process emphasizes the equipment's environmental design and limits under real-world conditions it will encounter throughout its lifespan, such as operating in extreme temperature ranges or on vessels experiencing frequent high vibrations and shocks on the ocean.

Note:
Suggest to collocate with 2K-0003/ 2K-0004, and 2X-EA12 (LockPro HDMI cable lock), 2X-EA07 (Lok-U-Plug cable holder) to install

ATEN CL3700NW. Display diagonal: 47 cm (18.5"), Display: LCD. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. Keyboard language: French, Keyboard layout: AZERTY. Input current: 1 A. Width: 477 mm, Height: 42.8 mm, Depth: 480.6 mm

How to use

Install the CL3700NW into a 19" rack occupying 1U of space, sliding it into the short-depth position suitable for shallow cabinets. Connect the console's HDMI and USB cables to the compatible HDMI KVM switch or directly to the target computer as required. Use the integrated keyboard and touchpad for local control, or connect an external USB mouse to the front panel and an external keyboard/monitor to the rear ports for a second console. Power and signal connections should follow the equipment and rack power guidelines.

Recommendations

For secure and reliable installation, collocate the CL3700NW with recommended accessories such as cable locks (2X-EA12 LockPro HDMI cable lock), cable holders (2X-EA07 Lok-U-Plug), and compatible mounting kits (2K-0003 / 2K-0004). Consider the MIL-STD-810G test results when deploying in high-vibration or temperature-extreme environments.
