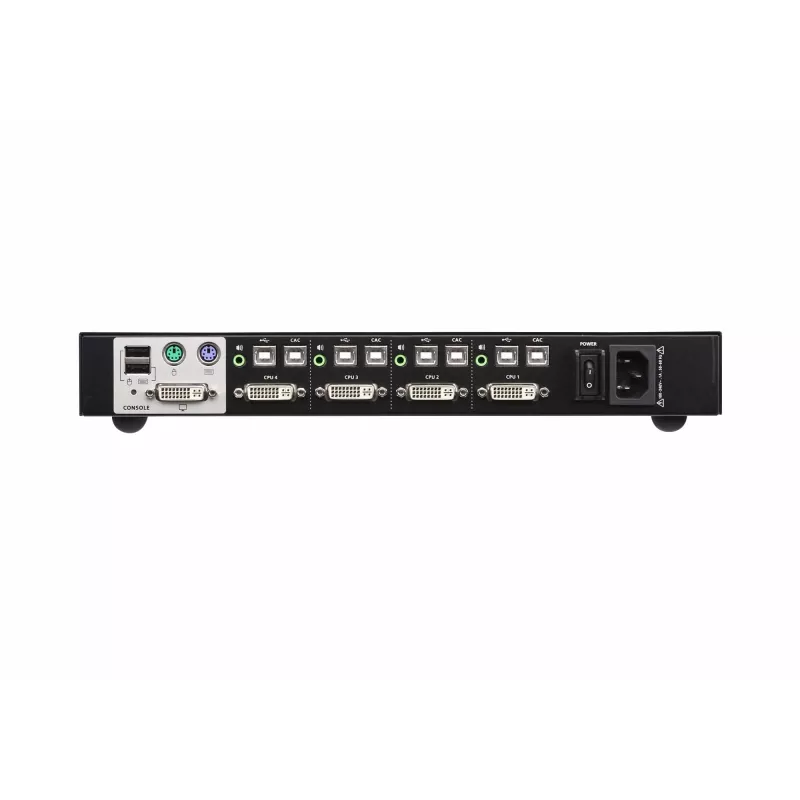

Conmutador KVM de seguridad ATEN 4 puertos USB DVI

The ATEN 4-Port USB DVI Secure KVM Switch (CS1184D) is designed to provide secure peripheral sharing for defense and intelligence environments. Compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) and certified by the National Information Assurance Partnership (NIAP), this switch lets a single keyboard, mouse and DVI monitor control up to four computers while meeting strict security requirements. The unit supports 4K Ultra HD resolution (3840 x 2160) at 30 Hz, includes USB connections for keyboard and mouse, is built in a metal housing and operates from an AC power source with a wide input voltage range.

Advantages

The CS1184D combines NIAP-certified PSS PP v3.0 compliance with a compact 4-port design to provide secure, hardware-enforced isolation between connected systems. It supports high-resolution video up to 4K at 30 Hz, uses standard USB ports for keyboard and mouse connectivity, and is housed in a durable metal chassis for reliable operation in demanding installations. The switch is RoHS compliant and suitable for environments that require regulated peripheral sharing.

Suitable for

• Secure control stations in defense and intelligence facilities
• Government or high-assurance IT environments requiring NIAP PSS PP v3.0 compliance
• Workstations that need a single keyboard, mouse and DVI monitor to manage multiple systems

Key specifications

• Model: CS1184D
• Controlled computers: 4
• Video interface: DVI-I; maximum resolution 3840 x 2160 at 30 Hz
• Keyboard / Mouse: USB
• Power: AC input, wide voltage range (100–240 V)
• Chassis: metal; colour: black
• Weight: 2.08 kg
• Compliance: NIAP PSS PP v3.0 certified; RoHS compliant

How to use

Install the CS1184D by connecting a single DVI monitor, USB keyboard and USB mouse to the console ports, then connect up to four target computers to the DVI and USB ports on the switch. Apply AC power using the provided power cord and follow the user instructions for secure configuration and switching between computers. Use the switch controls per the manual to select the active computer; peripheral signals are managed by the device to enforce secure isolation.

Recommendations

For secure operations, install the CS1184D in a controlled environment and follow NIAP guidance and your organisation’s security policies. Verify cabling and monitor settings to ensure 4K@30 Hz when required, and consult the supplied user instructions for power and configuration details.
