Conmutador KVM Inter-Tech KVM-LS-21JA negro

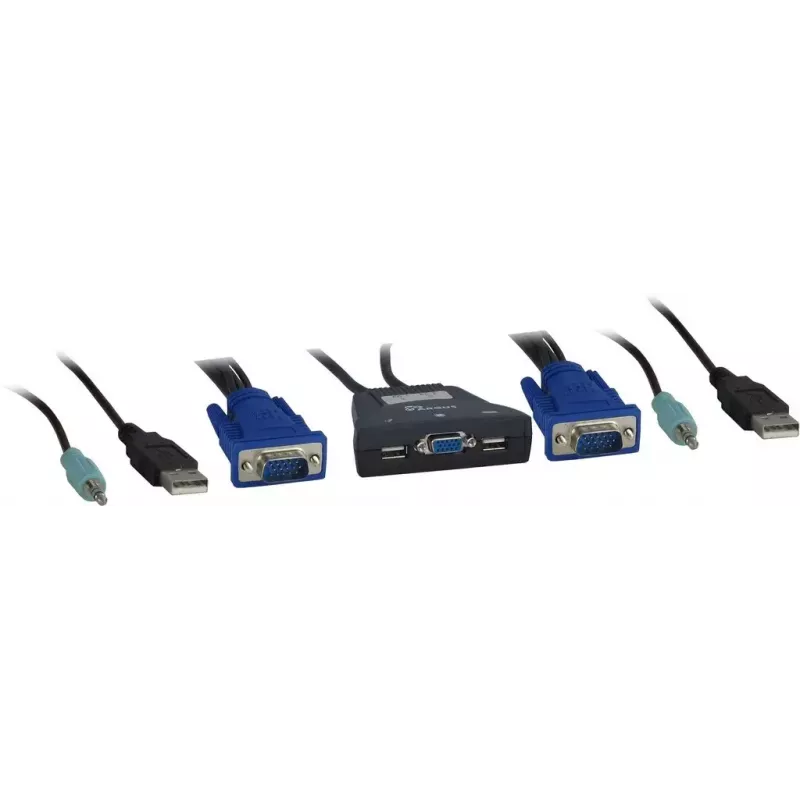

The Inter-Tech KVM-LS-21JA is a compact 2-port KVM switch that lets you control two desktop computers with a single keyboard, mouse and monitor. It includes integrated cables for keyboard and mouse (USB), VGA video (DB15) and a 3.5 mm audio connection, and is sized to fit neatly into a desktop workspace.

Advantages

This KVM switch combines control of two systems into one small unit, reducing desktop clutter and simplifying workstation management. The integrated cables (USB for keyboard/mouse, DB15 VGA and 3.5 mm audio) eliminate the need for separate cabling and make installation straightforward. The black compact housing provides a discreet, space-saving solution for dual-computer setups.

Suitable for

• Home office setups with two desktop PCs
• Small offices or reception desks requiring shared keyboard/mouse/monitor
• Workstations needing audio switching between two computers

Key specifications

• Control ports: 2 computers
• Keyboard port type: USB
• Mouse port type: USB
• Video port type: VGA (DB15), max resolution up to 1680 x 1280
• Audio: 3.5 mm audio jack switch
• Integrated cables: USB, DB15 VGA, 3.5 mm audio
• Colour: Black
• Dimensions (W×D×H): 85 × 70 × 25 mm

How to use

Connect the integrated cables from the KVM switch to each computer: USB for keyboard and mouse, DB15 VGA for the monitor signal, and the 3.5 mm jack for audio. Attach your keyboard, mouse and monitor to the corresponding console ports on the KVM switch. Use the front panel button or the designated switching method to toggle control between the two connected computers.

Recommendations

For best results, use standard USB keyboard and mouse devices and a VGA-compatible monitor. Ensure each computer's audio output is connected to the KVM audio jack if you require sound switching. Place the switch within easy reach for convenient manual switching between systems.
