Conmutador KVM IP LCD ATEN KL1508AiM F 17" - consola rackmount de 8 puertos con acceso remoto

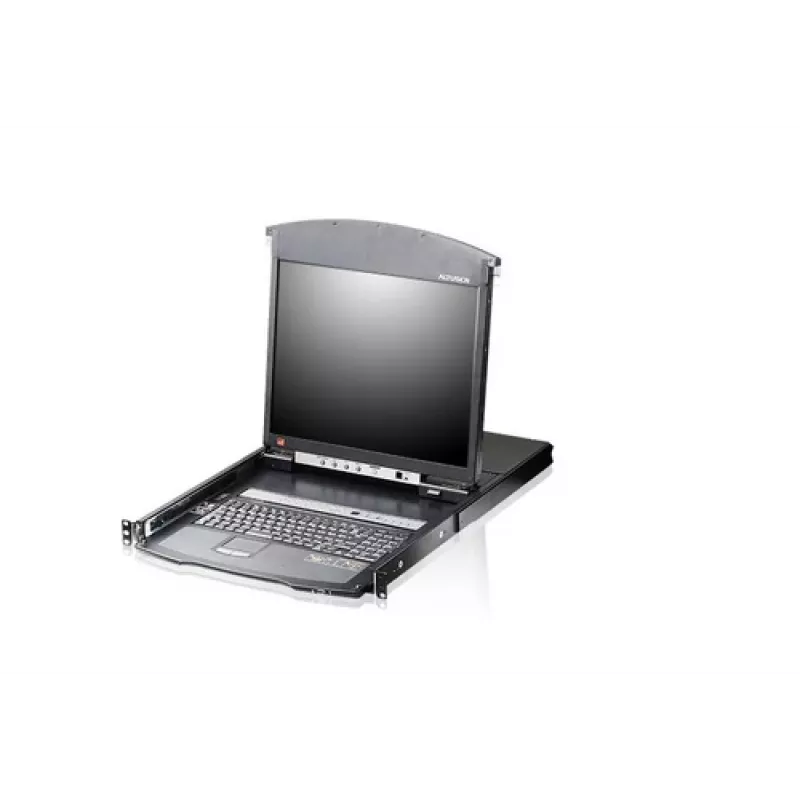

The ATEN KL1508AiM F integrates a 17-inch LCD monitor, keyboard, and touchpad into a 1U rack-mountable console, combined with IP-based remote access. This 8-port KVM switch allows direct local control of up to 8 servers and remote management over the network, making it a versatile solution for data centers and server rooms.

Highlights

• 8-port KVM switch with integrated 17" LCD console (43 cm viewable)
• IP-based remote access via web browser (HTML5) for out-of-band management
• Supports PS/2 and USB server connections (cables included)
• Rack-mountable 1U design with space-saving slide-out console
• Dual LAN ports for network redundancy and failover
• FIPS 140-2 compliant with TLS 1.2 and AES 256-bit encryption
• Daisy-chain up to 31 additional KVM switches for scalability

In daily use

The KL1508AiM F provides a consolidated control center for mixed IT environments. The local console offers a crisp 1280x1024 SXGA display, while remote operators can access servers securely from anywhere using a standard web browser. Virtual media support (USB 2.0) enables remote software installation and diagnostics. The KVM supports hot-plugging and BIOS-level access, ensuring seamless server maintenance.

Full specifications

• KVM Type: LCD IP KVM Switch
• Port Count: 8 KVM Ports
• LCD Panel Size: 17-inch (43.18 cm)
• LCD Resolution: 1280 x 1024 (SXGA)
• Form Factor: 1U Rack Mount
• Server Connectivity: PS/2, USB, VGA (via included KVM cables)
• Remote Access: TCP/IP, Web Browser (HTML5)
• Security: FIPS 140-2 compliant, TLS 1.2, AES 256-bit
• Virtual Media: Yes (USB 2.0)
• Daisy Chain: Up to 31 additional units
• Dual LAN: Yes (2x RJ-45)
• Keyboard/Mouse Emulation: PS/2 and USB
• On-Screen Display (OSD): Yes, multi-language
• Hot-Plugging: Yes
• BIOS-Level Access: Yes
• Power Consumption: 23.5W (max)
• Supported OS: Windows, Mac, Sun, Linux, FreeBSD

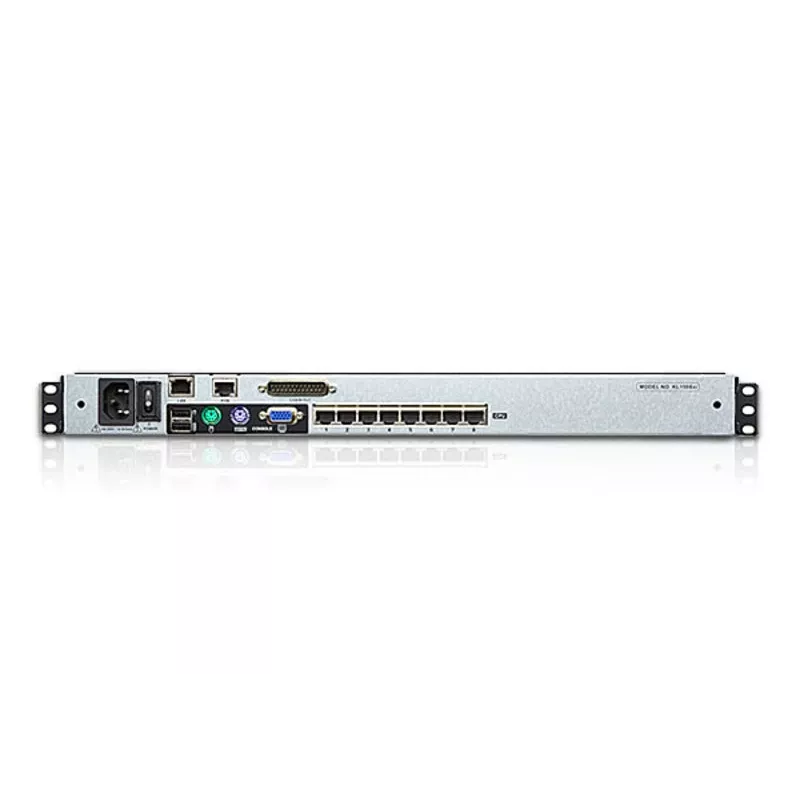

• Local Console Ports: 1x VGA, 1x USB/PS2 (SPHD)
• Remote Console Ports: 2x RJ-45 (LAN)

Final note

The ATEN KL1508AiM F is an ideal choice for IT administrators who need reliable, secure remote server management without sacrificing local console functionality. Its integrated LCD and IP capabilities streamline data center operations.
