Conmutador KVM Sedna SE-KVM-USB-22 gris

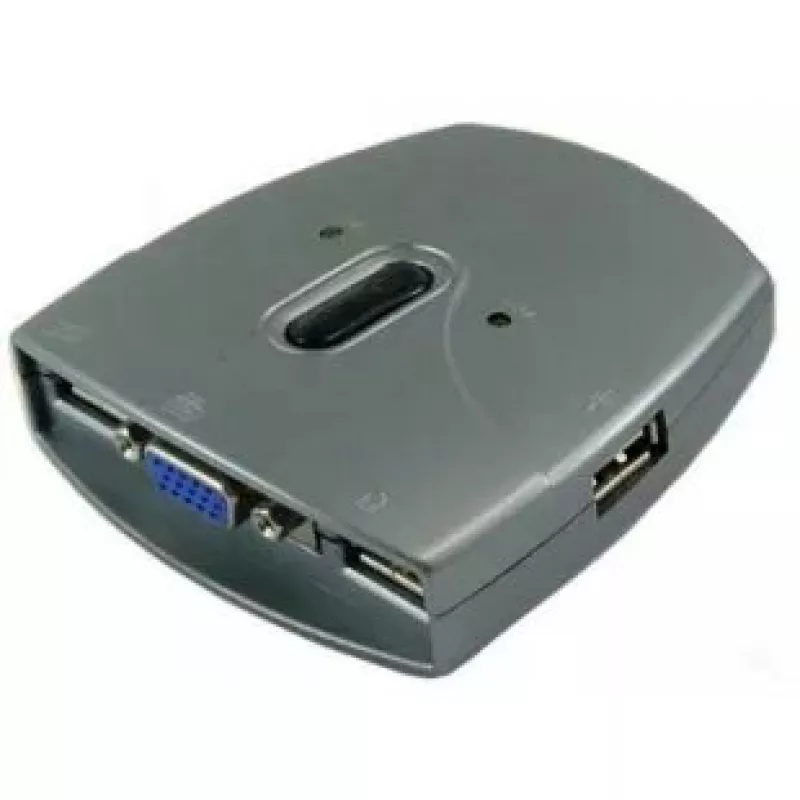

The Sedna SE-KVM-USB-22 Grey is a compact 2-port KVM switch that lets you control two computers using one USB keyboard, one USB mouse and a single VGA monitor. It supports VGA video output up to 1920 x 1440 and includes the required USB and VGA cables for straightforward setup. The unit is plug-and-play, hot-pluggable and compatible with Windows, macOS, Linux, FreeBSD and Sun workstations.

Advantages

This KVM switch provides easy control of two PCs from one USB console with both automatic and manual port selection (auto-scan interval configurable, 9 seconds default). USB 1.1/2.0 compatibility, keyboard emulation for BIOS-level boot reliability, an extra USB port for peripherals and an LED status display simplify operation and monitoring. Hot-pluggable design allows adding or removing computers without powering off the switch.

Suitable for

• Small offices or workstations that need to manage two computers with a single keyboard, mouse and monitor
• Home labs and IT maintenance stations requiring quick switching between systems
• Environments using VGA monitors and USB input devices

Key specifications

• Brand: Sedna
• Model: SE-KVM-USB-22
• Controlled computers: 2
• Keyboard / Mouse ports: USB type A
• Video output: VGA, up to 1920 x 1440 resolution
• Extra USB port: 1 (for other USB devices)
• Compatibility: Windows, macOS, Linux, FreeBSD, Sun
• Interface compatibility: USB 1.1 / 2.0
• Color: Grey

How to use

Connect the VGA monitor and USB keyboard/mouse to the KVM switch console ports, then connect the provided VGA and USB cables from the switch to each computer. Power on the computers; the switch supports keyboard emulation so systems can boot without manual input. Switch control between computers using the manual switch or enable auto-scan mode (default 9-second interval) to cycle between systems automatically.

Recommendations

For best video quality, use a good-quality VGA cable and ensure each PC’s video output is set to a compatible resolution not exceeding 1920 x 1440. When connecting USB devices to the extra USB port, verify device compatibility with USB 1.1/2.0 standards.
