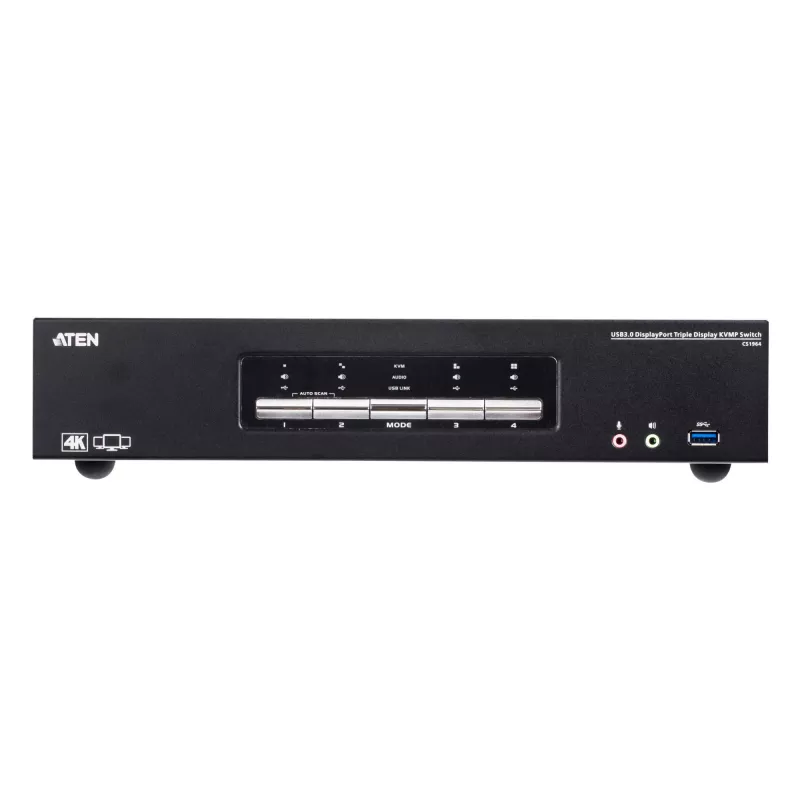

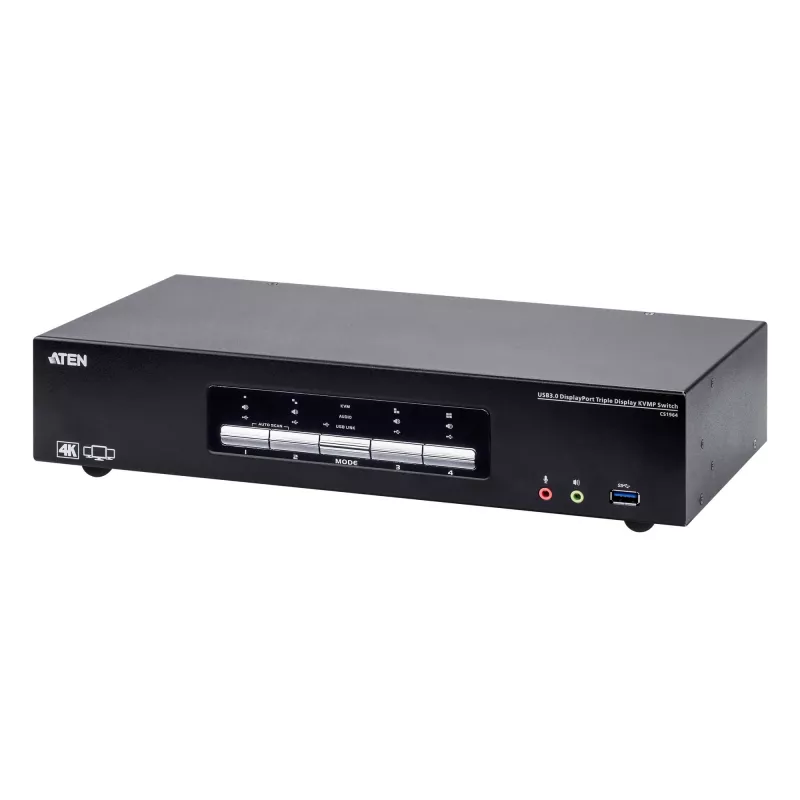

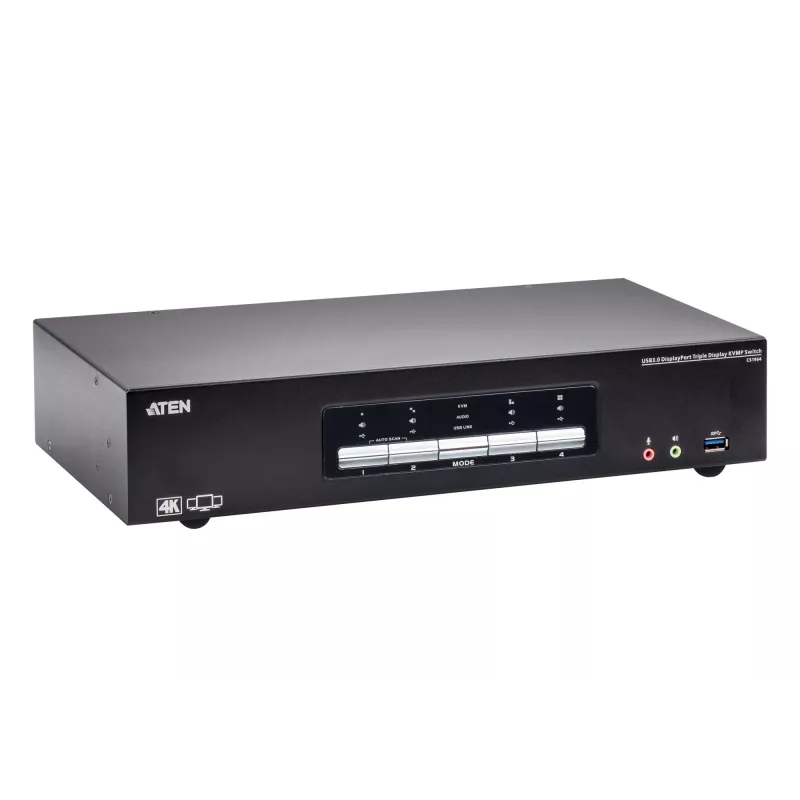

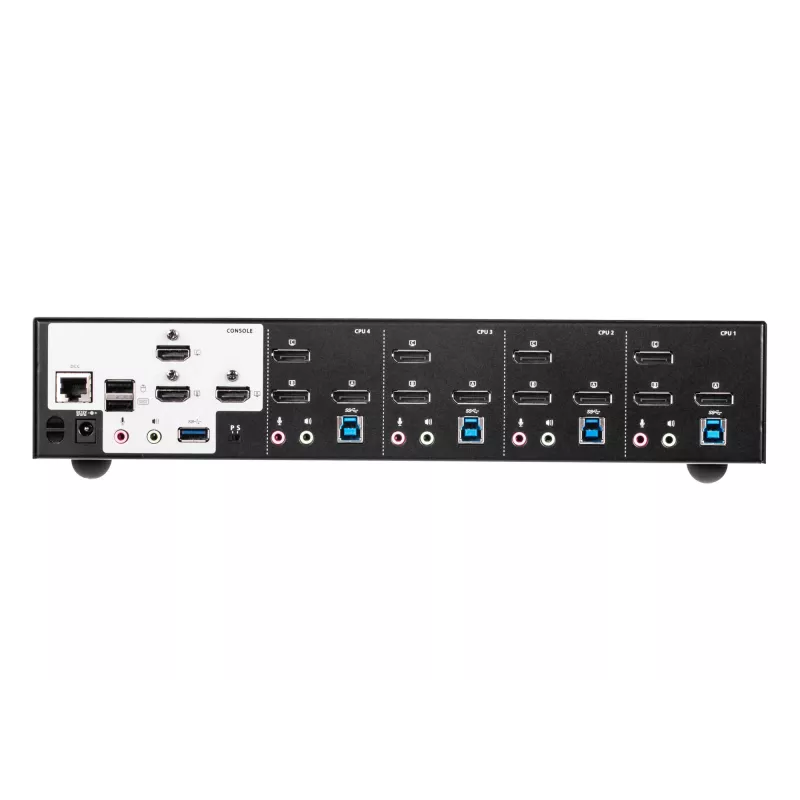

Conmutador KVMP ATEN 4P USB3.0 4K DP TRIPLE VIEW

The ATEN KVMP Switch 4P USB3.0 4K DP TRIPLE VIEW (CS1964-AT-G) lets you control up to four computers with a single keyboard and mouse while driving three 4K DisplayPort monitors. The unit supports up to 4096 x 2160 @ 60 Hz for each video output, provides USB 3.0 connectivity for peripherals, and is built in a compact metal housing (335 x 156 x 65.5 mm) with a net weight of 3.57 kg. The kit includes cables and a power adapter for connecting two computer ports out of four; additional cable sets are available separately to enable the remaining ports.

Advantages

The switch supports triple independent 4K DisplayPort outputs at 60 Hz, enabling high-resolution multi-monitor setups while sharing a single keyboard and mouse. USB 3.0 ports provide fast peripheral data transfer. A metal enclosure offers durable protection and stable operation. Included cable sets and a power adapter simplify initial installation for two computers; optional cable packs expand connectivity to all four systems if required.

Suitable for

• Workstations requiring simultaneous use of three 4K displays
• Control rooms and monitoring stations with multiple PCs
• Multimedia editing and content creation workflows
• Office environments where one keyboard/mouse must serve multiple computers

Key specifications

• Model: CS1964-AT-G
• Brand: ATEN
• Controls up to: 4 computers
• Video interface: DisplayPort 1.2
• Maximum resolution: 4096 x 2160 @ 60 Hz
• USB: USB 3.0 for peripherals (keyboard/mouse)
• Dimensions: 335 x 156 x 65.5 mm
• Weight: 3.57 kg
• Colour: Black
• Power consumption: 15.49 W
• Package includes: 4-port KVMP switch, cable sets for two computer ports (DisplayPort, USB 3.0, audio), power adapter, power cable, user instructions

How to use

Connect the included DisplayPort, USB 3.0, and audio cables between the KVMP switch and each of the two computers provided in the kit. Attach three DisplayPort monitors to the video outputs on the switch and plug in a USB keyboard and mouse to the front or rear USB ports. Connect the power adapter and power cable to the switch, then power on the connected computers. Use the front-panel buttons, hotkeys, or on-screen display (if supported) to switch control among connected computers and assign displays as needed.

Recommendations

For full four-computer connectivity, purchase the optional cable set (2L-7D02UDPX6). Use DisplayPort 1.2 certified cables and USB 3.0 cables for reliable 4K@60Hz performance; ensure all connected monitors and graphics outputs support the target resolution and refresh rate.
