Consola KVM Digitus 17 pulgadas HD LCD 16 puertos HDMI teclado alemán

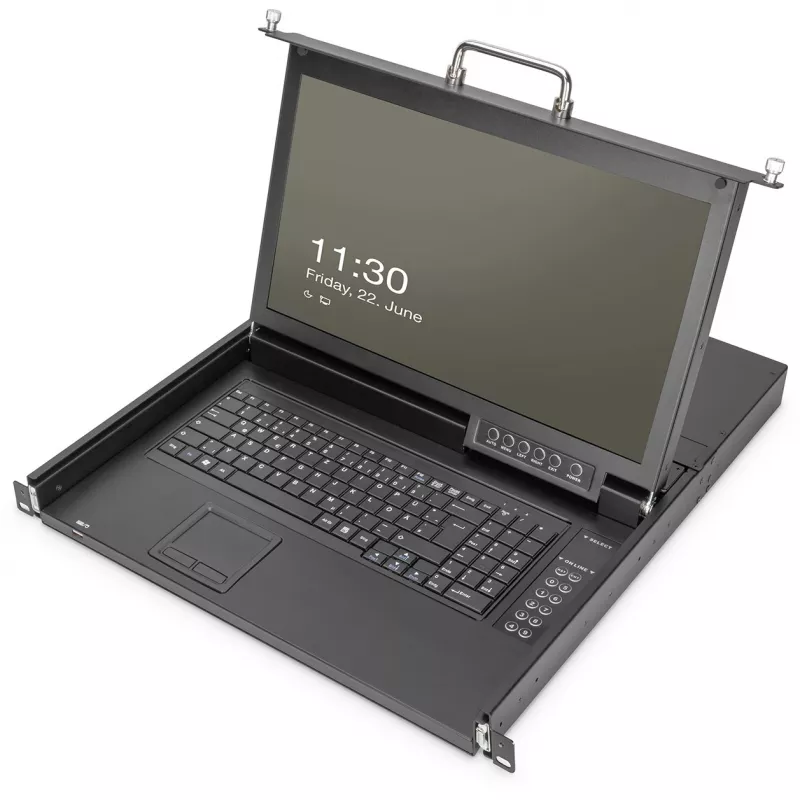

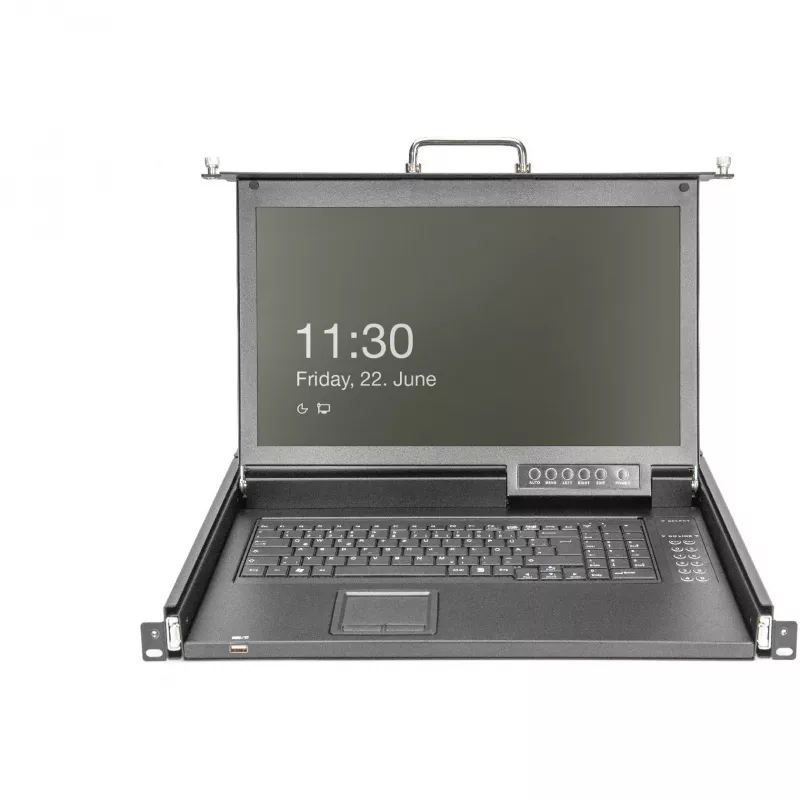

The DIGITUS 17" HD TFT console is a modular 1U rackmount unit that combines a 17" 1920x1080 (60 Hz) monitor, a 16‑port HDMI KVM switch and an integrated mouse touchpad with two function buttons. Designed for space‑saving installation in server racks, the console supports 16.7 million colors, a 1000:1 contrast ratio and HDMI interface connectivity. Its modular design allows upgrades and retrofitting of additional modules to match changing data‑center requirements.

Advantages

The compact 1U housing (black RAL 9005) saves rack space while providing centralised control of up to 16 HDMI-connected servers. The built-in 16‑port HDMI KVM switch simplifies cable management and reduces the need for separate devices. A German QWERTZ keyboard layout (as indicated in the product title) and an integrated touchpad with two function buttons enable direct, efficient interaction. The modular concept increases longevity by allowing later expansion or replacement of individual components.

Suitable for

• Data centres and server rooms with limited rack space
• IT administrators managing multiple HDMI-equipped servers
• Environments that require a compact, rackmount KVM solution

Key specifications

• Display resolution: 1920 x 1080 at 60 Hz
• Contrast ratio: 1000:1
• Colors supported: 16.7 million
• Integrated KVM: 16‑port HDMI switch
• Video interface: HDMI

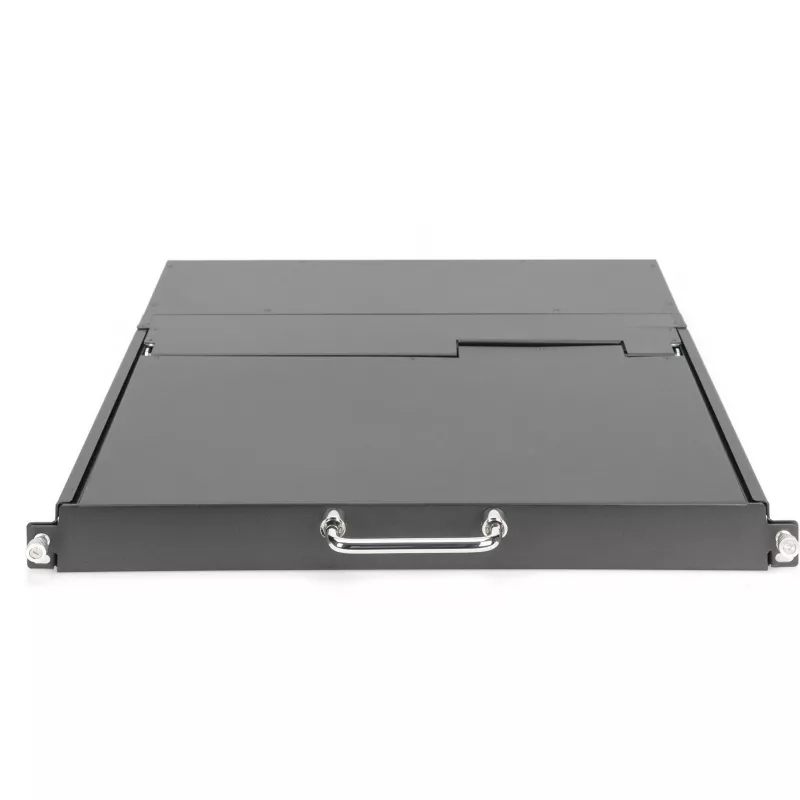

• Form factor: 1U rackmount, black (RAL 9005)
• Mouse: touchpad with two function buttons
• Dimensions (W×H×D): approx. 509 × 45 × 445 mm
• Gross/package weight: approx. 19.1–19.15 kg

How to use

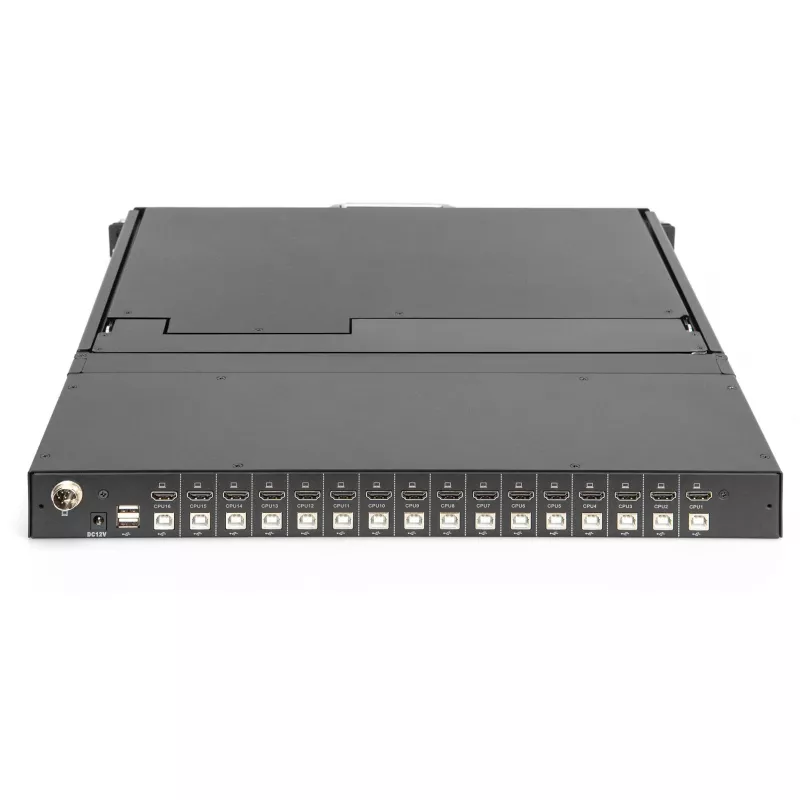

Install the console into a standard 19" rack occupying 1U of space. Connect HDMI cables from the servers to the console’s 16 HDMI inputs, and connect power and any required peripheral cables. Use the built-in keyboard and touchpad to switch between servers via the integrated KVM controls. Configure or expand the console by adding compatible modules according to the DIGITUS modular options.

Recommendations

Place the console in a well-ventilated rack position and secure all HDMI connections. For optimal display performance, use high-quality HDMI cables and ensure connected servers output at 1920×1080@60Hz. When planning rack layouts, account for the 1U height and the gross package weight during installation.
