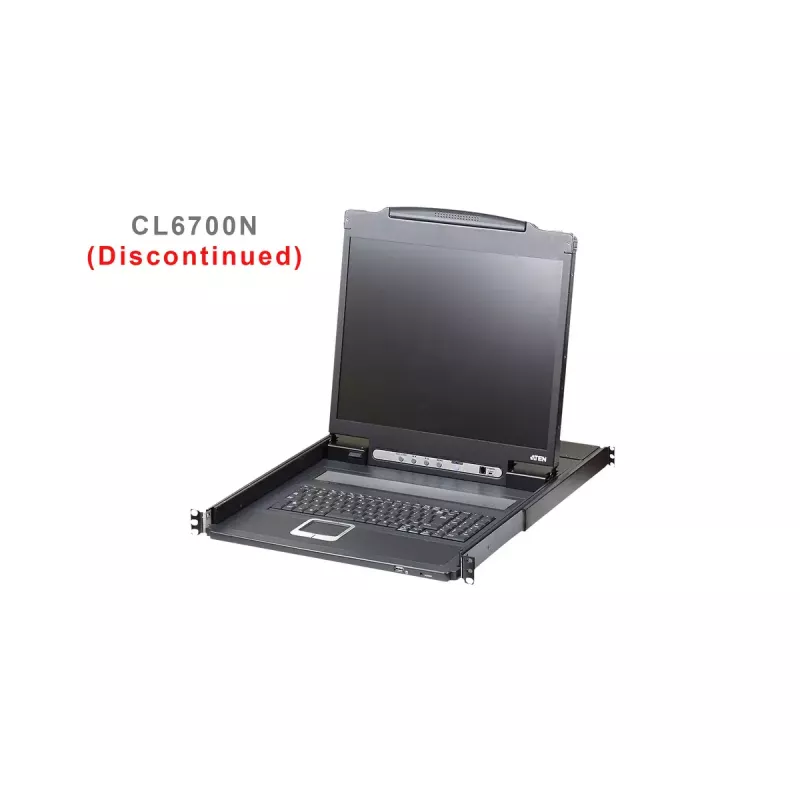

Consola LCD ATEN 17,3 pulgadas panorámica DVI/HDMI Full HD

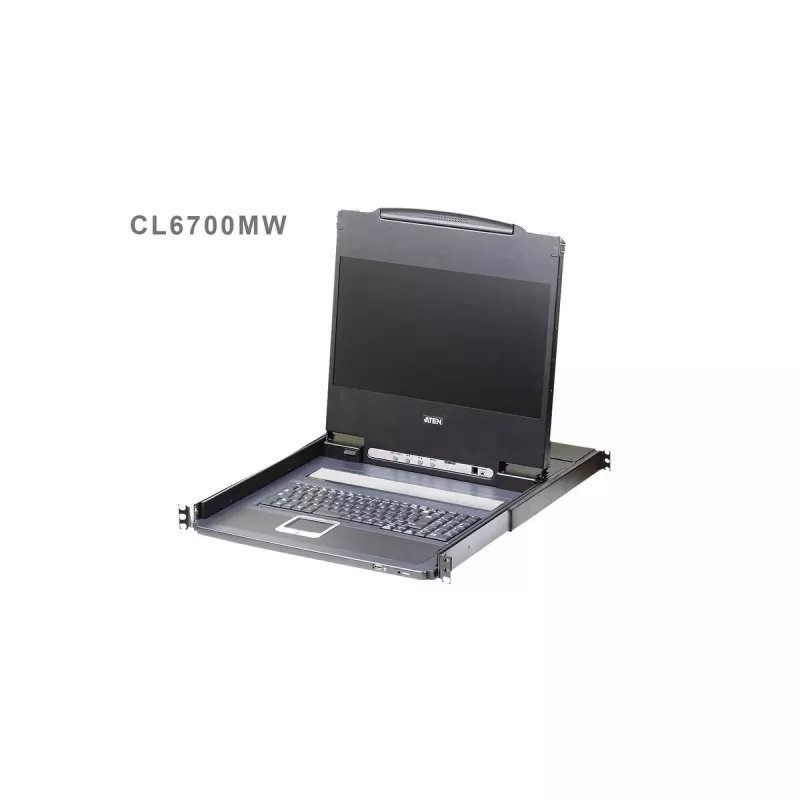

The CL6700 LCD console integrates a 17.3" LED-backlit widescreen panel, full keyboard and touchpad in a 1U rack-mountable sliding housing with audio support. Designed to provide front-end access to compatible KVM switches, the module closes flat and slides into the rack, saving space in data centers and server rooms. Kit contents include the CL6700 console with standard rack-mount kit, a DVI-D/USB/Audio KVM cable (1.8 m), a power cord, a firmware upgrade cable and user instructions. The unit supports DVI-D, HDMI and VGA inputs and offers Full HD 1920 x 1080 resolution with AC power input 100–240 V.

Advantages

The ATEN 17.3" widescreen LCD console provides clear Full HD visuals and a compact 1U form factor for efficient rack use. Integrated keyboard and touchpad reduce the need for separate peripherals while the sliding housing allows quick access to multiple servers. Multiple video input options (DVI-D, HDMI, VGA) and USB peripheral support ensure compatibility with various systems. The metal casing and included rack-mount kit provide durable, tool-free installation in professional environments.

Suitable for (tasks / use cases)

• Server management in data centers and server rooms
• Front-end access to KVM switches for IT maintenance
• Space-constrained rack environments requiring a 1U console
• Environments needing Full HD monitoring and multimedia audio support

Key specifications

• Panel size: 17.3" widescreen LED-backlit LCD
• Resolution: Full HD 1920 x 1080

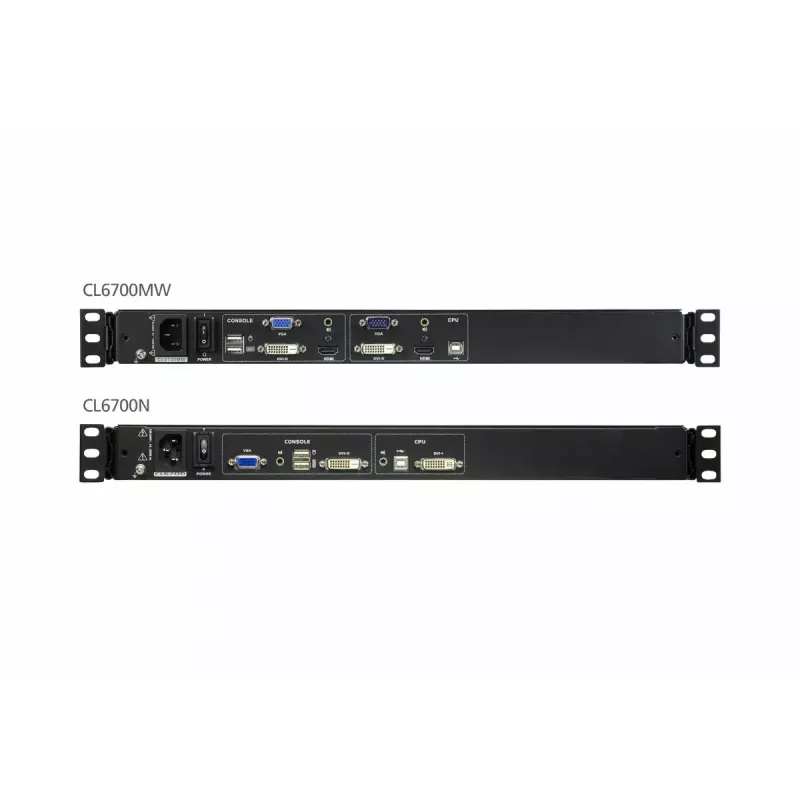

• Video ports: DVI-D, HDMI, VGA
• Peripheral ports: USB keyboard/mouse support
• Form factor: 1U rack-mountable sliding console with metal housing
• Power: AC 100–240 V
• Included accessories: KVM cable (DVI-D/USB/Audio, 1.8 m), power cord, firmware upgrade cable, rack-mount kit, user instructions

How to use

Install the CL6700 module into a 1U rack slot using the supplied rack-mount kit and secure it according to the instructions. Connect the console to a compatible KVM switch or directly to a host using the provided DVI-D/USB/Audio cable; use HDMI or VGA cabling if required by the host. Connect the power cord to an appropriate AC source (100–240 V). Slide the module out to access the keyboard, touchpad and display. Use standard keyboard and mouse controls to operate connected systems and switch video input sources as needed.

Recommendations

For reliable operation, use the supplied KVM cable and ensure firmware is updated via the included firmware upgrade cable. Keep ventilation clear around the 1U unit and follow rack weight and mounting guidelines. Use compatible KVM switches for full functionality of hotkey and switching features.
