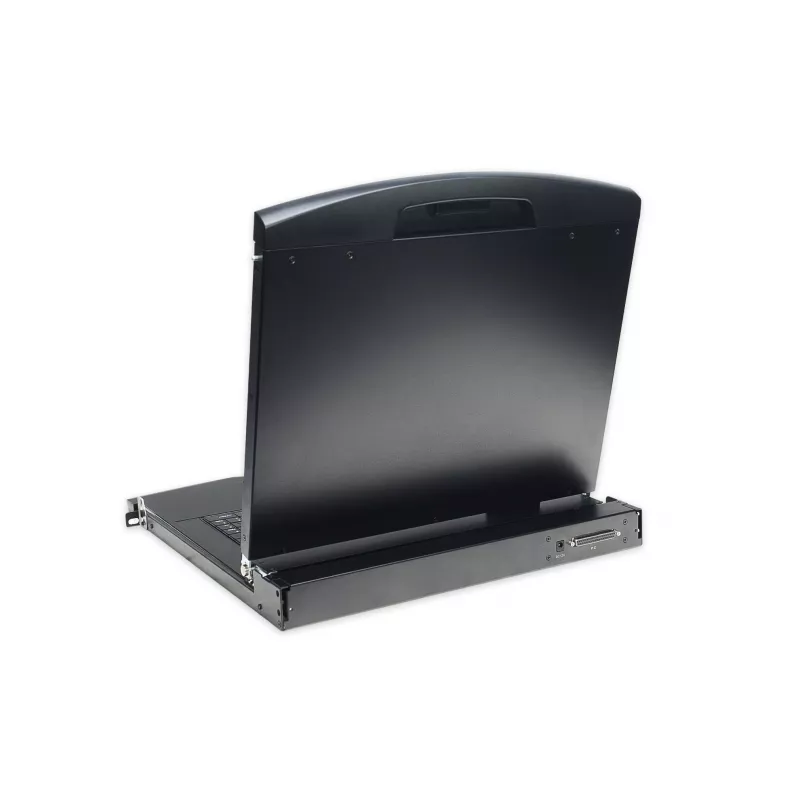

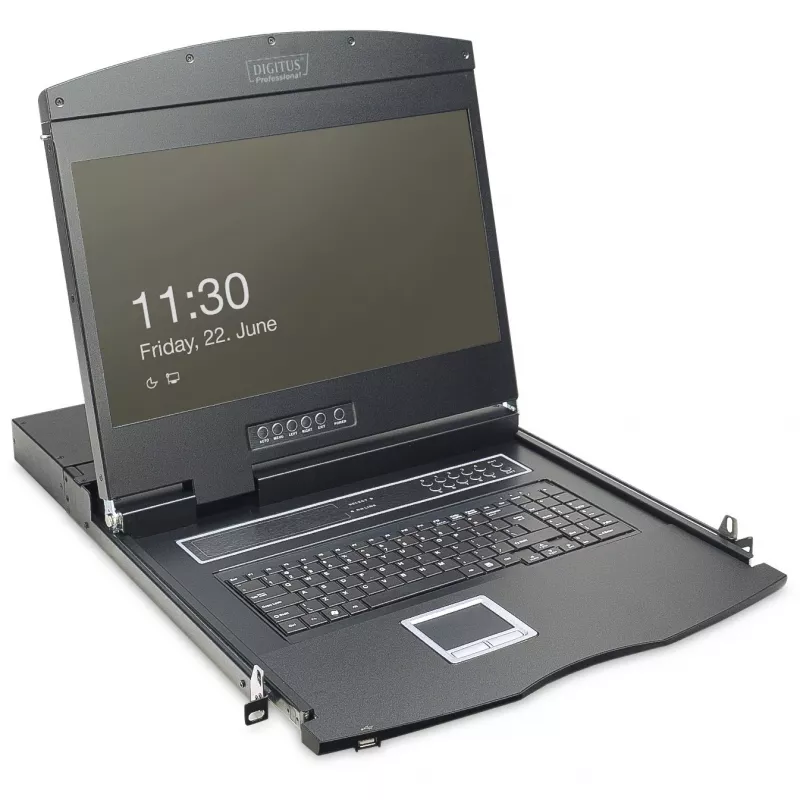

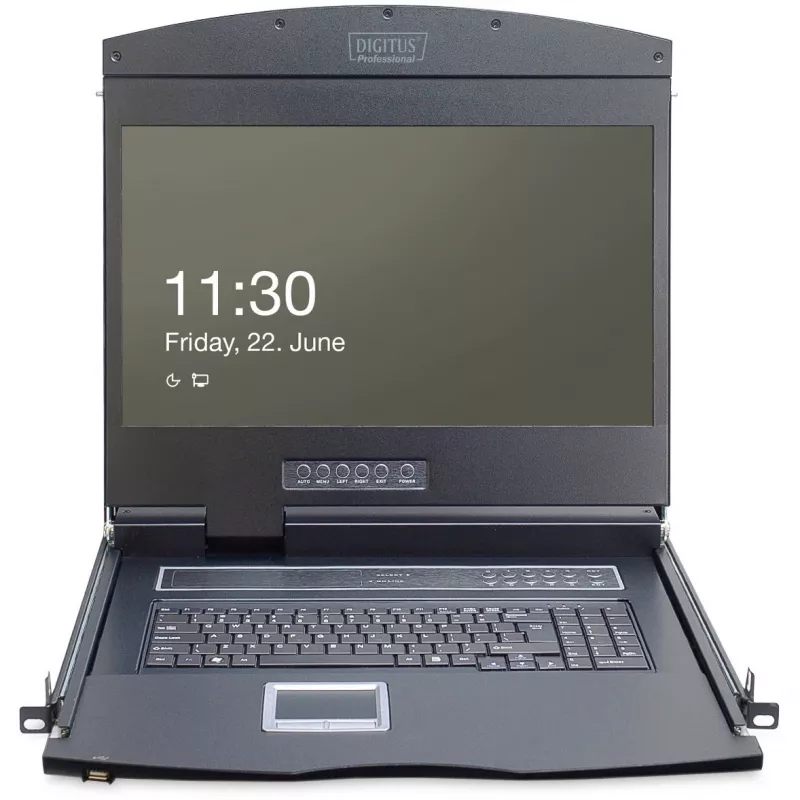

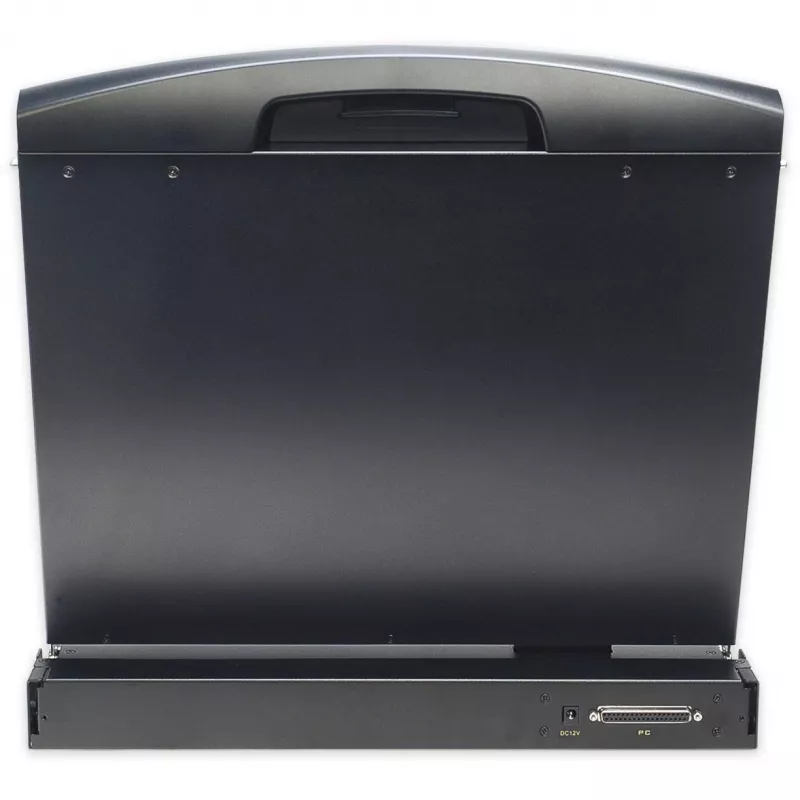

Consola modular Digitus DS-72211 con TFT de 19 pulgadas y touchpad

The DIGITUS DS-72211 modular console with 19" TFT and touchpad provides flexible server-farm administration in a space-saving 1U housing. Its modular design allows individual configuration and later upgrades or conversions; the console includes a 19" monitor and touchpad, while a keyboard, KVM module and suitable cables are required for full operation. The compact dimensions (380 mm × 45 mm × 695 mm) and black finish make it suitable for dense rack installations.

Advantages

The modular design enables multiple configuration options and easy upgrades, delivering long-term applicability and investment protection. The 19" TFT panel offers a 1366 × 768 resolution and a 1000:1 contrast ratio for clear on-screen display. The 1U height and compact footprint save rack space. The console ships with a KVM cable and is available in a complete accessory range to match different deployment scenarios.

Suitable for

• Rack-mounted server rooms and data centers
• IT cabinets with limited rack space
• Environments requiring modular, upgradeable console solutions

Key specifications

• Model: DIGITUS DS-72211
• Display: 19" TFT, 1366 × 768 pixels
• Contrast ratio: 1000:1
• Dimensions (W × H × D): 380 × 45 × 695 mm
• Design height: 1U
• Weight (product): 12.54 kg; package weight: 23.4 kg
• Colour: Black
• Includes: touchpad; KVM cable included in package

How to use

Install the console into a 19" rack occupying 1U of space. Connect the console’s KVM cable to the server or KVM switch and attach a compatible keyboard and any additional KVM module required for your setup. Power the rack and configure display and input settings as needed. Because the unit is modular, you can add or replace modules and cabling to adapt the console to changing server-room requirements.

Recommendations

For reliable operation, use the console in standard rack environments with adequate ventilation and stable power. Select compatible KVM modules and cables from the DIGITUS accessory range to ensure full functionality and maintainability.
