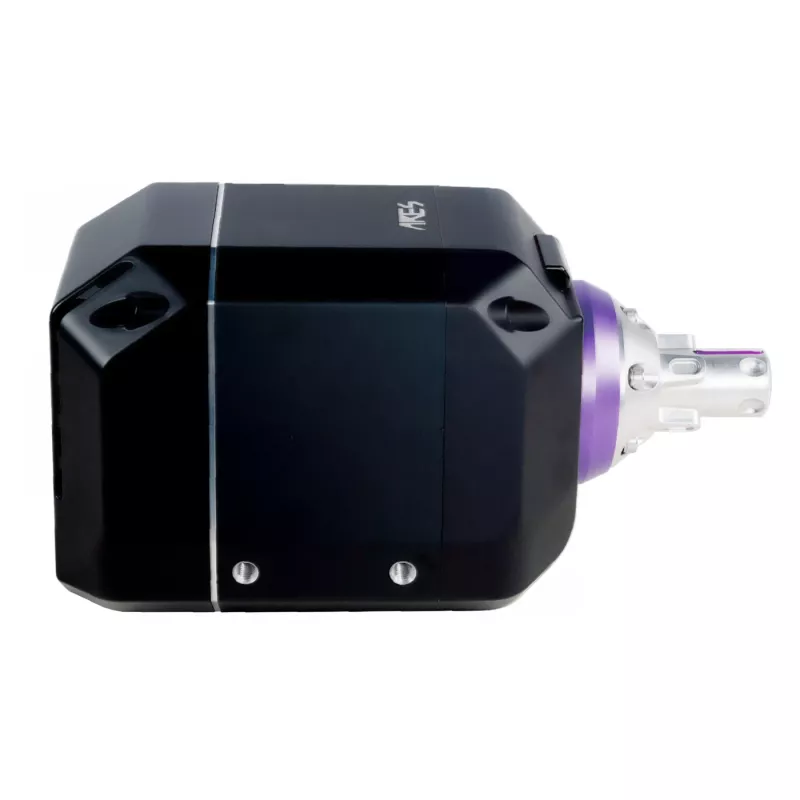

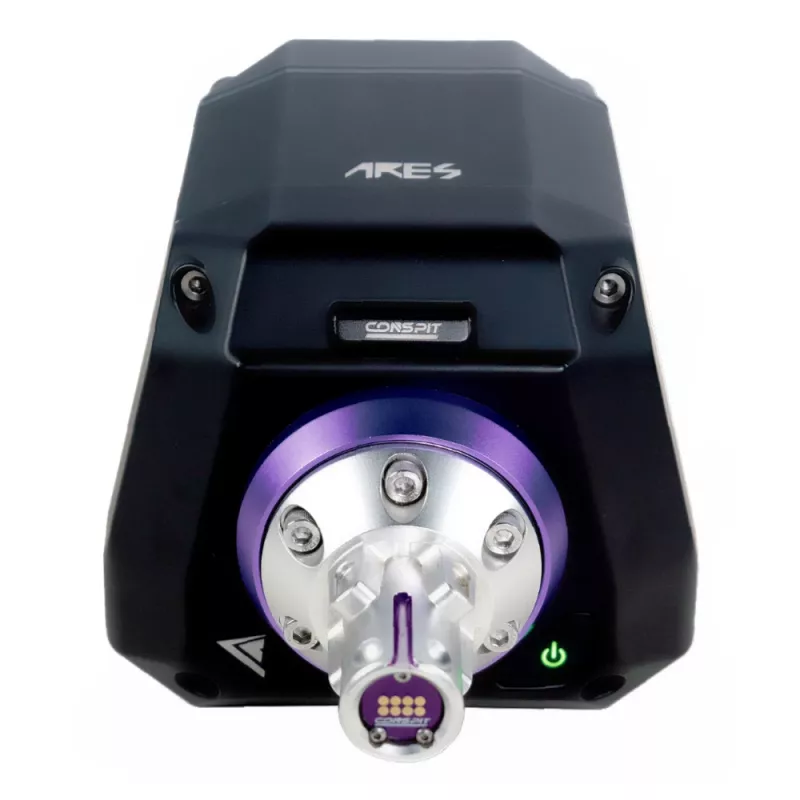

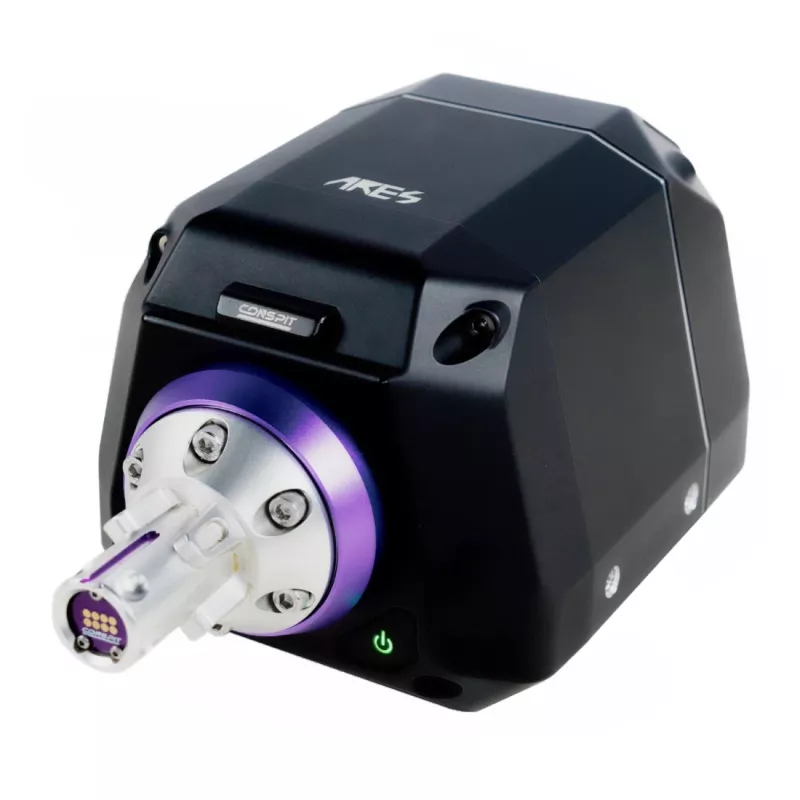

Conspit Ares Direct Drive Wheelbase (12Nm)

The Conspit Ares Direct Drive Wheelbase delivers 12 Nm of peak torque for an immersive sim racing experience. Built with a high-precision direct drive servo motor and 22-bit encoder, it offers exceptional force feedback fidelity and low latency. The chassis is crafted from CNC machined aviation-grade aluminum alloy, ensuring durability and rigidity. Featuring a proprietary quick release system (70mm PCD compatible), it allows easy wheel changes. Passive cooling ensures silent operation, while the external AC adapter provides reliable power. Compatible with PC (Windows) via USB-B, the wheelbase integrates seamlessly with Conspit SimPro Manager software for customization.

Advantages

High torque output, precise force feedback, robust construction, and quiet operation make the Ares an excellent choice for serious sim racers.

Suitable for

• Sim racing enthusiasts seeking a high-performance direct drive wheelbase
• Users who prioritize force feedback detail and low latency
• Racers who want a durable, aviation-grade aluminum chassis

Key specifications

• Peak Torque: 12 Nm
• Motor Type: Direct Drive Servo Motor
• Encoder Resolution: 262144 PPR (22-bit)
• Platform Compatibility: PC (Windows)
• Connectivity: USB-B to PC
• Mounting Options: Front & Bottom M6 Threaded Holes
• Chassis Material: CNC Machined Aviation-Grade Aluminum Alloy
• Quick Release System: Conspit Proprietary Quick Release (70mm PCD compatible)
• Power Supply: External AC Adapter
• Power Adapter Input: 100-240V AC, 50/60Hz
• Power Adapter Output: 24V DC
• Cooling System: Passive Cooling
• Software Ecosystem: Conspit SimPro Manager
• USB Polling Rate: 1000 Hz
• Safety Protections: Over-current, Over-voltage, Over-temperature

Recommendations

For optimal performance, pair the Ares wheelbase with a compatible steering wheel and a sturdy sim rig. Ensure your PC meets the system requirements for Conspit SimPro Manager.
