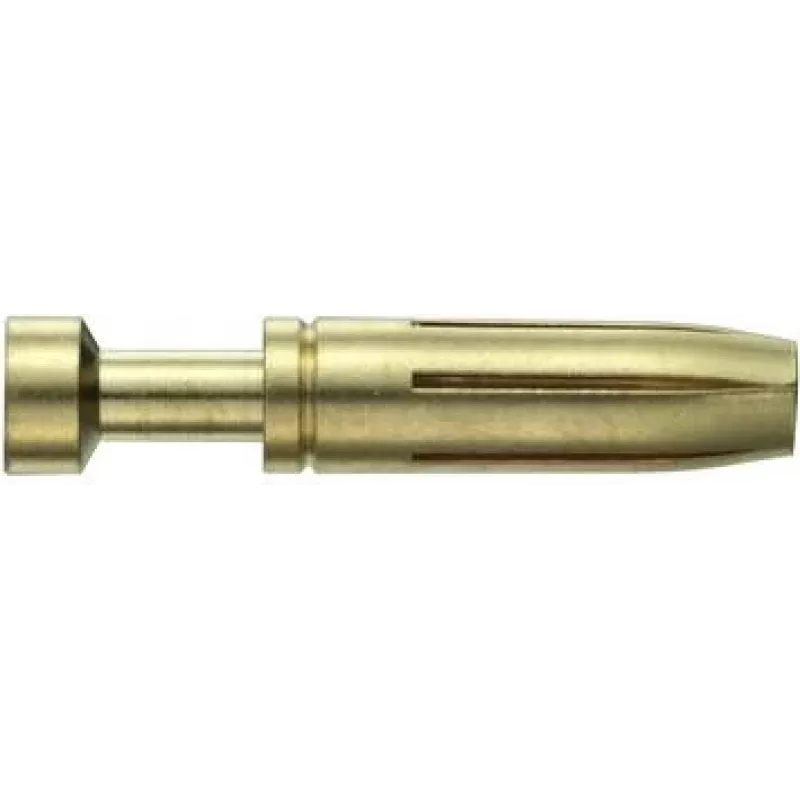

Contacto hembra Harting 09330006215, inserto de contactos individual para conector industrial

Harting socket contact 09330006215 is a single-piece contact insert engineered for use in compatible industrial connectors. Designed to provide a reliable conductive interface within connector housings, this socket contact is intended for replacement or assembly in systems that require Harting-compatible contacts. The component fits into the corresponding insert cavity of multi-pole connectors and performs the electrical mating function between plug and socket elements in industrial environments.

Advantages

The socket contact is manufactured to industry-grade tolerances to ensure consistent electrical conductivity and mechanical fit. As a single contact insert, it simplifies maintenance and replacement of individual contacts without the need to change entire connector modules. The design supports secure retention in connector inserts and stable mating cycles, which helps maintain connection integrity under repeated use.

Suitable for

• Repair and replacement of worn or damaged contacts in compatible industrial connectors
• Assembly of multi-pole connector inserts where single-contact installation is required
• Factory wiring, control cabinets, and industrial equipment with Harting-compatible connector systems
• Environments requiring predictable electrical contact performance and straightforward servicing

Key specifications

• Contact type: socket (female) single-piece insert
• Intended application: industrial connector contact insert
• Material characteristics: conductive metal contact with retention geometry suitable for connector housing (manufacturer standard materials and plating)
• Mounting: designed for insertion into compatible connector insert cavities
• Function: provides electrical mating between plug and socket elements in multi-pole connectors

How to use

Identify the correct cavity in the connector insert that corresponds to the required contact position. Ensure the connector housing and wiring are de-energized before any work. Align the socket contact with the insert opening and press it into place until the retention feature engages. For replacement, extract the existing contact using the manufacturer-recommended extraction tool, then install the new socket contact by pressing it into the freed cavity. Verify correct seating and test continuity before re-energizing the circuit.

Recommendations

Handle contacts with care to avoid contamination of the mating surfaces. Use appropriate hand tools or insertion/extraction tools recommended for Harting-compatible contacts. Confirm compatibility with the specific connector insert type and observe applicable safety procedures and electrical standards during installation and maintenance.
