Contador de energía Finder 7E.56.8.400.0010 Trifásico 3Ph 230V 50Hz

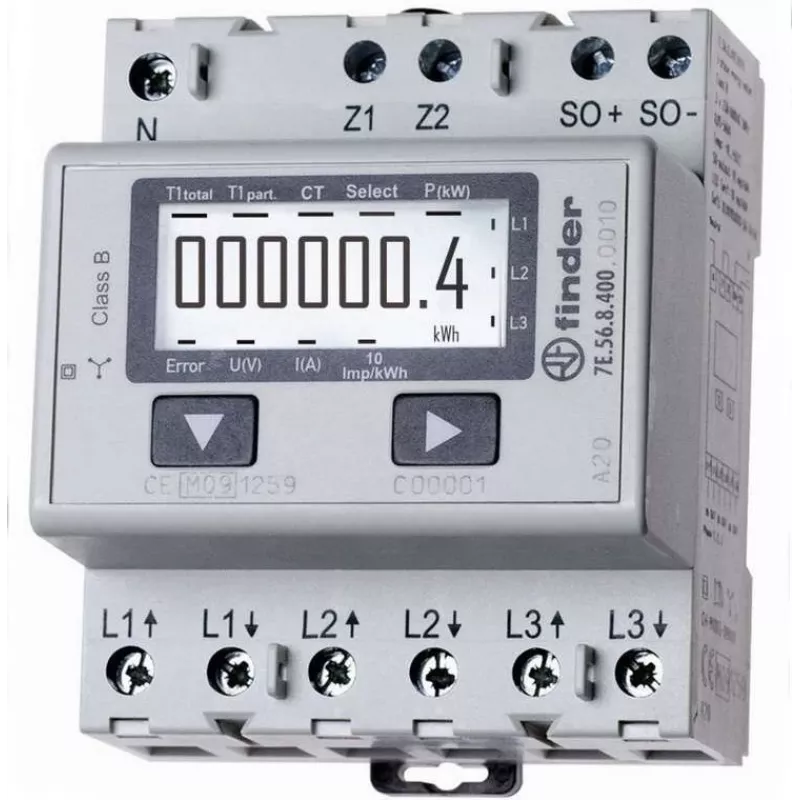

Finder 7E.56.8.400.0010 is a three-phase electronic energy meter for monitoring active energy and electrical parameters in 3Ph systems with 230 V, 50 Hz. The meter is MID-certified for billing purposes and supports current transformer (CT) connection ratios up to 1500:5. It displays cumulative energy (kWh) and instantaneous values for voltage, current and active power, and is designed for DIN-rail panel mounting in commercial or industrial switchboards.

Advantages

The energy meter is MID-approved (suitable for revenue metering) and meets EN 62053-21 and EN 50470-3 standards with accuracy class 1 / B. It accepts a wide range of CT ratios (from 5:5 up to 1500:5), has a compact 70 mm housing, an LCD display with backlight and a sealed, impact-resistant enclosure. The device includes a pulse output (S0) and is suitable for direct integration into distribution panels with DIN-rail mounting.

Suitable for

• Three-phase energy monitoring in commercial or industrial installations
• Revenue metering with CT secondary connections up to 1500 A
• Panel or DIN-rail mounting in distribution boards

Key specifications

• Brand: Finder
• Model / MPN: 7E.56.8.400.0010
• Supply: 3Ph 230 V, 50 Hz
• Display: LCD, range 0 - 999999.9 kWh
• Measurement: Active energy (kWh), voltage (V), current (A), active power (kW)
• CT connection: configurable ratios (5:5; 50:5; 100:5; 150:5; 200:5; 250:5; 300:5; 400:5; 500:5; 600:5; 750:5; 1000:5; 1250:5; 1500:5)
• Accuracy: Class 1 / B
• Standards: EN 62053-21, EN 50470-3, MID-approved
• Starting current: 0.01 A
• Width: 70 mm
• Outputs: S0 (pulse)
• Enclosure: sealed, impact-resistant, for DIN-rail mounting
• EAN: 4016138601428

How to use

Mount the meter on a DIN-rail inside the distribution panel and configure the CT ratio to match the installed current transformers. Connect the CT secondary and the supply according to the wiring diagram provided by the manufacturer. After powering the device, verify the LCD shows voltage, current and power readings and that the cumulative kWh counter increments under load. Use the S0 pulse output for remote energy monitoring or integration with building management systems where required.

Recommendations

For billing accuracy, ensure CTs are correctly selected and installed, wiring is tight and the meter is installed in a dry, vibration-free panel. Do not exceed the specified CT primary current; follow local installation standards and MID rules when using the meter for revenue metering.
