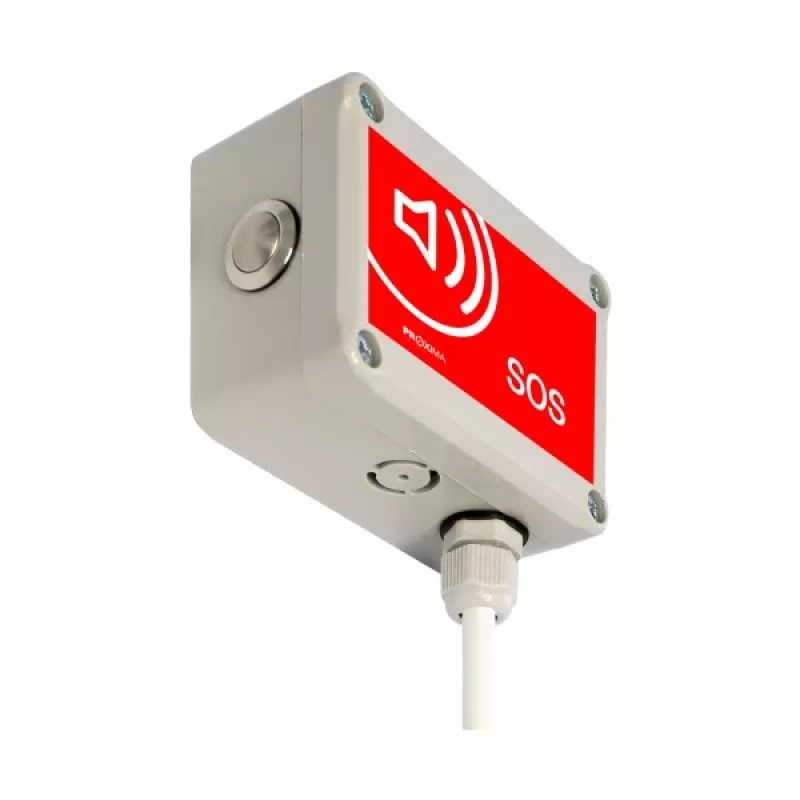

Control de apertura de emergencia PROXIMA SOS

The Emergency Opening Controller PROXIMA SOS is a reliable and versatile device designed for emergency opening of gates, garage doors, barriers, and other access control systems. It allows activation via an external normally open (NO) button or switch, providing a potential-free relay output that can be configured as normally open (NO) or normally closed (NC). The controller supports both monostable (pulse) and bistable (latch) operating modes, making it suitable for a wide range of applications. With a wide power supply range of 12-24V AC/DC and low current consumption of less than 20mA, it is energy-efficient and easy to integrate. The device features a clear LED status indicator and screw terminals for secure connections. Housed in a durable plastic enclosure with IP20 protection, it is designed for internal mounting inside control panels or junction boxes.

Advantages

Universal compatibility with systems accepting NO/NC inputs, selectable relay contact configuration, and flexible operating modes ensure adaptability to various automation needs. The compact design and low power consumption make it ideal for both new installations and retrofits.

Suitable for

• Gate automation systems
• Garage doors
• Barriers
• Access control systems
• Emergency opening applications

Key specifications

• Product Type: Emergency Opening Controller
• Activation Method: External Normally Open (NO) Button/Switch
• Output Type: Potential-free Relay Contact
• Relay Contact Configuration: Normally Open (NO) / Normally Closed (NC) selectable
• Operating Mode: Monostable (Pulse) or Bistable (Latch)
• Power Supply: 12-24V AC/DC
• Current Consumption: < 20mA
• Status Indication: LED Indicator
• Connection Type: Screw Terminals
• Operating Temperature Range: -20°C to +55°C
• Protection Rating: IP20
• Relay Contact Rating: 1A / 30V DC
• Housing Material: Plastic
• Mounting: Internal (e.g., inside control panel or junction box)

Recommendations

For optimal performance, ensure the external button or switch is rated for the application and that the power supply is within the specified range. The controller should be installed by a qualified professional following local electrical codes.
