Control de riego RainPoint HTV107B+HWG009WB 1 zona control por app

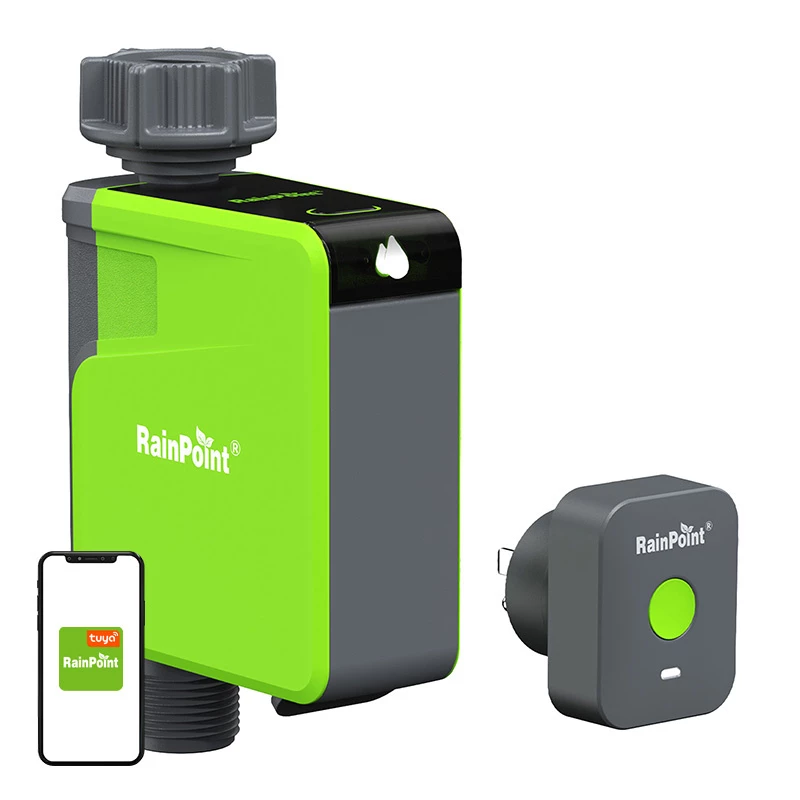

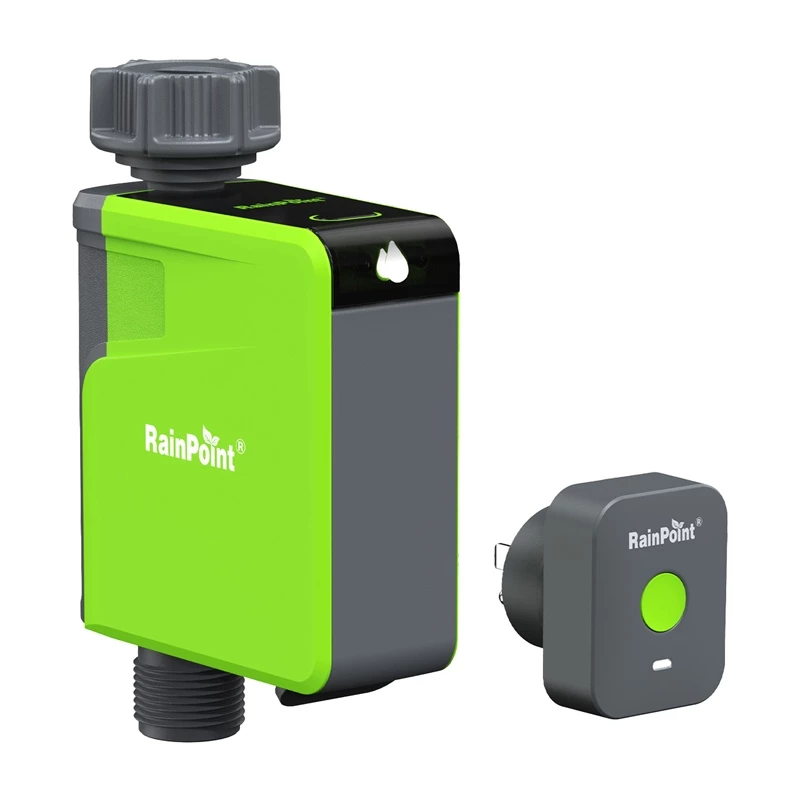

RainPoint HTV107B+HWG009WB is a 1‑zone irrigation controller with app control that enables remote scheduling and weather‑aware watering for a single garden or lawn zone. The controller connects to the RainPoint Tuya app and a supplied smart hub to adjust watering times based on current weather, pause irrigation when rain is expected, and let you manage schedules from your smartphone. The unit features a waterproof IP54 housing, inlet filter, LED timer button and supports up to six individual schedules for precise control.

Advantages

The device synchronises with the RainPoint Tuya app to use live weather data and suggest optimal watering times, reducing water use and preventing overwatering. Bluetooth 5.0 pairing via the included smart hub allows remote operation from anywhere within range. Two operating modes — Irrigation Mode and Interval Mode — plus a rain delay function (24/48/72 hours) and up to six independent schedules provide flexible watering options. Durable, weatherproof construction and standard 1" or 3/4" thread compatibility simplify installation and everyday use.

Suitable for

• Small gardens and single lawn zones
• Flower beds and delicate plants requiring interval watering
• Home users who want app‑based remote irrigation control
• Situations where weather‑adjusted watering is desired

Key specifications

• Manufacturer: RainPoint
• Model: HTV107B+HWG009WB
• Zones: 1
• Compatible threads: 1" or 3/4" internal threads, 3/4" external threads
• Water pressure: 0.5–8 bar
• Watering time: 1 minute to 12 hours
• Waterproof level: IP54
• Working temperature: 3°C–50°C
• Wireless connectivity: Bluetooth 5.0
• Dedicated app: RainPoint Tuya
• Wireless range: up to 60 m (depends on obstacles)
• Power supply: 4 × AA batteries (not included in kit)

How to use

Install the controller on the garden valve and connect a hose using the compatible 1" or 3/4" thread. Insert four AA batteries to power the unit. Pair the controller with the supplied smart hub via Bluetooth and follow the RainPoint Tuya app instructions to add the device and configure schedules. Choose Irrigation Mode for standard timed watering or Interval Mode for repeated short cycles. Use the timer button and LED on the unit for manual starts or status checks. When rain is forecast, enable the rain delay to pause irrigation for 24, 48 or 72 hours.

Recommendations

For reliable operation, install the controller in a sheltered location and clean the inlet filter periodically. Check battery level regularly and replace all batteries at once to maintain consistent performance. Keep the smart hub within recommended range for stable Bluetooth connection.
