Control de zonas Omnitronic ELA 6S 10W – control ELA de 6 zonas, potencia de salida 10 W

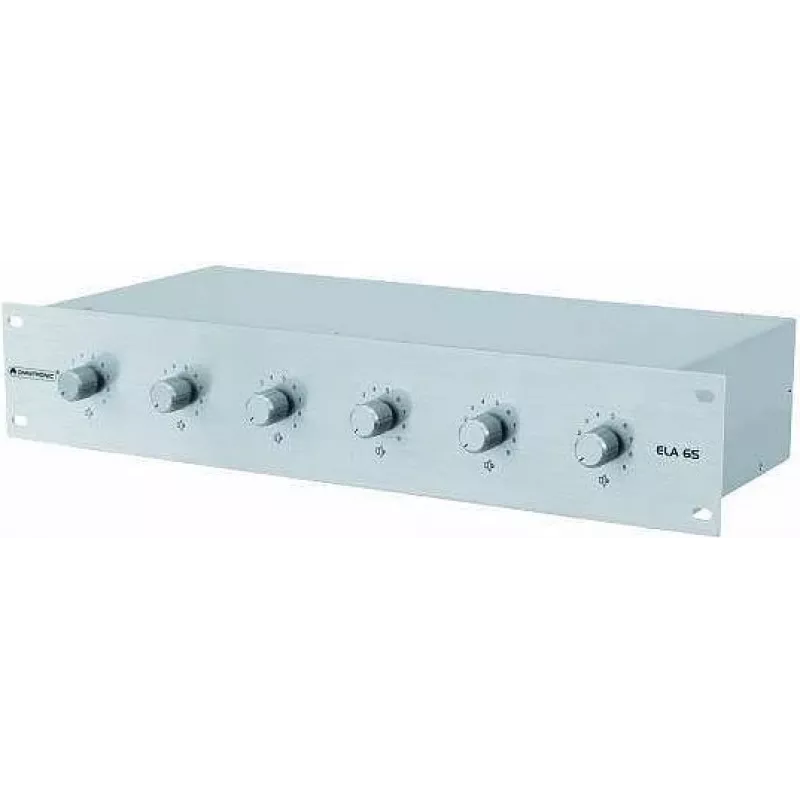

Omnitronic ELA 6S 10W is a six-zone public address controller with a 10 W output designed to route audio signals to separate areas. It provides independent or simultaneous playback across six zones, enabling controlled distribution of paging, background music and announcements in small venues, offices or retail spaces. The compact unit is intended as a central control point for simple multi-zone audio setups where basic switching and level control are required.

Advantages

The zone controller allows selective routing to six distinct zones and supports simultaneous broadcast to all zones. With a 10 W output it suits low-power public address applications. The device simplifies zone management by consolidating control into one unit, reducing the need for multiple amplifiers or complex wiring. Its design focuses on practical functionality for small installations, making installation and day-to-day operation straightforward.

Suitable for

Key specifications

How to use

Connect the audio source and paging microphone to the appropriate inputs and wire the loudspeakers to the six zone outputs following standard audio cabling practices. Use the front-panel or designated controls to select individual zones or enable simultaneous broadcast to all zones. Adjust output levels to match speaker sensitivity and room acoustics. Ensure the total speaker load and wiring conform to low-power PA requirements for safe and reliable operation.

Recommendations

Place the controller in a dry, ventilated location near source equipment; avoid exposure to heat and moisture. For consistent audio quality, select speakers and cable runs suited to the 10 W output and verify zone coverage during installation. For paging clarity, test microphone levels and adjust equalization at the source if available.
