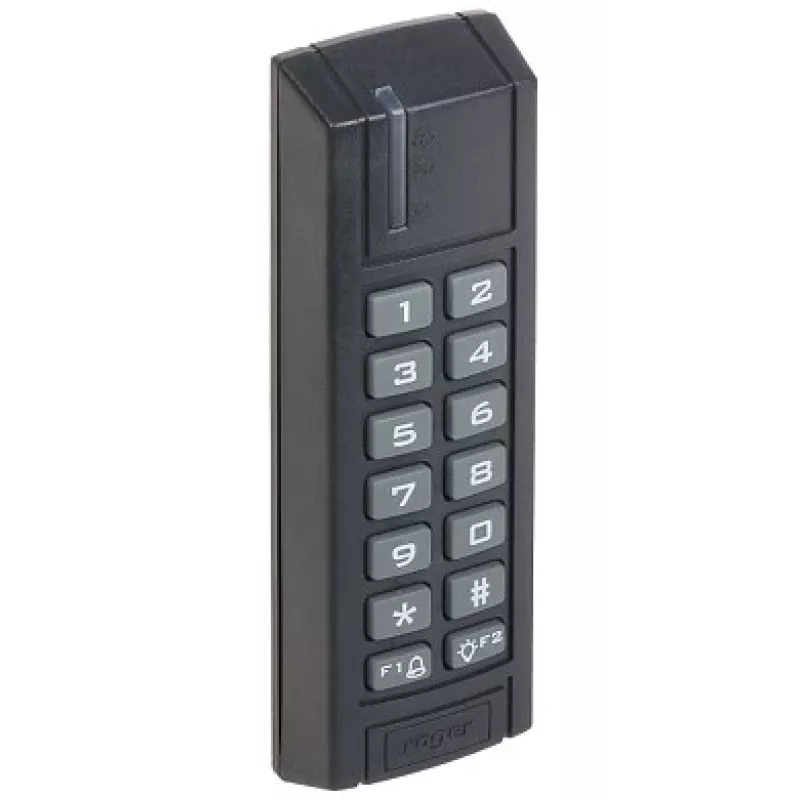

Controlador de Acceso ROGER PR312EM-G

The ROGER PR312EM-G is a standalone access controller designed for single-door access control applications. It supports EM 125 kHz proximity technology, providing reliable and secure entry management for up to 1000 users. Ideal for small to medium-sized installations, this controller offers a cost-effective solution for controlling access to offices, warehouses, and other indoor facilities.

Advantages

Easy to install and program using master cards or PC software via RS485 interface. The built-in relay and auxiliary relay allow flexible control of locks and other devices. With a robust ABS plastic enclosure and wide operating temperature range, it ensures long-lasting performance in various environments.

Suitable for

• Small offices and businesses
• Warehouses and storage facilities
• Educational institutions
• Residential complexes

Key specifications

• Operating Mode: Standalone
• Reader Technology: EM 125 kHz Proximity
• User Capacity: 1000 users
• Event Log Capacity: 1000 events
• Number of Doors Controlled: 1
• Inputs: 2 (Door Contact, Exit Button)
• Outputs: 2 (1x Relay for Lock, 1x Auxiliary Relay)
• Relay Type: NO/NC
• Power Supply: 12V DC
• Current Consumption (Standby): Approx. 80 mA
• Operating Temperature: -25°C to +60°C
• Enclosure Material: ABS Plastic
• Protection Class: IP20
• Programming Method: Master Cards, PC Software (via PRxx2-USB converter)
• Communication Interface: RS485
• Card Compatibility: EM 125 kHz (e.g., EM4100, EM4102)
• Reading Range: Up to 10 cm

Recommendations

For optimal performance, use with ROGER PRxx2-USB converter for PC configuration. Suitable for indoor use only. Ensure proper power supply (12V DC) and wiring for reliable operation.
