Controladora RAID Areca ARC-1886-16I PCI Express x8 4.0 12 Gbit/s

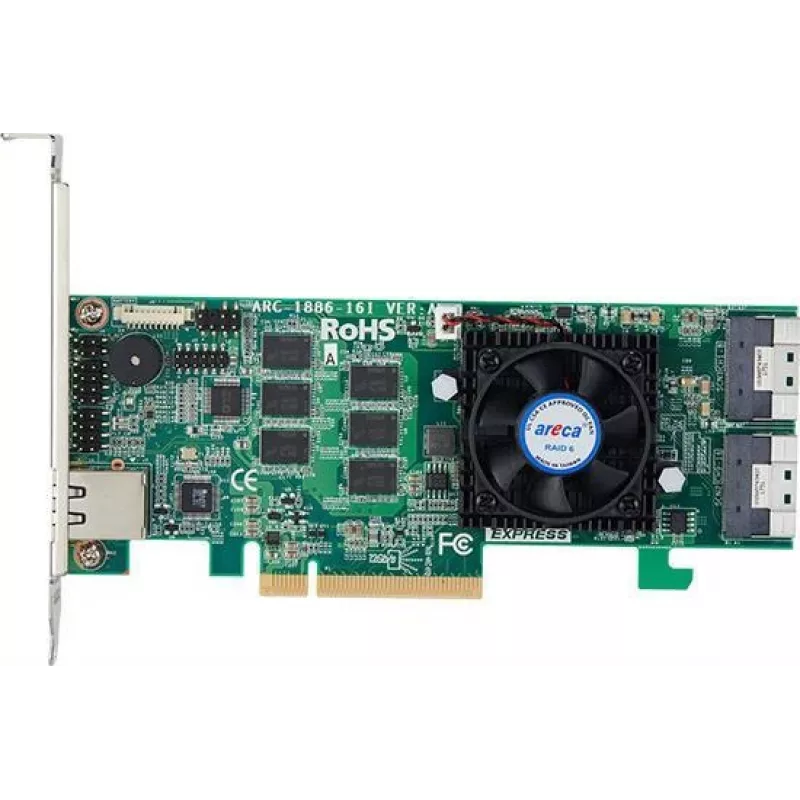

The Areca ARC-1886-16I RAID controller is a high-performance storage controller with a PCI Express 4.0 x8 interface and support for 12 Gbit/s SAS/SATA connections. Designed for server and workstation environments, it provides hardware RAID management for multiple RAID levels including 0, 1, 3, 5, 6, 10, 30, 50 and 60 as well as JBOD. The controller includes 8000 MB of onboard memory to accelerate caching and background operations while keeping typical power consumption around 14 W for energy-efficient operation.

Advantages

The controller delivers sustained throughput and low latency via PCIe 4.0 x8 connectivity and 12 Gbit/s device support, enabling faster data transfers for multi-drive arrays. Onboard memory improves read/write caching and rebuild performance, reducing recovery windows after drive failures. Broad RAID-level support and JBOD mode provide flexible configuration options for redundancy, performance, and capacity optimization. The relatively low typical power usage supports efficient 24/7 operation in rack-mounted or tower systems.

Suitable for

• Database servers and transactional systems requiring consistent I/O performance
• Virtualization hosts and hyperconverged infrastructure with multiple virtual machines
• High-capacity file and archival storage arrays
• Media editing and content production workflows demanding sustained throughput
• Backup and disaster recovery targets where RAID redundancy is required

Key specifications

• Interface: PCI Express 4.0 x8
• Host data link speed: 12 Gbit/s per port (SAS/SATA compatible)
• Onboard memory: 8000 MB for caching and metadata
• Supported RAID levels: 0, 1, 3, 5, 6, 10, 30, 50, 60 and JBOD
• Typical power consumption: 14 W
• Form factor: low-profile add-in card (fits standard PCIe x8/x16 slots)

How to use

Install the controller into an available PCIe x8 or x16 slot on a compatible motherboard, secure the card to the chassis, and connect SAS/SATA drive backplanes or direct-attached drives using appropriate cables. After hardware installation, power on the system and enter the controller BIOS/firmware utility during POST to configure drives, initialize arrays and set desired RAID levels and caching policies. Install the vendor-supplied drivers and management software in the host operating system to enable advanced monitoring, firmware updates and background tasks such as consistency checks and rebuilds.

Recommendations

Use enterprise-grade SAS or SATA drives for best reliability, enable regular firmware updates and configure battery or flash-backed cache as recommended by the vendor for safe write caching. Monitor drive health and array status with management tools and schedule background parity checks and rebuilds during low-usage windows to minimize impact on production workloads.
