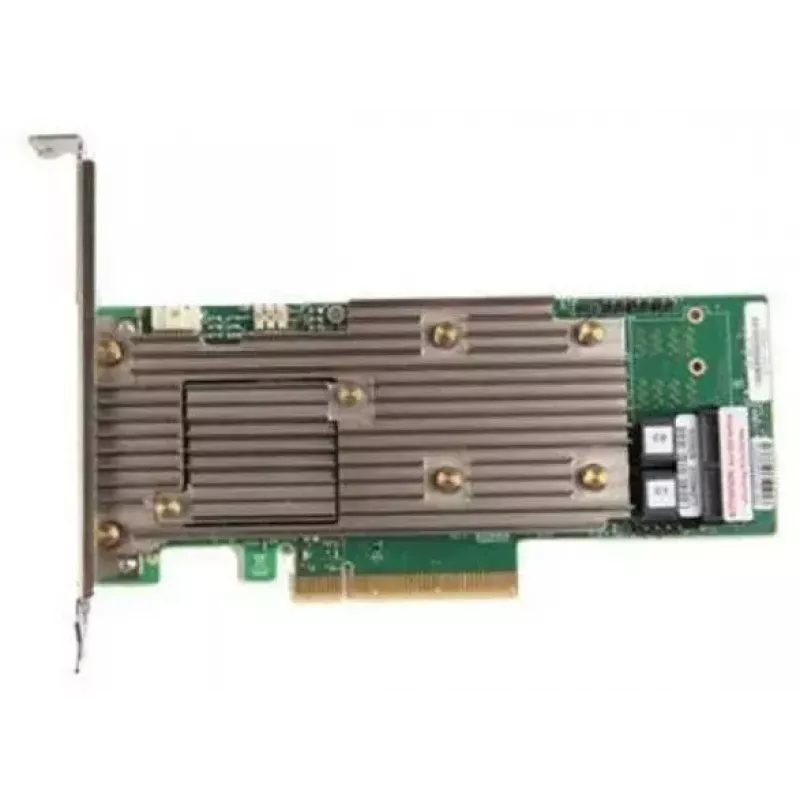

Controladora RAID FUJITSU EP 3258-16I FH/LP 16 puertos

FUJITSU PRAID controller EP 3258-16I FH/LP is a 16-port hardware RAID controller designed for server storage consolidation and data protection. Offered in a full-height/low-profile form factor, the controller supports connection of up to sixteen drives and manages RAID arrays to deliver redundancy and improved performance in enterprise environments. The card is intended for installation in servers or storage enclosures where centralized RAID management, predictable failover behavior and hardware-level parity calculations are required.

Advantages

The hardware RAID engine offloads parity and rebuild calculations from the host CPU, reducing server load and maintaining application performance during disk operations. Support for sixteen ports enables flexible attachment of multiple drives or expanders without additional controllers. The FH/LP form factor provides compatibility with both standard rack servers and low-profile chassis. On-card management functions simplify array configuration and monitoring, helping to ensure consistent behavior during drive replacement and rebuilds.

Suitable for

• Enterprise servers requiring centralized RAID management
• Storage enclosures and JBOD expansion with multiple drives
• Database and virtualization hosts where disk redundancy and performance matter
• Environments needing predictable rebuilds and hardware-level parity

Key specifications

• Interface: PCI Express (full-height / low-profile compatible)
• Number of ports: 16 internal drive ports
• RAID levels: hardware support for common RAID levels (including parity-based and mirror modes)
• Form factor: full-height / low-profile bracket options
• Management: on-card RAID configuration and monitoring capabilities
• Use case: designed for enterprise-class server storage consolidation

How to use

Install the controller into an appropriate PCIe slot on a powered-down server chassis that supports the chosen form factor. Connect drives directly or via compatible backplanes or expanders to the controller's internal ports, ensuring correct cabling and power for each drive. Use the vendor-provided management utility or firmware interface to initialize physical drives, create RAID arrays, set rebuild policies and monitor health. Follow standard procedures for firmware updates and backup prior to changes in array configuration.

Recommendations

For reliable operation, use enterprise-class drives with consistent performance and SMART support, enable appropriate RAID level for your fault-tolerance and performance needs, and maintain regular backups. Verify compatibility with your server model and firmware levels before deployment, and plan spare drive availability to reduce rebuild time in case of drive failure.
