Convertidor de bloque de bajo ruido Megasat 0401022

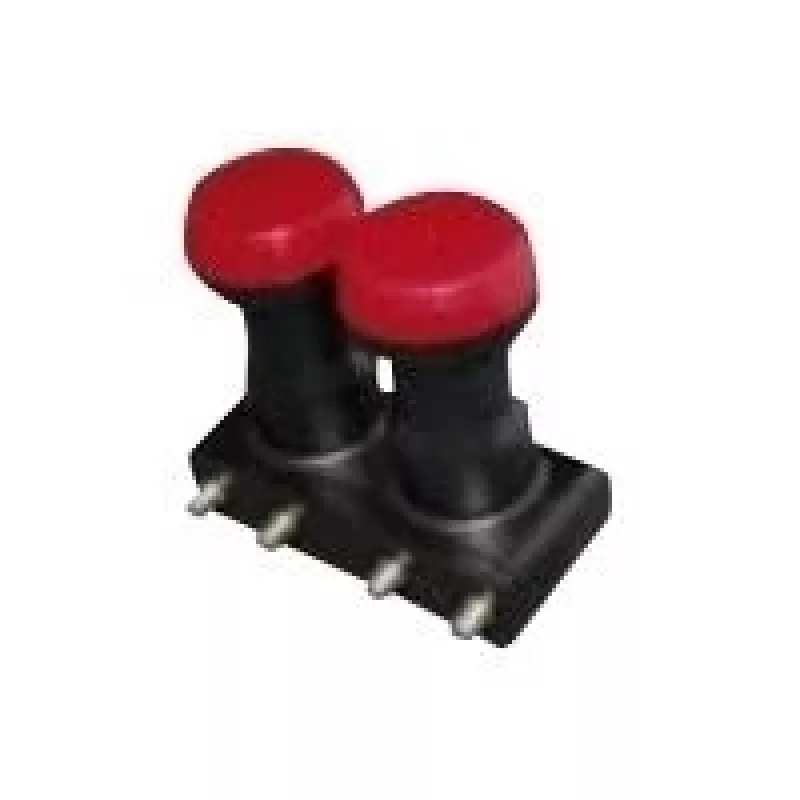

The Megasat 0401022 Low Noise Block downconverter is a professional monoblock LNB designed for reliable digital satellite reception. It supports reception from two satellites (Astra 19.2°E and Hotbird 13.0°E) with a fixed LNB spacing of 6.2° and includes an integrated DiSEqC switch for automatic switching between satellites. The unit operates in the 10.7–12.75 GHz frequency range, has gold-plated F-connectors, a low noise figure of 0.1 dB and a 4 cm feedhorn diameter; its dimensions are 122 mm (width) × 170 mm (depth).

Advantages

The Megasat monoblock offers high weather resistance for stable performance in cold and hot climates, gold-plated F-connectors for improved signal conductivity and a very low noise figure (0.1 dB) for clear picture and sound. The integrated DiSEqC switch and four outputs allow connection of up to four receivers without additional external switches.

Suitable for

Key specifications

How to use

Mount the monoblock LNB on a compatible satellite dish with the correct focal point and alignment for Astra 19.2°E and Hotbird 13.0°E. Connect coaxial cables to the gold-plated F-connectors and run them to up to four receivers. Configure each receiver to use DiSEqC switching if required so the devices can select the appropriate satellite automatically. Fine-tune dish alignment for optimal signal quality and verify reception on each connected receiver.

Recommendations

Use with a properly sized satellite dish and stable mounting to achieve best reception; periodically check cable connections and the condition of the F-connectors to maintain low-noise performance.
