Convertidor de serie repetidor aislador DeLOCK 63968

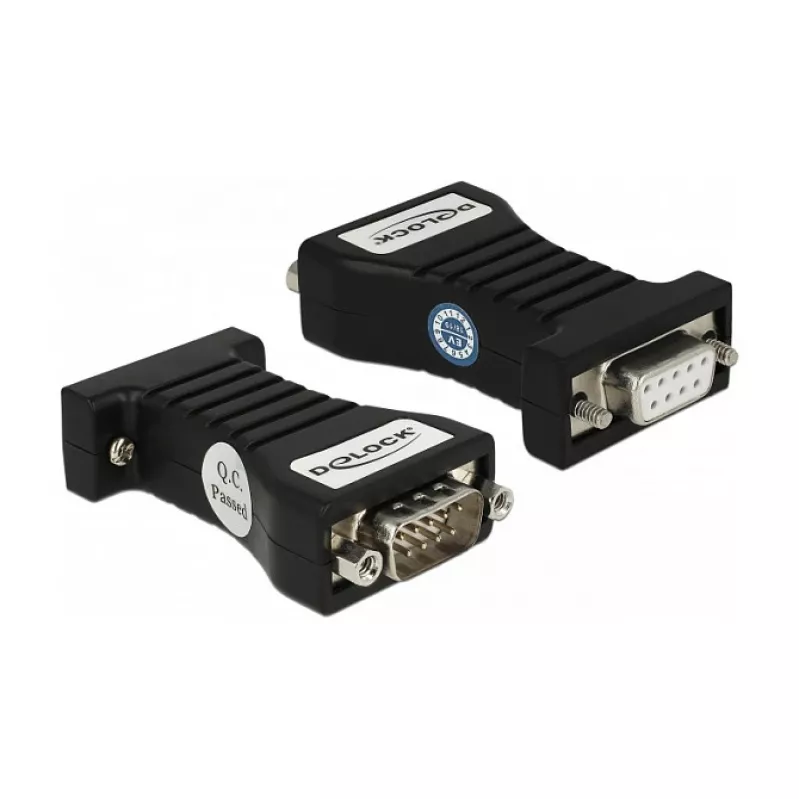

The DeLOCK 63968 is an RS-232 serial converter, repeater and isolator that provides galvanic isolation between two DB9 devices. Housed in a plastic enclosure, it protects connected equipment such as computers, controllers, measuring instruments and machines from electromagnetic interference, electrostatic discharge and surges while maintaining continuous data transmission even in the presence of earth/ground loops. The unit connects directly between two DB9 RS-232 ports and does not require an external power supply.

Advantages

The isolator ensures continuous, stable RS-232 communications by eliminating ground loop issues through complete galvanic isolation. It protects devices from electromagnetic and electrostatic disturbances as well as transient surges. The compact plastic housing is lightweight and durable, and the device is simple to install as a direct coupling between two DB9 connectors without additional power.

Suitable for

• Industrial RS-232 connections between PCs, PLCs and controllers
• Protecting measuring instruments and data loggers from interference
• Serial communication over longer cable runs where ground loops may occur
• Connecting machines and controllers in automated systems

Key specifications

• Interface: RS-232 (DB9)
• Function: Converter / Repeater / Isolator
• Galvanic isolation: complete isolation between connected devices
• Power: no external power supply required
• Housing: plastic
• Brand / MPN / EAN: DELOCK / 63968 / 4043619639687

How to use

Connect the DeLOCK 63968 directly between two RS-232 DB9 ports using standard DB9 cables. Ensure connectors are oriented and fastened correctly to maintain reliable contact. Once connected, the device operates passively to provide galvanic isolation and signal repeating without requiring additional configuration or a separate power source.

Recommendations

Use standard-shielded RS-232 cables and secure cable routing to minimise external interference. Verify connector pinouts when integrating with custom or non-standard equipment. For installations in electrically noisy environments, position the isolator close to the device requiring protection to reduce exposure to transient disturbances.
