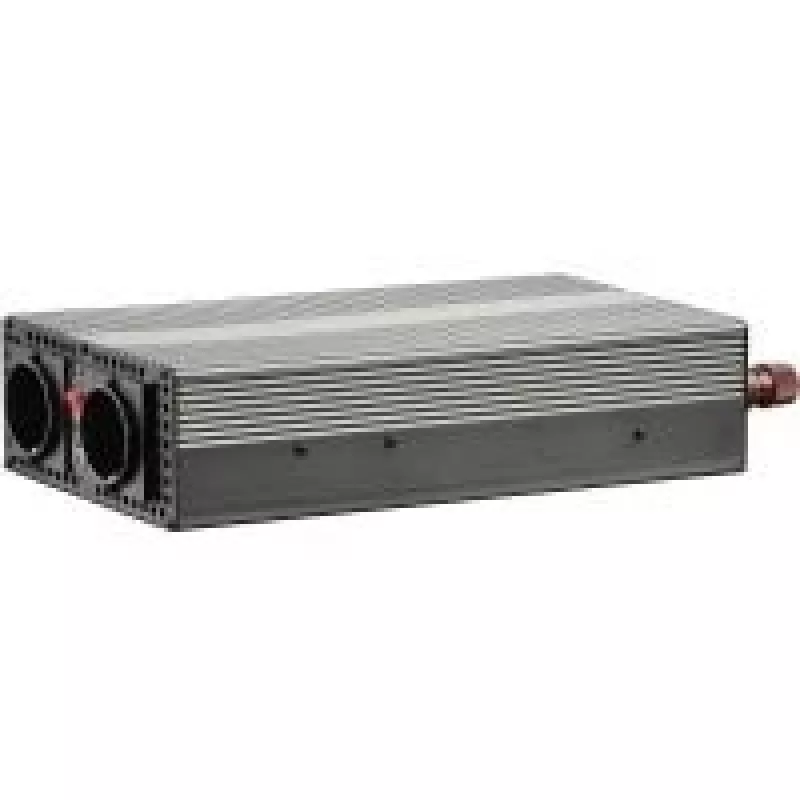

Convertidor de tensión Voltcraft MSW 1200-24-G — 1200 W, 24 V DC a 230 V AC

The Voltcraft MSW 1200-24-G is a 1200 W power inverter that converts 24 V DC from battery systems into 230 V AC suitable for common mains-powered devices. Designed for use in vehicles, boats and off-grid installations, the inverter supplies continuous power for a wide range of household appliances and electronic equipment. The compact housing integrates cooling and protection features to maintain stable output under typical mobile and stationary operating conditions.

Advantages

Provides a continuous 1200 W AC output from a 24 V DC source, enabling operation of tools, chargers and small appliances where mains power is not available. The inverter supports a waveform suitable for many consumer electronics and includes built-in safeguards such as overload protection, thermal management and short-circuit protection to reduce the risk of damage. Its form factor and mounting options make installation straightforward in vehicles, boats or fixed off-grid locations.

Suitable for

• Powering battery chargers and power tools from a 24 V battery system
• Running small kitchen appliances and electronic devices in caravans or boats
• Providing temporary mains power at worksites and remote locations
• Supporting off-grid setups for lighting, routers and low-power equipment

Key specifications

• Continuous output power: 1200 W
• Input voltage: 24 V DC
• Output voltage: 230 V AC
• Output waveform: modified sine (as commonly used for general-purpose inverters)
• Built-in protection: overload, over-temperature and short-circuit protection
• Cooling: integrated fan or passive thermal design for stable operation

How to use

Install the inverter on a stable, ventilated surface and connect it to a compatible 24 V DC battery system using appropriately rated battery cables and connectors. Ensure polarity is correct before powering on. Connect the 230 V AC appliances to the inverter's outlet(s) and switch the inverter on. Monitor load and temperature; avoid operating the inverter beyond its continuous 1200 W rating. Follow vehicle or boat electrical guidelines and disconnect the inverter when not in use or before performing maintenance.

Recommendations

Use the inverter with appliances whose combined starting and running power does not exceed the inverter's ratings. For inductive loads or devices with high startup currents, verify the actual inrush current and allow margin below the continuous rating. Maintain adequate ventilation, secure battery connections, and consult installation documentation or a qualified technician for permanent installations.
