Convertidor de vídeo Composite y S-Video a VGA StarTech.com

Convert and Scale a Composite or S-Video Signal to Work with a VGA Display

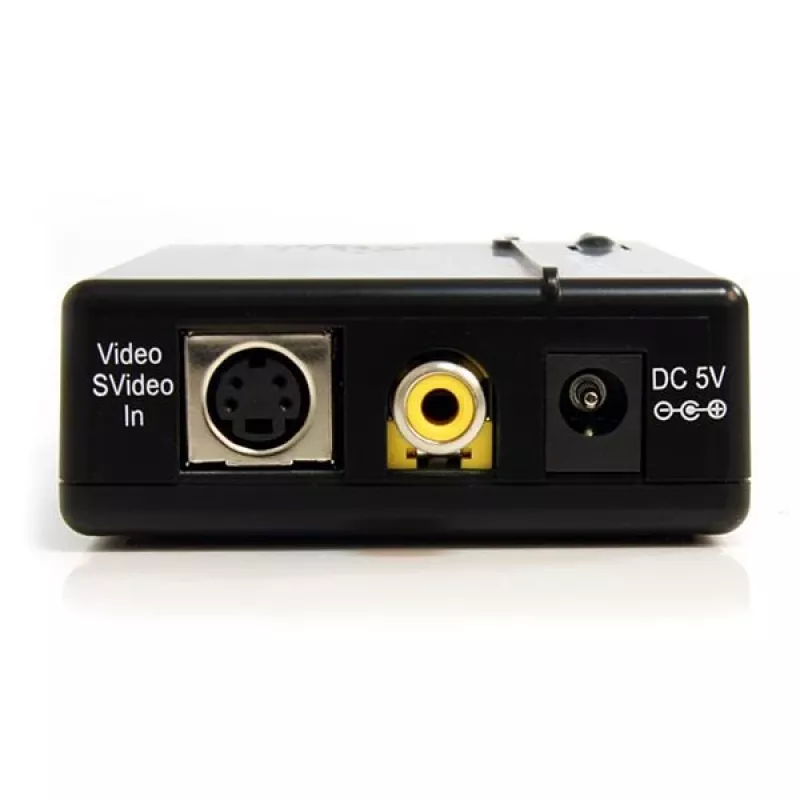

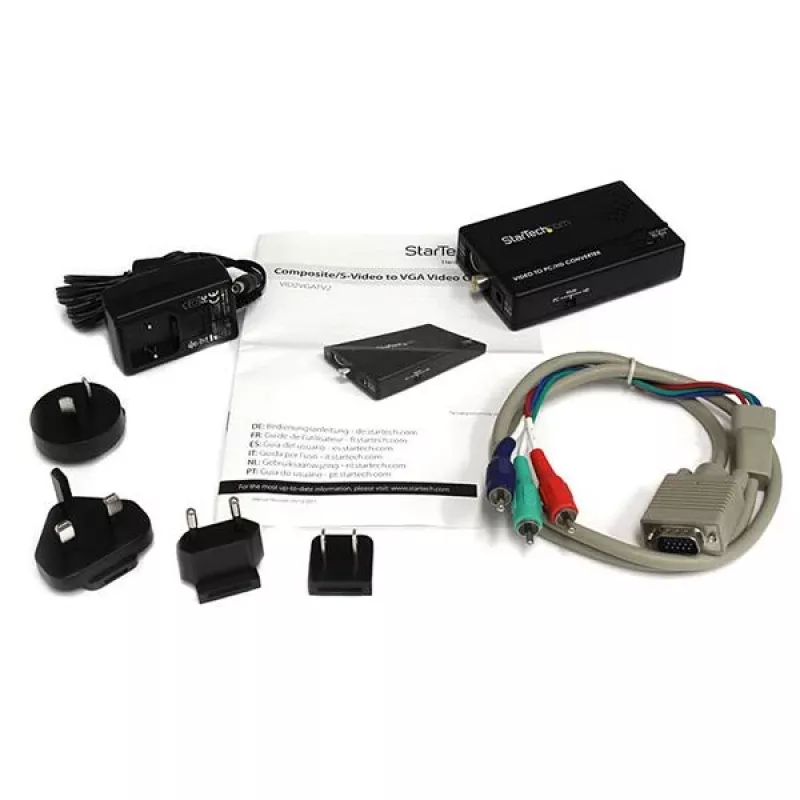

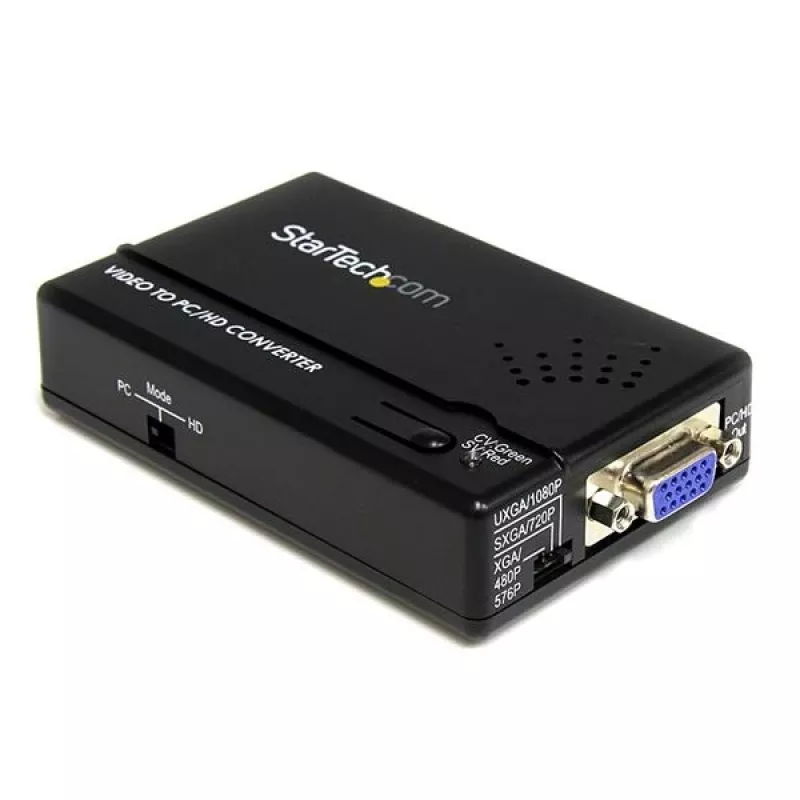

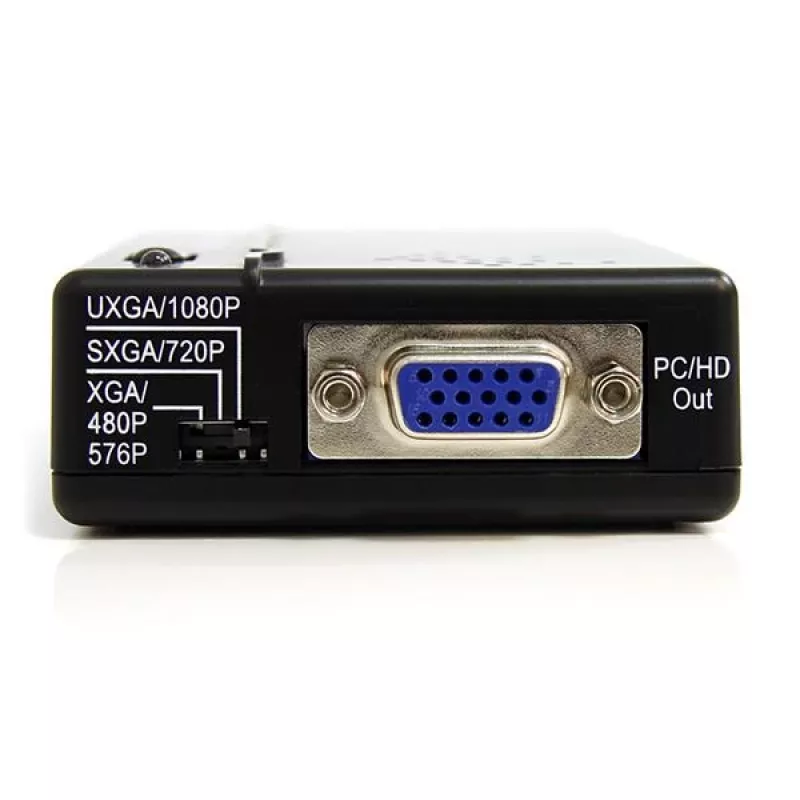

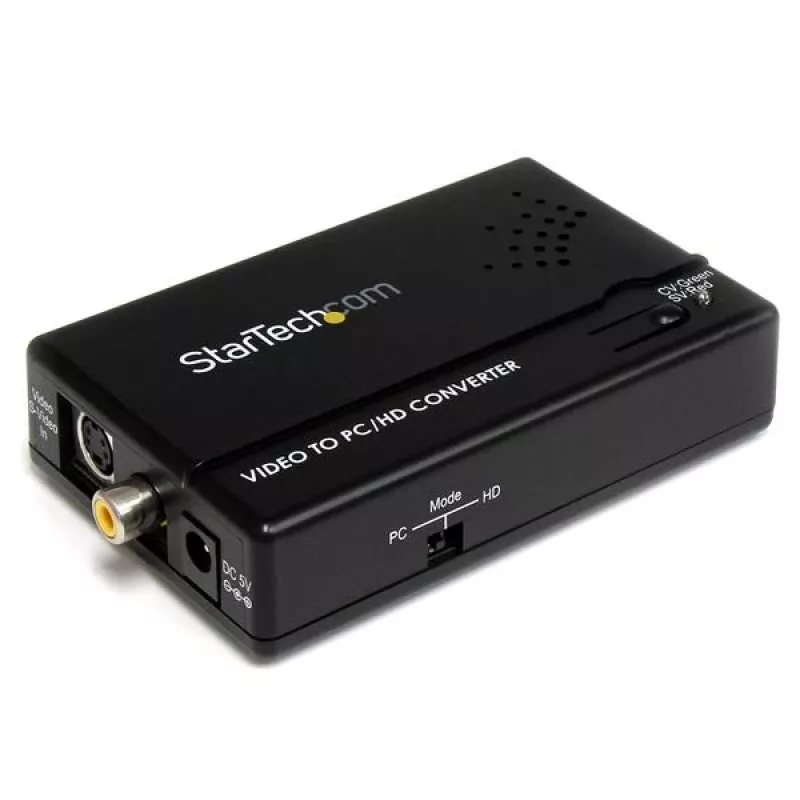

The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets. Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector. Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RCA) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Automatically detects the input resolution while allowing you to customize the output resolution and refresh rate using the On-Screen Display, ensuring compatibility with your display or projector
- Adjustments for brightness, contrast, color, RGB level and horizontal/vertical positioning offers flexibility
- Offers a pure hardware design, with no software installation required, delivering an easy-to-use and time-saving solution

StarTech.com Composite and S-Video to VGA Video Scan Converter. Converter type: Active video converter, Product colour: Black, Housing material: Plastic. Maximum video resolution: 1600 x 1200 pixels, Video resolutions: 1024 x 768,1280 x 1024,1600 x 1200, Analog signal format system: NTSC, PAL. Host interface: Composite, S-Video, Output interface: VGA. Operating voltage: 5 V, Operating current: 1 A, Power consumption (typical): 2.5 W. Width: 64 mm, Depth: 112 mm, Height: 26 mm
