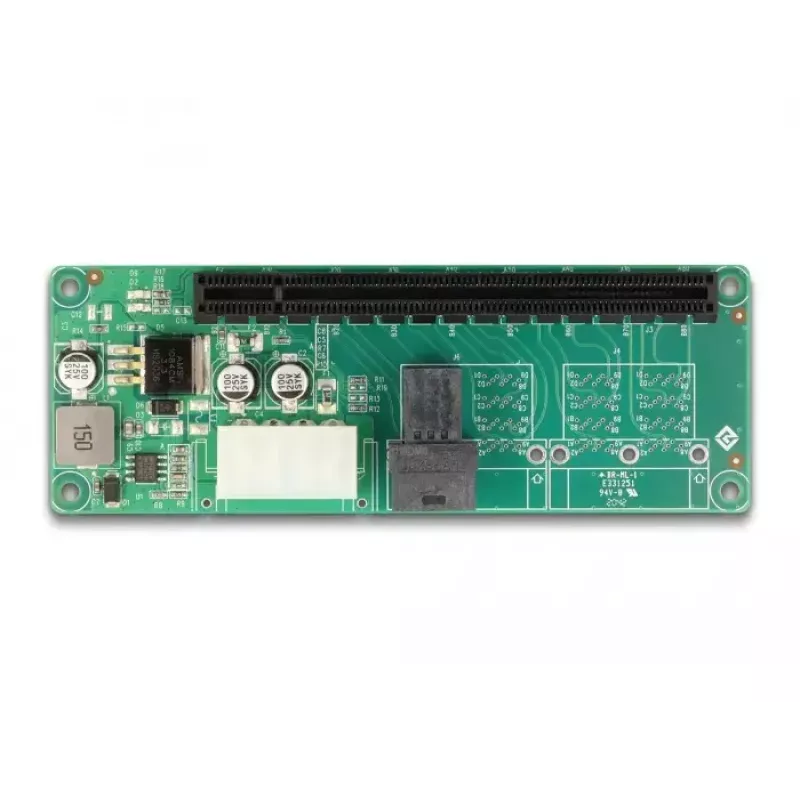

Convertidor DeLOCK 1 x SFF-8643 a interfaz host PCIe x16 interfaz de salida PCIe SFF-8643

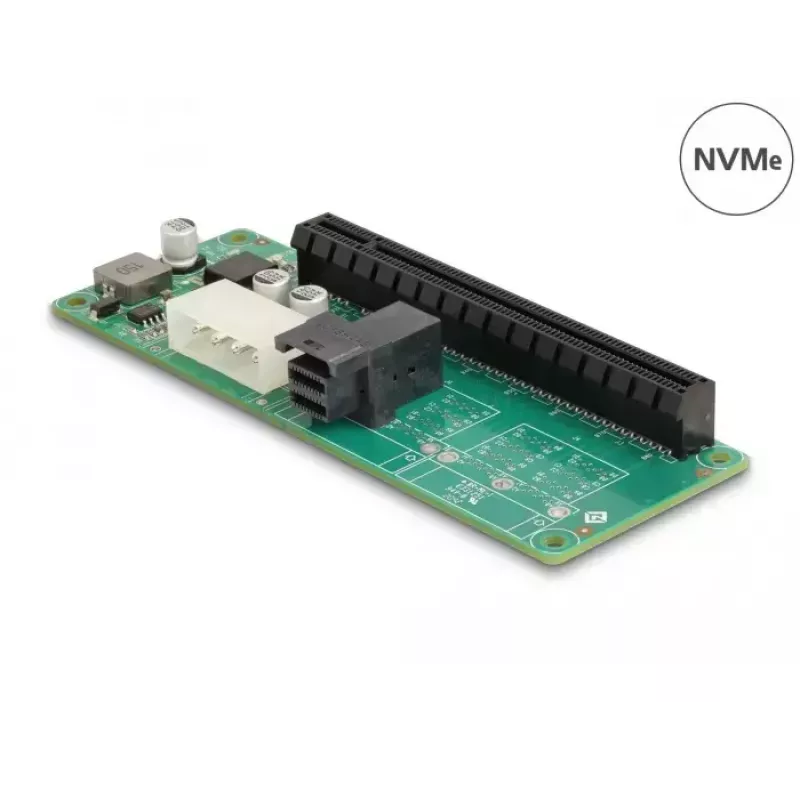

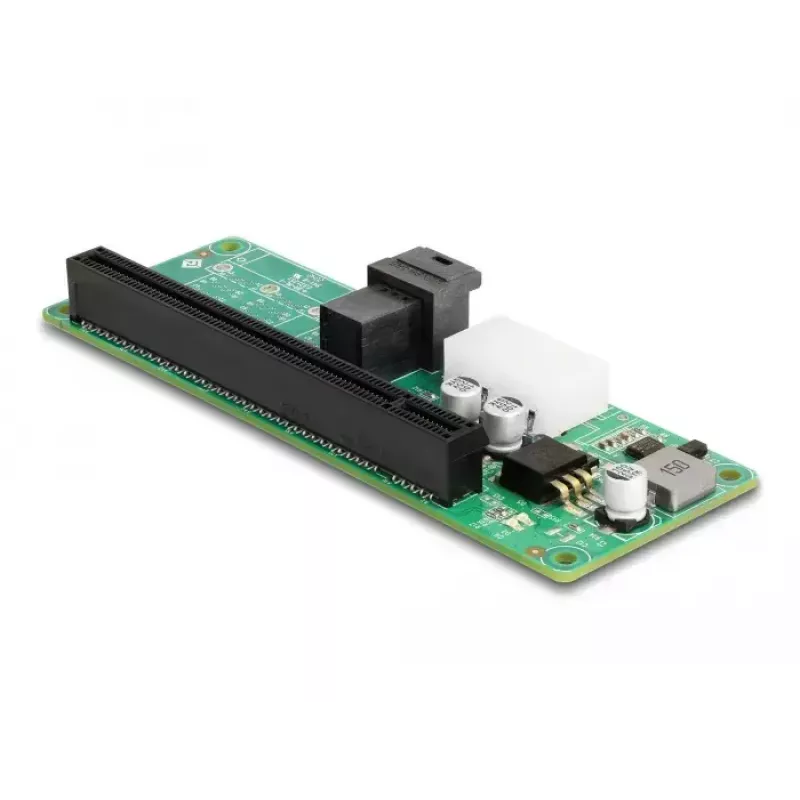

This converter by Delock connects to a system via an SFF-8643 interface and provides a PCI Express x16 slot. It enables installation of various PCI Express cards into systems that offer an SFF-8643 port and supports four PCIe lanes on the SFF-8643 connection.

Advantages

The adapter converts an internal SFF-8643 connection to a PCIe x16 slot while maintaining support for four PCIe lanes, allowing use of compatible add-in cards. Its compact dimensions (43 mm × 121 mm × 18 mm) make it suitable for installation in servers and workstations where internal space is limited. The product is designed for internal mounting and uses standard PCIe signaling.

Suitable for

• Installing PCIe x16 cards in systems with an available SFF-8643 internal port
• Expanding internal connectivity in servers and workstations
• Testing or prototyping PCIe cards where direct PCIe slots are not available

Key specifications

• Brand: DELOCK
• Model / MPN: 64173
• EAN: 4043619641734
• Host interface: PCIe (internal)
• Output interface: SFF-8643, PCIe x16
• PCIe lanes supported: 4 lanes
• Dimensions (W × D × H): 43 mm × 121 mm × 18 mm

How to use

Install the converter inside the system and connect the SFF-8643 cable from the host to the converter’s SFF-8643 connector. Secure the converter according to the chassis’ internal mounting options. Insert the PCIe x16 card into the provided slot and ensure it is firmly seated. Power on the system and install any required drivers or firmware for the installed PCIe card if applicable.

Recommendations

Use compatible PCIe x16 cards that operate correctly with a 4-lane PCIe connection; verify bandwidth and power requirements of the card against system capabilities. Ensure correct internal cable routing and secure mounting to prevent connector strain.
