Convertidor InLine VGA + audio a HDMI entrada VGA y audio RCA salida HDMI

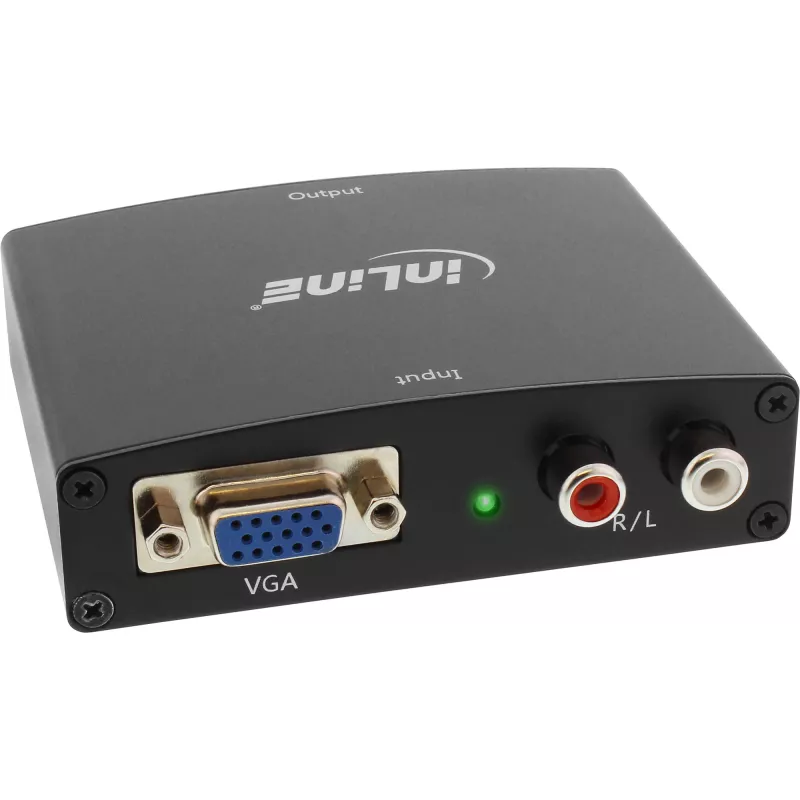

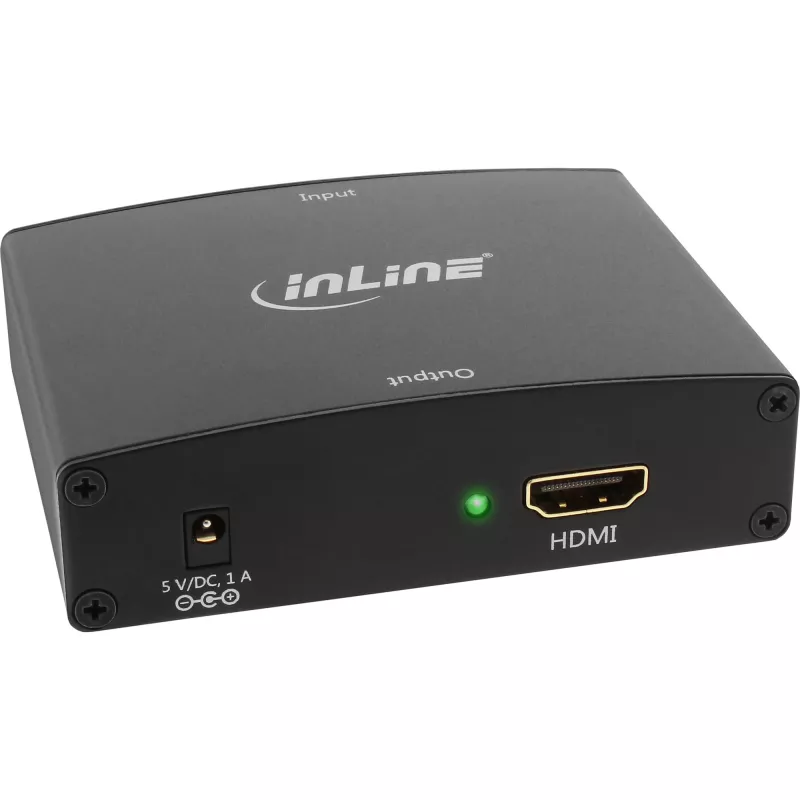

The InLine 65004 VGA to HDMI Converter converts analog VGA video and analog RCA audio signals into a digital HDMI output. It supports up to 1920 x 1080 pixels (1080p) and provides a bandwidth of 2.25 Gbit/s in a compact black housing, enabling connection of older VGA-equipped devices to modern HDMI displays.

Advantages

This converter delivers full HD resolution (1920 x 1080) and integrates analog audio with VGA video into a single HDMI signal, simplifying connections between legacy equipment and current displays. Its compact black design is unobtrusive and suitable for desktop or AV cabinet installation, while the supported bandwidth of 2.25 Gbit/s ensures stable video transmission at 1080p.

Suitable for (tasks / use cases)

• Connecting older PCs or laptops with VGA output to HDMI monitors or TVs
• Integrating analogue RCA audio sources with VGA video into HDMI displays
• Using legacy presentation equipment (projectors, switchers) with modern HDMI-only displays

Key specifications

• Maximum resolution: 1920 x 1080 pixels (1080p)
• Bandwidth: 2.25 Gbit/s
• Input: VGA (analog video) and RCA (analog audio)
• Output: HDMI (digital audio/video)
• Colour: Black
• Brand / Model: InLine 65004

How to use

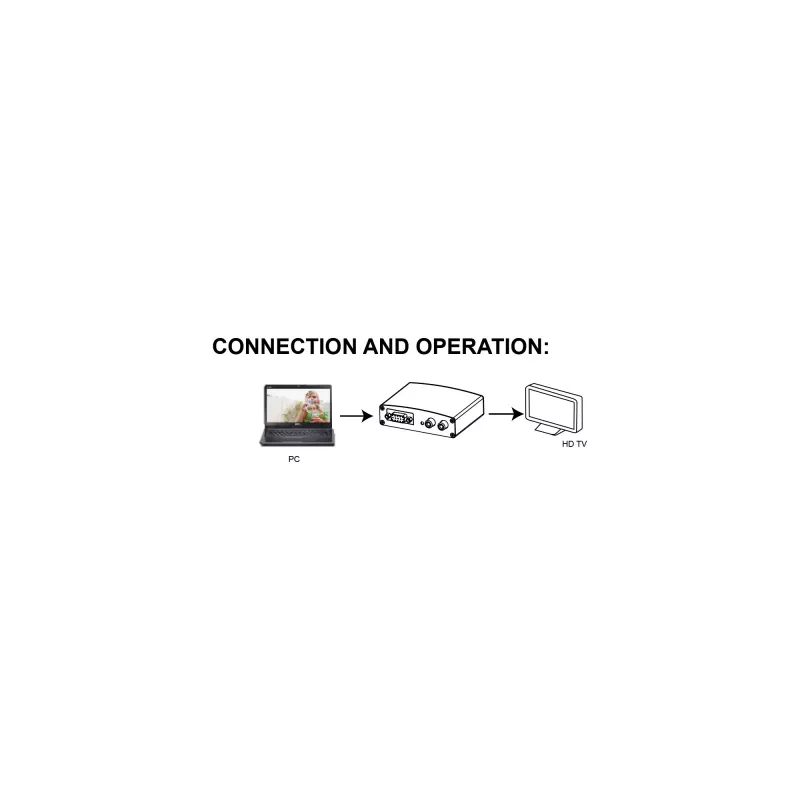

Connect the VGA cable from the source device to the converter VGA input and connect the RCA audio cables to the converter's audio inputs. Plug an HDMI cable from the converter's HDMI output to the HDMI input on the display. Power the converter if an external power source is required (check the device for a power connector). Turn on the source and display, then select the correct HDMI input on the display to view the converted signal.

Recommendations

For best results, set the source device to output a resolution compatible with 1920 x 1080 or lower. Use quality VGA, RCA and HDMI cables and ensure firm connector seating to minimise signal loss or interference.
