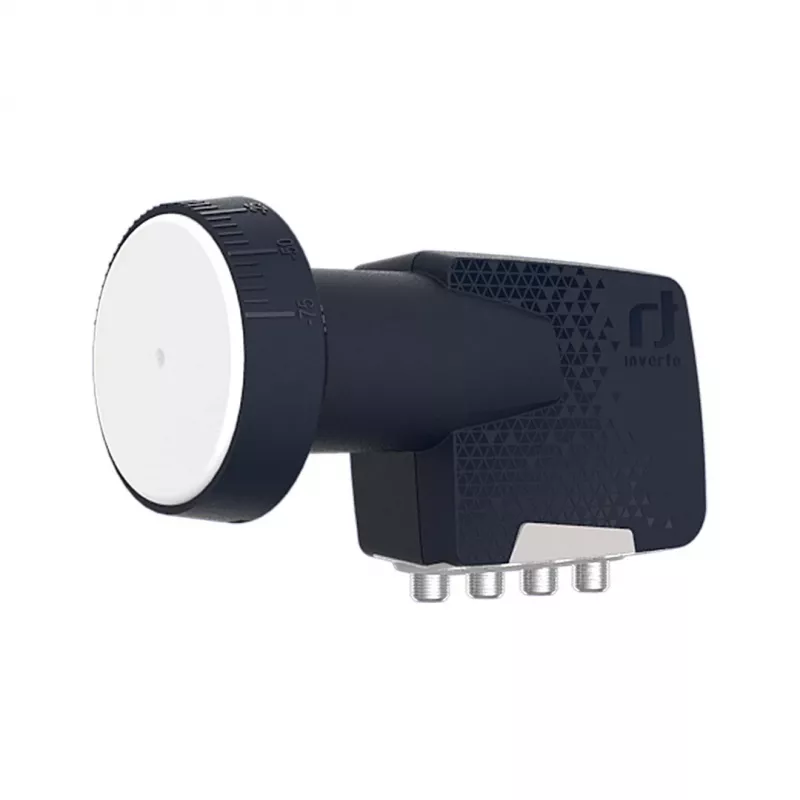

Convertidor LNB universal Inverto Quad Premium - 4 salidas, figura de ruido 0,2 dB, feedhorn de 40 mm, negro

Weak satellite signals and limited receiver connections often compromise your TV experience. The Inverto Quad Premium converter solves this by delivering a robust, low-noise signal to up to four independent receivers simultaneously. Whether you're setting up a multi-room system or need reliable reception for 4K UHD broadcasts, this LNB ensures consistent performance across the entire Ku-band.

Who is it for

Ideal for households with multiple set-top boxes or TVs, satellite enthusiasts, and professional installers who demand high gain and low noise. It suits DVB-S2, HDTV, and 4K UHD setups, providing future-proof compatibility for modern broadcasting standards.

Main features

• Quad universal LNB with 4 independent outputs for multi-receiver installations
• Ultra-low noise figure of 0.2 dB (typ.) for crisp, clear reception even in fringe areas
• Wide input frequency range 10.7–12.75 GHz covering low and high bands
• High conversion gain (50–60 dB) with excellent flatness (±0.5 dB over 26 MHz)
• Superior cross-polarization isolation (22 dB min.) and image rejection (40 dB min.)
• Weather-resistant housing with 40 mm feedhorn for standard dish compatibility
• Simple control via 22 kHz tone and 13/18V polarization switching

Specifications

• LNB Type: Quad Universal
• Outputs: 4
• Input Frequency Range: 10.7 – 12.75 GHz
• Output Frequency Range: 950 – 2150 MHz
• Low Band LO Frequency: 9.75 GHz
• High Band LO Frequency: 10.6 GHz
• Noise Figure: 0.2 dB (typ.)
• Conversion Gain: 50 – 60 dB
• Gain Flatness: ±0.5 dB (typ.) over 26 MHz
• Cross Polarization Isolation: 22 dB (min.)
• Image Rejection: 40 dB (min.)
• Output VSWR: 2.0:1 (max.)
• Current Consumption: 120 mA (max.)
• Operating Temperature: -30°C to +60°C
• Feed Horn Diameter: 40 mm
• Control Signals: Low Band (0 kHz), High Band (22 kHz)
• Polarization Control: 13V (Vertical), 18V (Horizontal)
• Compatibility: DVB-S2, HDTV, 4K UHD
• Weather Protection: Yes

Tips

For optimal performance, align your dish accurately and ensure the LNB is skewed correctly for your location. Use high-quality coaxial cable with minimal length to reduce signal loss. When connecting multiple receivers, ensure each output is connected to a separate tuner to avoid conflicts. The weather-resistant design allows outdoor installation, but protect connectors with weather boots for longevity.
