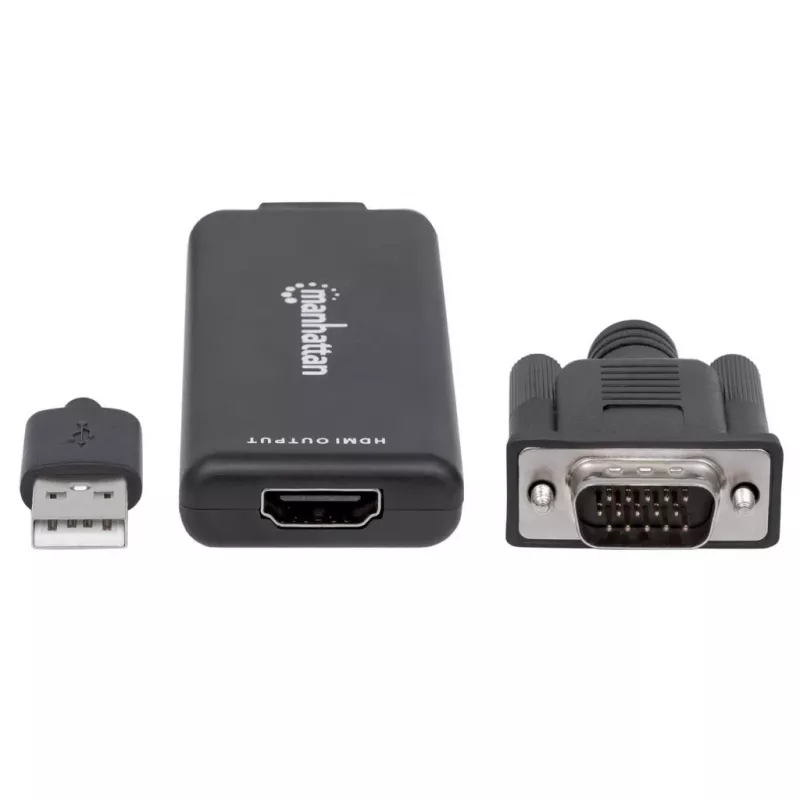

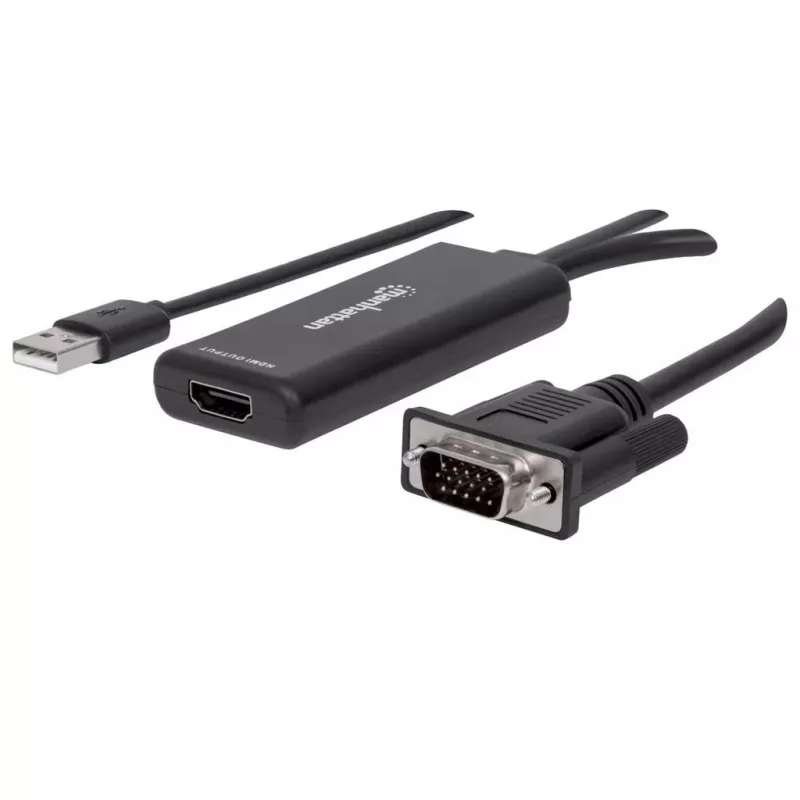

Convertidor VGA y USB-A a HDMI Manhattan 152426

The Manhattan VGA and USB-A to HDMI Converter 152426 converts analog VGA video and USB audio signals from a PC into a single digital HDMI output for use with HDMI-compatible projectors, flat-panel displays and TVs. It supports high-definition output up to 1920 x 1080 (1080p) at 60 Hz and preserves simultaneous audio/video reception at the source device. The compact, lightweight adapter includes a 1 m attached cable and complies with common HDMI certifications for straightforward integration in home, office or presentation setups.

Advantages

This converter combines VGA (D-Sub) video and USB Type-A audio into one HDMI output, eliminating the need for separate audio cabling. It supports 24‑bit color depth at resolutions up to 1920 x 1080 @ 60 Hz, offers plug-and-play operation on Windows and macOS, and has a compact, lightweight design (0.102 kg) for easy transport and installation. The adapter meets standard HDMI compliance and is suitable for continuous use in training, retail and trade-show environments.

Suitable for

• Connecting legacy VGA computers to HDMI displays or projectors
• Presentations in meeting rooms, classrooms and trade shows
• Displaying PC-based video and multimedia on HDTVs and flat-panel displays

Key specifications

• Model: Manhattan 152426
• Input connectors: VGA (D-Sub) and USB Type-A (audio)
• Output connector: HDMI
• Maximum resolution: 1920 x 1080 (1080p) @ 60 Hz
• Color depth: 24‑bit
• Cable length: 1 m (attached)
• Weight: 0.102 kg
• Colour: Black

How to use

Connect the VGA cable from the PC’s video output to the converter’s VGA input and plug the USB Type‑A connector into the PC to transmit audio and power (if required). Then connect an HDMI cable from the converter’s HDMI output to the HDMI input on the display or projector. Select the HDMI input on the display and, if necessary, configure the computer’s display settings to mirror or extend the desktop at the desired resolution (up to 1920 x 1080 @ 60 Hz).

Recommendations

For best results, set the computer’s output resolution to 1920 x 1080 @ 60 Hz and ensure the HDMI cable and target display support the same resolution and color depth. Use a good-quality HDMI cable and keep VGA cable runs as short as practical to reduce signal degradation.
