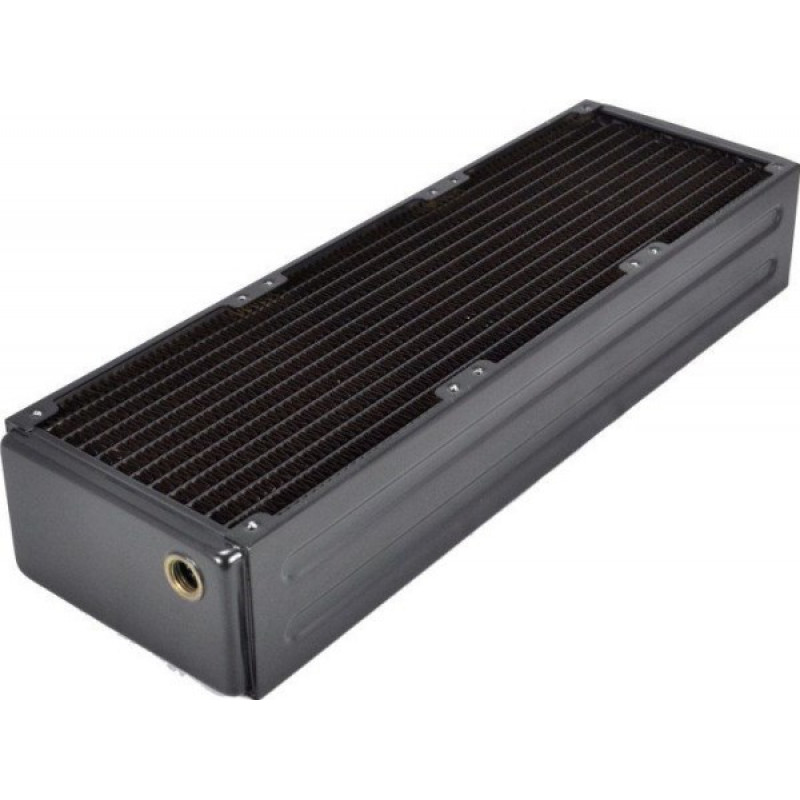

Coolgate XFlow Radiador G2 - 360mm

PC enthusiasts building a high-performance water cooling loop for their CPU and GPU will appreciate the Coolgate XFlow G2 360mm radiator. This cross-flow radiator is engineered to deliver efficient heat dissipation in a compact 360mm form factor, making it ideal for custom loops in mid-tower and full-tower cases.

Key specifications

• Radiator size: 360mm (supports 3x 120mm fans)
• Core thickness: 45mm for high cooling capacity
• Material: Copper fins, brass chambers, steel frame
• Fin density: 16 FPI for balanced airflow and performance
• Port thread: G1/4" with 4 ports (2 inlet/outlet, 2 fill/drain)
• Flow configuration: Dual-pass cross-flow design
• Pressure tested: 1.5 bar for reliability
• Colour: Matte black
• Dimensions (excluding ports): 395mm x 120mm x 45mm
• Weight: approx. 2.0 kg
• Included accessories: 12x M3 fan screws, 4x G1/4" stop plugs

Why choose it

The cross-flow design simplifies tube routing by placing inlet and outlet on opposite ends, reducing clutter and improving coolant flow. The high-density louvered copper fins and multi-channel flat tube construction maximize heat transfer, while the brass chambers and steel frame ensure durability. Optimized for PC liquid cooling environments, this radiator resists corrosion and maintains consistent performance under load.

Ideal use cases

• Custom water cooling loops for gaming PCs and workstations
• Systems with high-TDP CPUs and GPUs requiring efficient heat dissipation
• Builds where clean tube routing is a priority
• Enthusiasts seeking a balance of performance and low noise with 120mm fans

Good to know

The radiator includes all necessary mounting screws and stop plugs for immediate installation. Its 45mm thickness provides a good compromise between cooling surface area and case compatibility. The matte black finish complements most build aesthetics, and the cross-flow layout allows for shorter tubing runs in many configurations.
