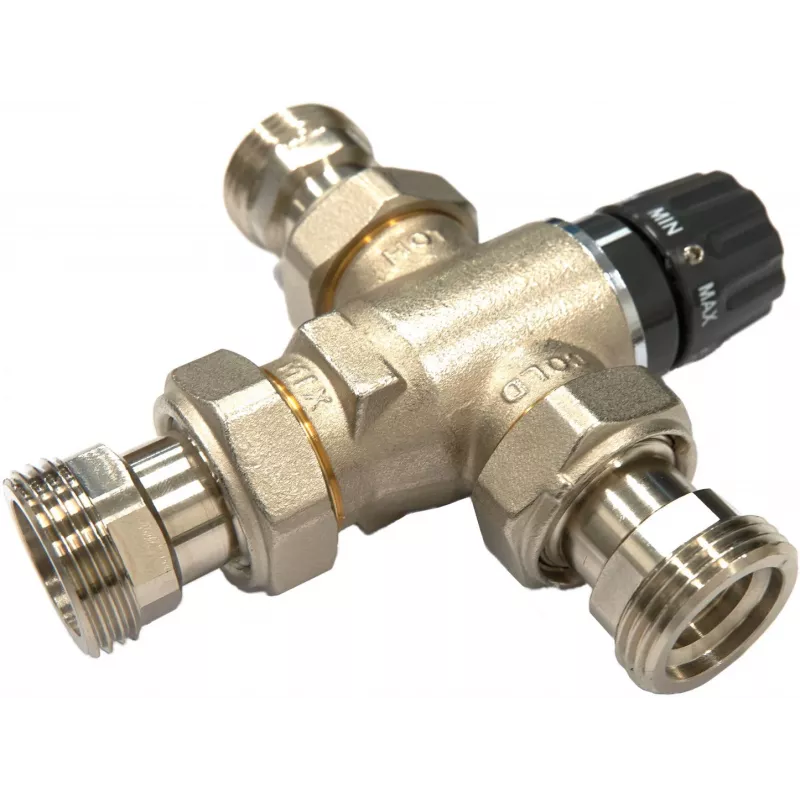

DEANTE Mezclador termostático central BCH 1X3T

The DEANTE Central Thermostatic Mixer BCH 1X3T is a high-quality brass mixing valve designed for precise temperature control in hot water systems, underfloor heating, and solar applications. Engineered for reliability and safety, it ensures consistent output temperature with anti-scald protection.

Advantages

This central thermostatic mixer offers exceptional temperature accuracy of ±2°C, preventing scalding and ensuring comfort. Its durable brass construction and 5-year warranty guarantee long-lasting performance. The inline installation design simplifies integration into existing plumbing systems.

Suitable for

• Hot water distribution systems
• Underfloor heating manifolds
• Solar thermal systems
• Commercial and residential buildings

Key specifications

• Product Type: Central Thermostatic Mixer
• Body Material: Brass
• Connection Size: G 3/4"
• Number of Ports: 3 (2 Inlets, 1 Outlet)
• Adjustable Temperature Range: 20 - 60°C
• Maximum Inlet Temperature: 90°C
• Maximum Operating Pressure: 10 bar (1 MPa)
• Minimum Differential Pressure: 0.2 bar
• Flow Coefficient (Kv): 2.5 m³/h
• Temperature Accuracy: ±2°C
• Installation Type: Inline
• Safety Feature: Anti-scald protection
• Finish: Natural Brass
• Certifications: PZH (Polish National Institute of Hygiene)
• Warranty: 5 years

Recommendations

For optimal performance, install with appropriate isolation valves and ensure minimum differential pressure of 0.2 bar. Suitable for use with potable water systems.
