Cooler Master Elite Gold 750 750W ATX 3.1 80 PLUS Gold Fuente de alimentación totalmente modular Negra MPX-7505-AFAG-BEU

The Cooler Master Elite Gold 750 is a 750-watt ATX 3.1 power supply engineered for modern desktop and gaming systems. With 80 PLUS Gold efficiency, a fully modular cable design and a native 12V-2x6 (12VHPWR) connector, it delivers stable, future-ready power for the latest PCIe 5.1 graphics cards without the need for adapters.

Advantages

Built to the ATX 3.1 standard, the Elite Gold 750 handles transient power spikes from high-end GPUs while maintaining 80 PLUS Gold efficiency of at least 90% at typical load, keeping heat and electricity costs down. The fully modular layout lets you connect only the cables you need for cleaner builds and improved airflow, while a 120 mm rifle bearing fan keeps operation quiet and reliable. Embossed cables, strong temperature resilience and a 10-year warranty round out a dependable, long-lasting design.

Suitable for

• Mid-range and high-end gaming PC builds
• Systems using PCIe 5.1 / 12VHPWR graphics cards
• Everyday desktop computers and home offices
• Compact and tidy ATX builds needing modular cabling

Key specifications

• Brand: Cooler Master
• Model: Elite Gold 750
• MPN: MPX-7505-AFAG-BEU
• EAN: 4719512162361
• Total power: 750 W
• 80 PLUS certification: 80 PLUS Gold (>=90% efficiency at typical load)
• ATX version: ATX 12V Ver. 3.1 (PCIe 5.1 ready)
• Cabling: Fully modular
• Form factor: ATX

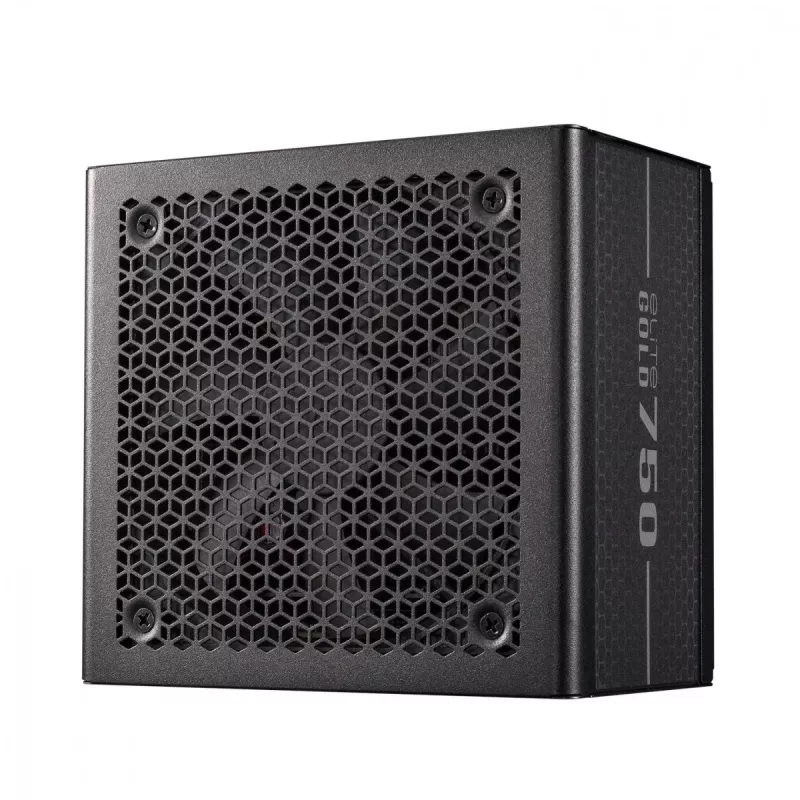

• Fan: 120 mm rifle bearing

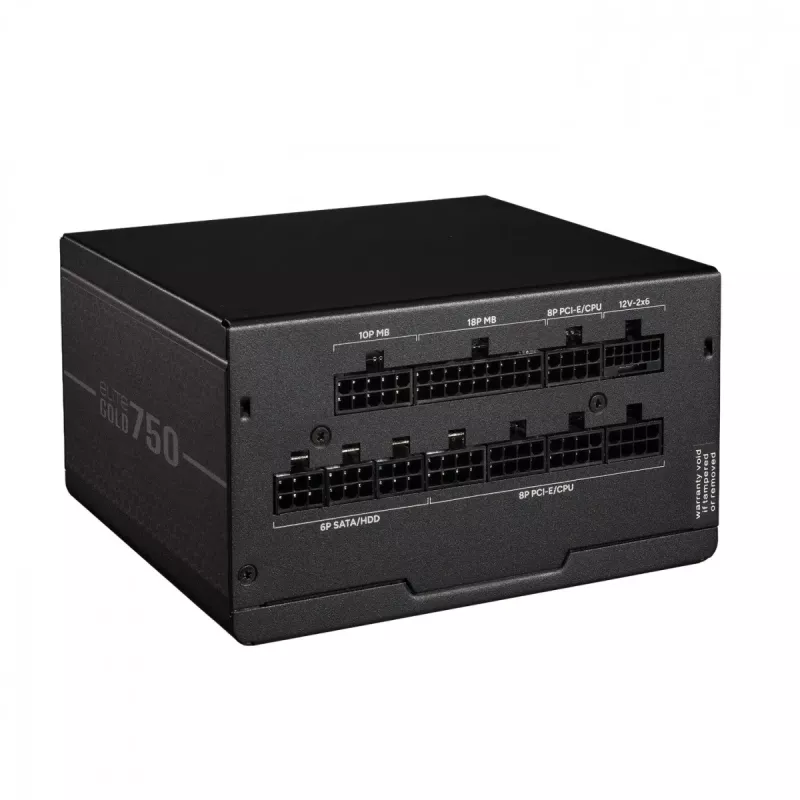

• Connectors: 1x 24-pin ATX, 1x EPS 4+4-pin CPU, 2x PCIe 6+2-pin, 1x 12V-2x6 (12VHPWR), 4x SATA, 2x peripheral (Molex)
• PFC: Active
• Input: 100-240 V, 50-60 Hz
• Operating temperature: 0-40 degC
• MTBF: >100,000 hours
• Protections: OVP, UVP, OPP, OTP, SCP
• Dimensions (L x W x H): 140 x 150 x 86 mm
• Colour: Black
• Warranty: 10 years

How to use

Mount the PSU in your ATX chassis and connect only the modular cables required by your system: the 24-pin motherboard cable, the EPS 4+4-pin CPU cable, and the appropriate PCIe 6+2-pin or native 12V-2x6 cable for your graphics card. Attach SATA and peripheral cables for drives and accessories, then switch on the rear power toggle.

Recommendations

For most single-GPU gaming and creator builds, the Elite Gold 750 offers an ideal balance of efficiency, quiet cooling and modern ATX 3.1 / 12V-2x6 connectivity. Use the native 12V-2x6 cable with current-generation graphics cards for a clean, adapter-free installation.
