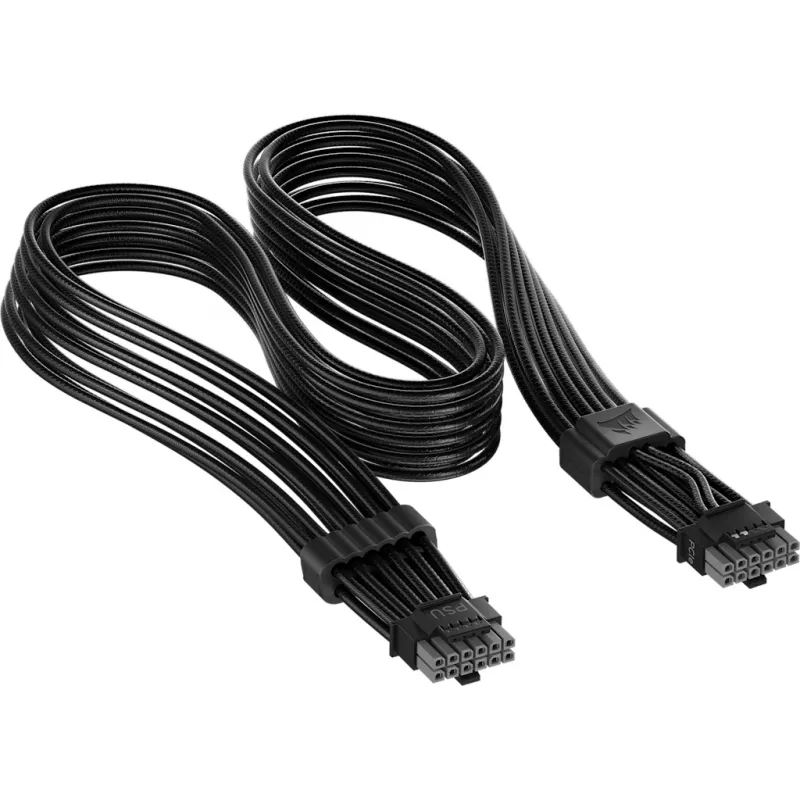

Corsair ThermalProtect cable de alimentación universal PCIe 5.1 600W 12V - Negro

The Corsair ThermalProtect Universal PCIe 5.1 600W 12V Power Cable is a premium individually sleeved cable designed to deliver reliable power to high-end graphics cards. Engineered for Corsair Type 4 PSUs and compatible with NVIDIA GeForce RTX 40 Series GPUs, this cable ensures stable and efficient power delivery with enhanced thermal resistance.

Advantages

This cable features a 12+4pin (12VHPWR) connector on the GPU side and dual 8-pin PCIe connectors on the PSU side, providing a clean and direct connection. The premium individually sleeved design offers high flexibility for easy routing in tight spaces, while the 16 AWG tinned copper conductors and high-temperature resistant PVC insulation ensure durability and safety. The 650 mm length is ideal for most mid-tower and full-tower cases.

Suitable for

• NVIDIA GeForce RTX 4090, RTX 4080, RTX 4070 Ti and other PCIe Gen 5.0 graphics cards
• Corsair Type 4 PSUs including RMx, RM, HX, HXi, AX, AXi, SF, and CX-F series
• High-performance gaming and workstation builds requiring 600W power delivery

Key specifications

• Cable Type: 12VHPWR PCIe Gen 5 Power Cable
• Power Rating: 600W
• Connector 1 (GPU): 1x 12+4pin (12VHPWR)
• Connector 2 (PSU): 2x 8-pin PCIe (Type 4)
• Cable Length: 650 mm
• Sleeving Type: Premium Individually Sleeved
• Color: Black
• Wire Gauge: 16 AWG
• Standard Compliance: PCIe Gen 5.0
• Voltage Rating: 12V
• Conductor Material: Tinned Copper
• Insulation Material: High-temperature resistant PVC
• Connector Material: High-density plastic with metal contacts

Recommendations

For optimal performance, ensure your PSU has two available 8-pin PCIe outputs. This cable is designed for direct power delivery to the GPU and should not be used with adapters or extensions. Always verify compatibility with your specific PSU model and GPU before installation.
