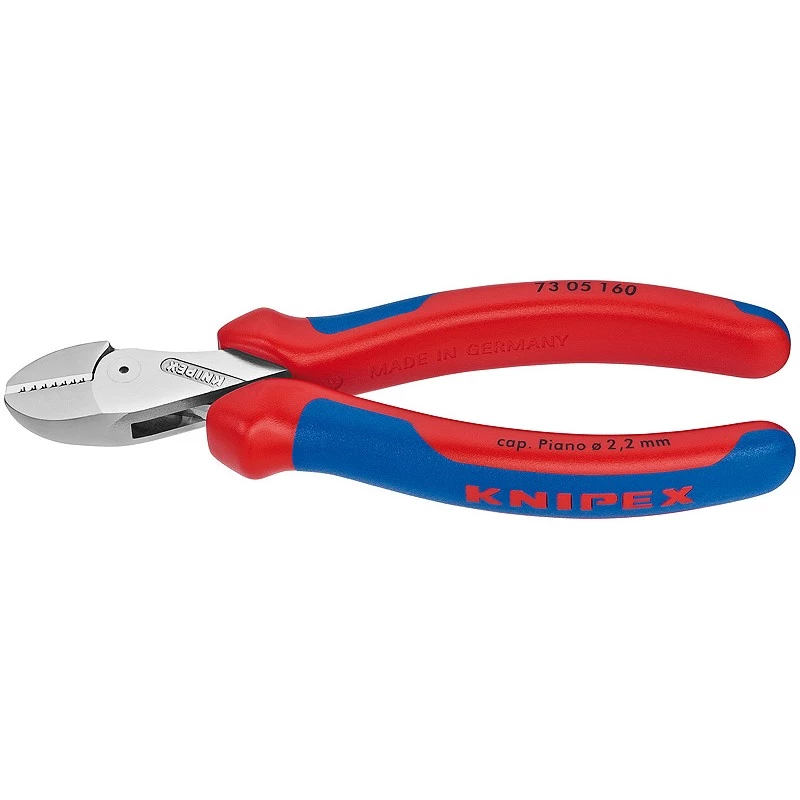

Cortaalambres diagonal Knipex X-Cut 73 05 160

The Diagonal pliers Knipex X-Cut 73 05 160 are compact, lightweight cutting pliers made from chrome vanadium heavy‑duty steel. At 160 mm length and approximately 175 g weight, they combine stability and ease of handling. Their box‑joint design and doubly supported joint axis provide high stability for demanding cutting tasks while the optimised cutting edge angle and transmission ratio reduce the force needed for cutting.

Advantages

These diagonal pliers cut very fine strands, multi‑core cables and piano wire precisely. They require up to 40% less cutting force compared with standard diagonal cutters of the same length and offer a large opening width to handle thicker cables. The compact, low‑weight construction and plastic handles ensure comfortable handling during assembly, maintenance and production work.

Suitable for

• Cutting fine copper wires and strands
• Cutting multi‑core cables and thicker cables
• Cutting piano wire and other hard wires
• Use in assembly, maintenance and production

Key specifications

• Brand: Knipex
• Model: X‑Cut 73 05 160 (MPN 73 05 160)
• EAN: 4003773075134
• Length: 160 mm
• Weight: ≈175 g
• Material: Chrome vanadium heavy‑duty steel, forged and oil‑hardened
• Design: Box‑joint with doubly supported joint axis
• Cutting performance: High; up to 40% less force required vs standard diagonal cutters of same length

How to use

Position the pliers so the material to be cut is placed close to the joint for highest cutting performance. Squeeze the handles evenly until the material is severed. For cutting very fine strands or piano wire, use controlled, steady pressure. Do not use the pliers as a hammer or for prying, and avoid cutting hardened materials beyond the tool’s specification.

Recommendations

Keep cutting edges clean and free of residues; lubricate the joint occasionally with a drop of oil to maintain smooth movement. Inspect the cutting edges periodically and replace the tool if chips or excessive wear appear.
