Cougar Unity240-FB ventilador single-frame 240 ARGB PWM directo, 120 mm, 700–2500 RPM, FDB, 5,4 mmH₂O, negro

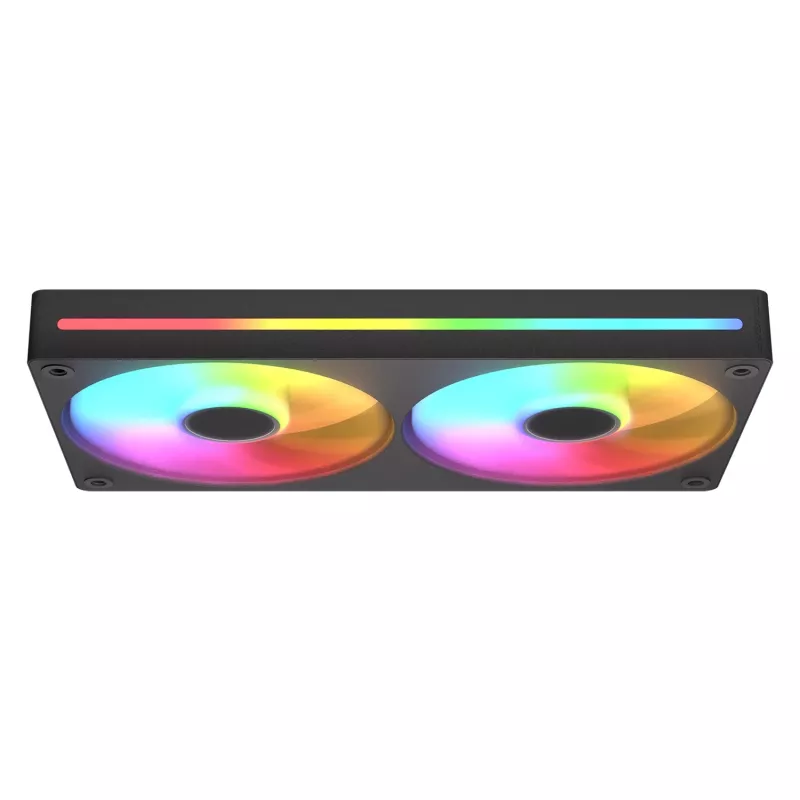

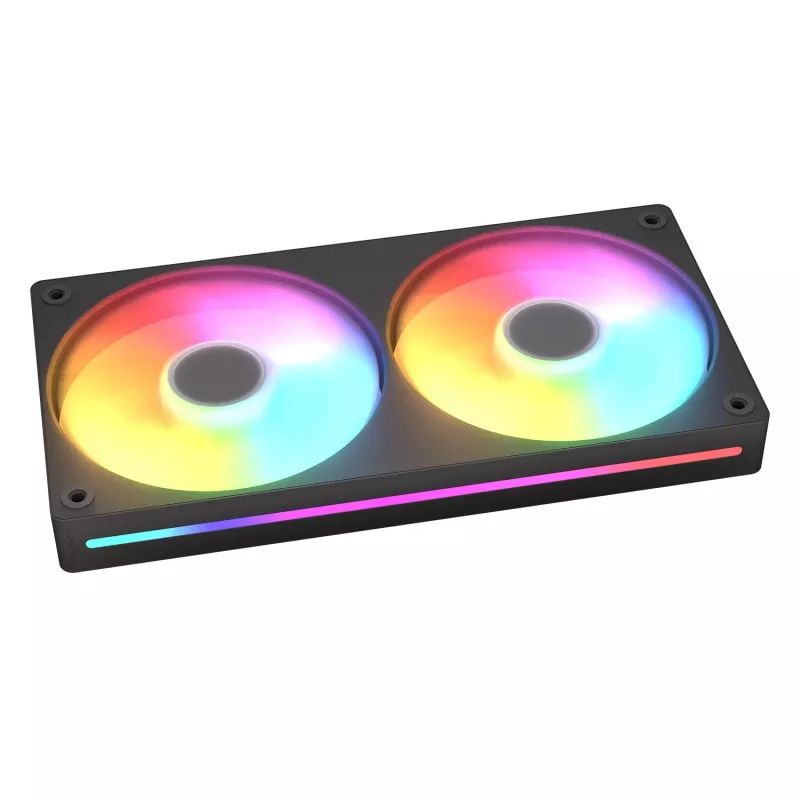

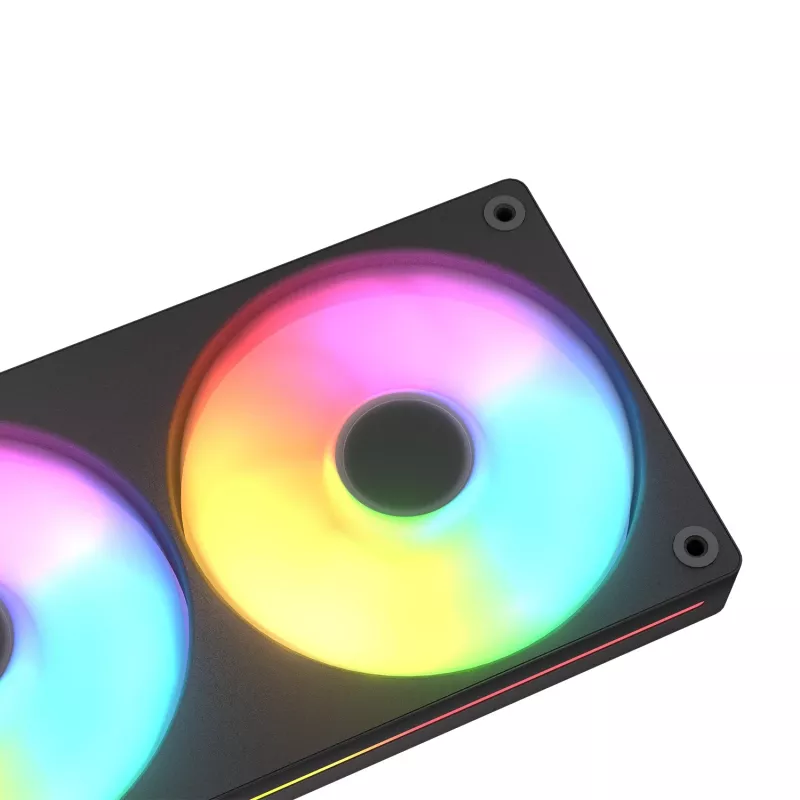

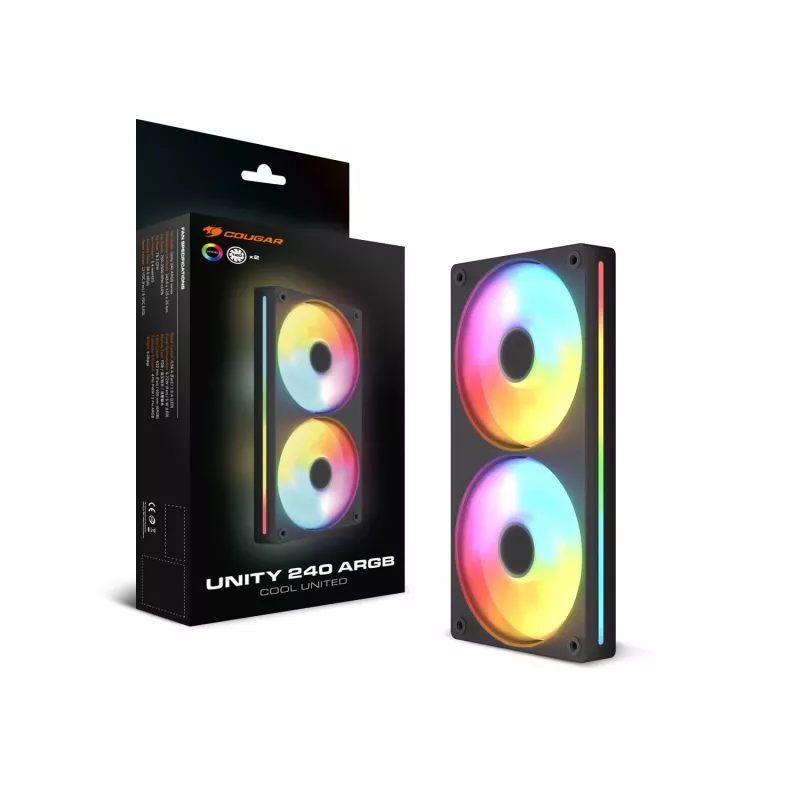

Cougar Unity240-FB is a single-frame 240 ARGB PWM forward fan assembly designed for PC cooling. The unit integrates two 120 mm fans in a single frame with fluid dynamic bearings and a speed range of 700–2500 RPM, offering adjustable airflow and addressable RGB lighting. Its slim profile and black finish make it suitable for installation on radiators or as case fans to improve airflow while maintaining compact dimensions.

Advantages

The single-frame design simplifies installation by connecting multiple fans as a single unit, reducing cable clutter and easing setup. PWM control provides precise modulation of fan speed based on system temperature, balancing cooling performance and noise. Addressable RGB side strips deliver vivid lighting effects, while rubber corners absorb vibrations to minimize operational noise. Only two cables are required for powering and controlling multiple fans, and the assembly supports synchronization of ARGB lighting and fan speed with compatible motherboard software.

Suitable for

• Cooling PC radiators (120 mm x2 configuration)
• Improving case airflow in mid-tower and full-tower systems
• Builds requiring synchronized ARGB lighting and PWM fan control

Key specifications

• Fan type: single-frame dual 120 mm forward fans
• Speed range: 700–2500 RPM (PWM control)
• Maximum airflow: 78.2 CFM
• Maximum static pressure: 5.4 mmH₂O
• Bearing type: Fluid Dynamic Bearing (FDB)
• Dimensions (L×W×H): 243.6 × 25 × 125 mm
• Color: black

How to use

Mount the single-frame unit in the intended location (radiator or case fan positions) using standard 120 mm mounting points. Connect the two required cables to the system: the PWM fan header for speed control and the ARGB header for addressable lighting, or use compatible controllers as needed. Configure fan curves and lighting effects through the motherboard software or external controller to match thermal and aesthetic preferences.

Recommendations

For best results, install the unit on radiator mounts or front/rear intake/exhaust positions where the 120 mm dual configuration aligns with airflow direction. Ensure compatible motherboard headers (ARGB and PWM) are available for full functionality; if unavailable, use a separate ARGB controller and a PWM hub. Regularly check that mounting screws and rubber damping corners are seated correctly to maintain low vibration and noise levels.
