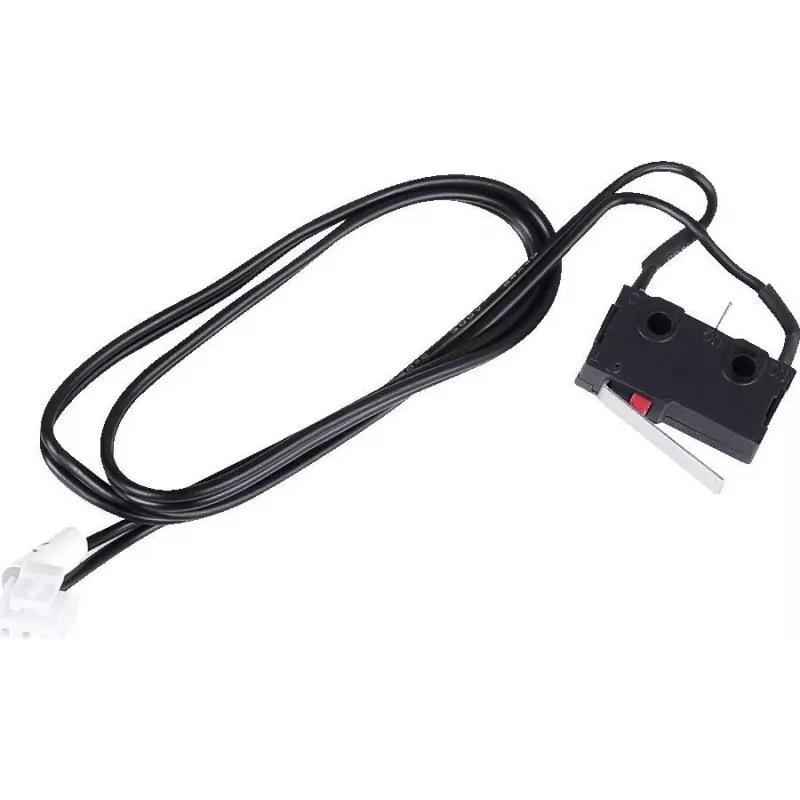

Creality HI Final de carrera del eje Y para impresora 3D 2104010154

Mechanical limit switch for Creality 3D printers, providing reliable homing and position detection for the Y-axis. Its lever arm with roller ensures precise triggering and long service life.

Advantages

SPDT contact configuration allows use as normally open or normally closed. Compatible with CR-10, Ender-3, and Ender-5 series. Durable construction with over 1,000,000 cycles.

Suitable for

• Creality CR-10 series 3D printers
• Creality Ender-3 series 3D printers
• Creality Ender-5 series 3D printers

Key specifications

• Switch configuration: SPDT (NO/NC)
• Actuator: Lever arm with roller
• Connector: JST XH 2.54mm, 3-pin
• Operating voltage: 5V DC, max current 1A
• Mounting: Screw mount

Recommendations

Use as a direct replacement for Creality endstop switches to restore accurate homing and prevent over-travel.
