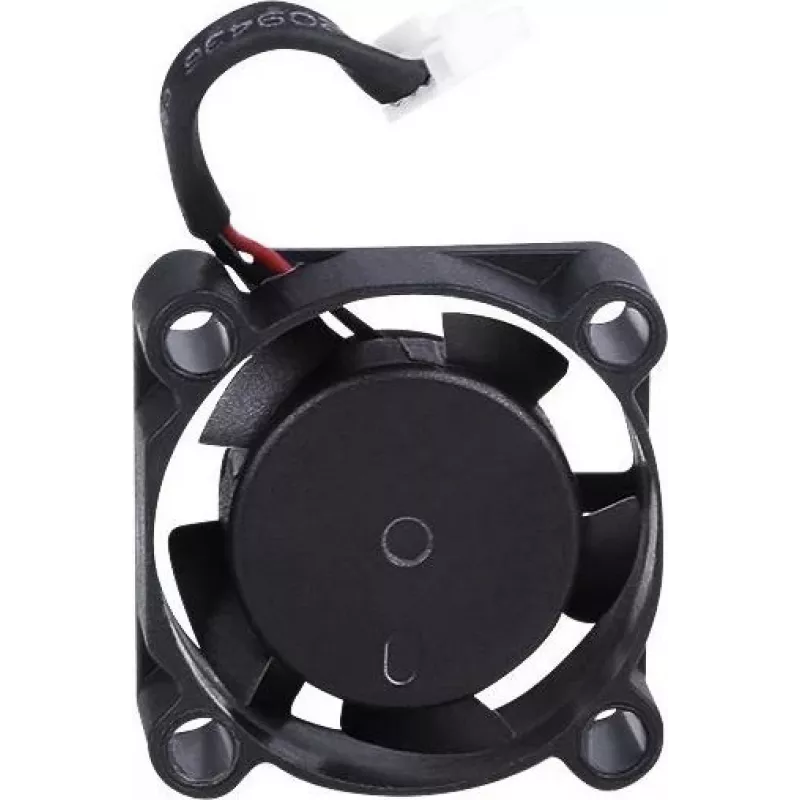

Creality HI Ventilador axial de refrigeración del cuello para impresora 3D 3205010417

Overheating in the hotend area can cause filament jams, stringing, and poor print quality. This axial cooling fan provides focused airflow to the throat and heatsink of compatible Creality 3D printers, keeping temperatures stable during long prints.

Who is it for

Owners of Creality Ender 3, CR-10, and similar models who need a direct replacement or spare cooling fan for the hotend assembly.

Main features

• 24V DC axial fan designed for hotend and extruder cooling
• Compact 40x40x10 mm form factor fits standard Creality mounts
• 2-pin JST-XH connector for easy plug-in installation
• Quiet operation at 27 dBA with 6.5 CFM airflow
• Durable PBT plastic frame and sleeve bearing for long life

Specifications

• Fan Type: Axial Cooling Fan
• Application: 3D Printer Hotend/Extruder Cooling
• Rated Voltage: DC 24V
• Rated Current: 0.1A
• Power Consumption: 2.4W
• Fan Dimensions: 40 x 40 x 10 mm
• Connector Type: 2-Pin JST-XH
• Cable Length: 120 mm
• Bearing Type: Sleeve Bearing
• Fan Speed: 7000 RPM (±10%)
• Airflow: 6.5 CFM
• Noise Level: 27 dBA
• Material: PBT Plastic
• Lifespan (MTTF): 30,000 hours
• Mounting Hole Spacing: 32 mm
• Operating Temperature: -10°C to 70°C

Tips

Check your printer's voltage and connector type before ordering. This fan is a direct fit for many Creality models but may require soldering or an adapter for non-standard setups.
