Cuadro de contadores completo Hager ZK53Q7NT universZ 1350x500 mm trifásico 4 posiciones de contador 10 mm² con función de corte

Equipped with a 10 mm² main conductor cross-section and integrated disconnecting function, this Hager universZ complete metering field delivers reliable power distribution in a compact 1350x500mm footprint.

Overview

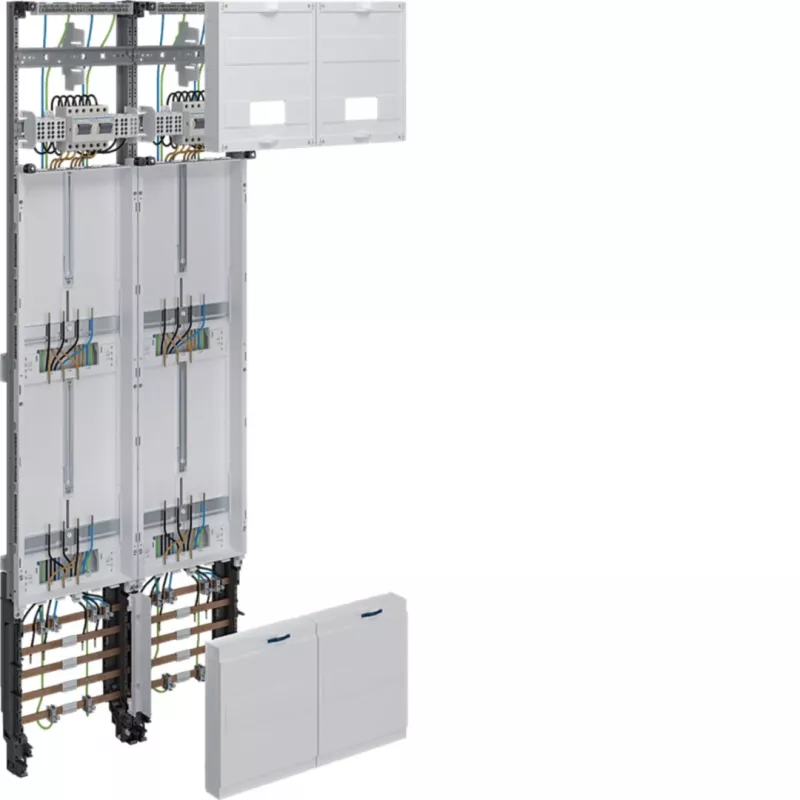

The Hager ZK53Q7NT is a complete metering field from the universZ series, designed for integration into meter cabinets. It accommodates up to four electronic household meters (eHZ) on a 3-phase system with a rated current of 63 A. The unit features a 5-pole busbar system (L1, L2, L3, N, PE) and screw terminals for secure connections.

What stands out

• Integrated disconnecting function for safe isolation
• Supports up to 4 eHZ meter positions
• 5-pole busbar system for balanced distribution
• Sheet steel construction for durability
• Complies with DIN VDE 0603-1 and DIN 43870-1

Technical details

• Series: universZ
• Product type: Complete metering field
• Number of meter positions: 4
• Number of phases: 3
• Main conductor cross-section: 10 mm²
• Rated current: 63 A
• Disconnecting function: Integrated
• Mounting type: For meter cabinets
• Meter type compatibility: eHZ (electronic household meter)
• Busbar system: 5-pole (L1, L2, L3, N, PE)
• Terminal type: Screw terminals
• Material: Sheet steel
• Protection class (internal): IP2XC
• Height: 1350 mm
• Width: 500 mm
• Depth: 160 mm
• Distribution rows: 2 (2x 12 pitch units)

Our verdict

A robust and compliant metering field for professional electrical installations, offering ample meter capacity and a built-in disconnecting function in a standard cabinet size.
