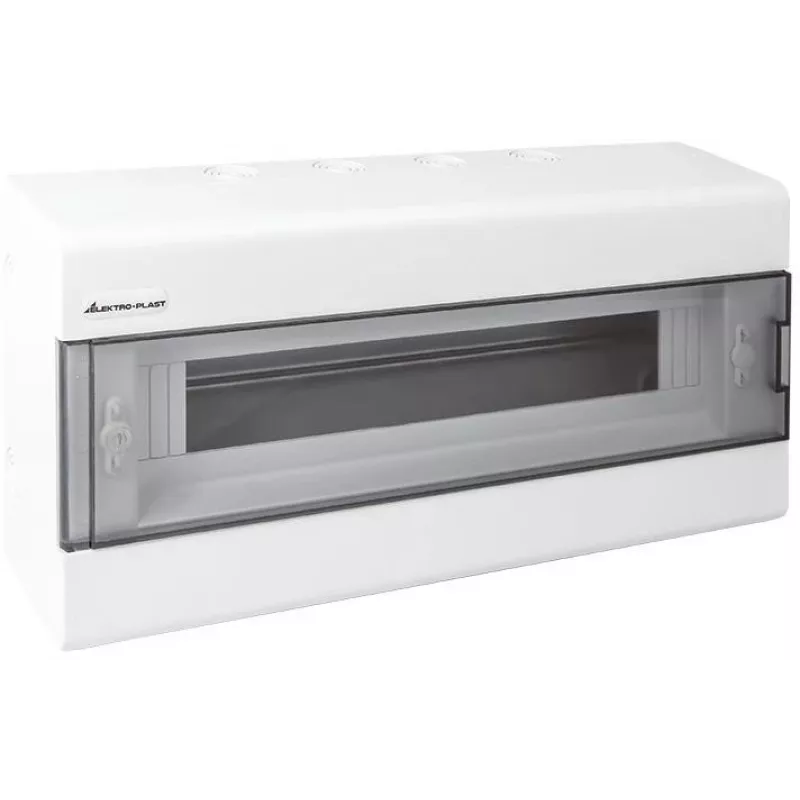

Cuadro modular 1x18 de superficie (N+PE) IP40 SRn-18 ELEKTRO-PLAST OPATÓWEK

The ELEKTRO-PLAST OPATÓWEK SRn-18 modular distribution board is a high-quality surface-mounted enclosure designed for electrical installations requiring 18 module positions. It comes pre-equipped with neutral (N) and protective earth (PE) busbars, ensuring safe and organized distribution of electrical circuits. The board features a transparent, hinged door for easy access and monitoring, and is made from durable ABS plastic with an IP40 protection rating, making it suitable for indoor use.

Advantages

This distribution board offers a robust and reliable solution for residential and commercial electrical systems. Its surface-mounted design simplifies installation, while the integrated N and PE busbars reduce wiring time and improve safety. The transparent door allows quick visual inspection without opening the enclosure, and the IK07 impact resistance ensures durability in demanding environments.

Suitable for

• Residential electrical distribution
• Small commercial installations
• Lighting and power circuits
• Indoor electrical panels

Key specifications

• Product Type: Modular Distribution Board
• Mounting Type: Surface-mounted
• Number of Modules: 18
• Number of Rows: 1
• IP Protection Rating: IP40
• Included Terminals: Neutral (N) and Protective Earth (PE) busbars
• Enclosure Material: High-quality ABS plastic
• Enclosure Color: White (RAL 9003)
• Door Type: Transparent, hinged
• Rated Insulation Voltage (Ui): 500 V AC
• Rated Current (In): Up to 63 A
• Glow Wire Test Temperature: 650 °C
• Operating Temperature Range: -5°C to +40°C
• Compliance Standards: PN-EN 61439-1, PN-EN 61439-3
• Application Environment: Indoor
• Impact Resistance Rating: IK07

Recommendations

For optimal performance, ensure that the distribution board is installed by a qualified electrician and that all connections comply with local electrical codes. The board is designed for indoor use only and should be protected from moisture and extreme temperatures.
