Cubierta de carcasa Rittal SV 3427.030, gris poliamida, accesorio para sistema SV

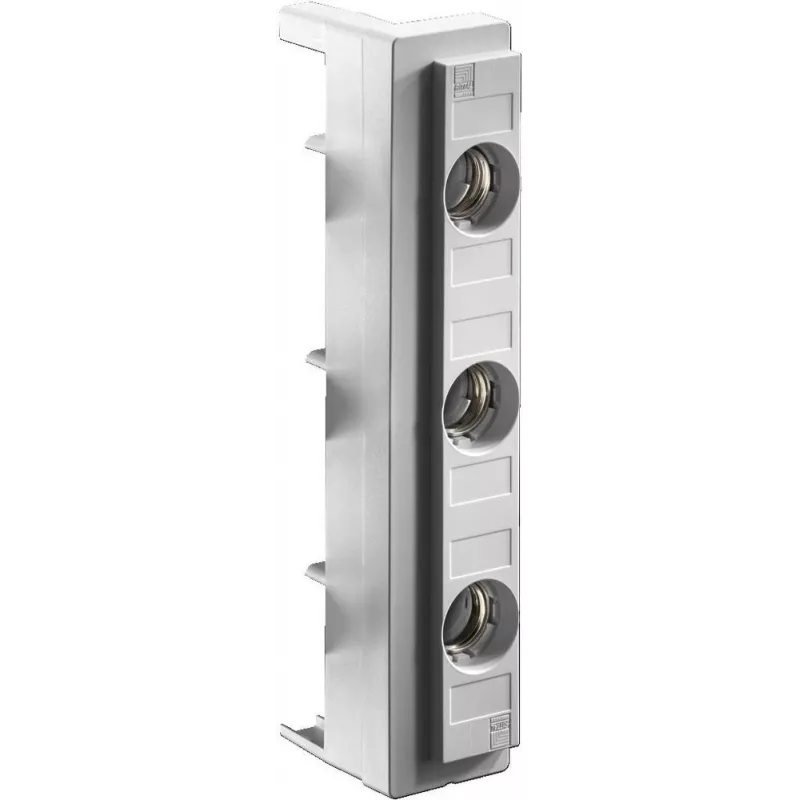

Rittal SV 3427.030 is a grey polyamide enclosure cover designed as an accessory for the Rittal SV system. Intended to match SV series dimensions and mounting points, the cover provides a durable, non-conductive finishing element for industrial control cabinets and electrical housings. The design includes contact hazard protection and an integrated cable duct that extends the connection space by 14 mm at the side, allowing safer routing of conductors and improved organization of incoming cables.

Advantages

The polyamide construction offers mechanical strength and electrical insulation while resisting common industrial wear and environmental factors. The cover is produced to align with SV system mounting points for straightforward replacement or retrofitting. Built-in contact hazard protection reduces the risk of accidental contact with live components, and the side cable duct increases usable connection depth without modifying the enclosure structure.

Suitable for

Key specifications

How to use

Position the cover to align with the SV system mounting points and secure it using the enclosure's standard fastening method. Route incoming cables through the integrated side cable duct to gain the additional 14 mm of connection space and to maintain separation from live components. Ensure that the cover fully engages with the enclosure frame to maintain contact hazard protection and prevent unintended access to interior components.
