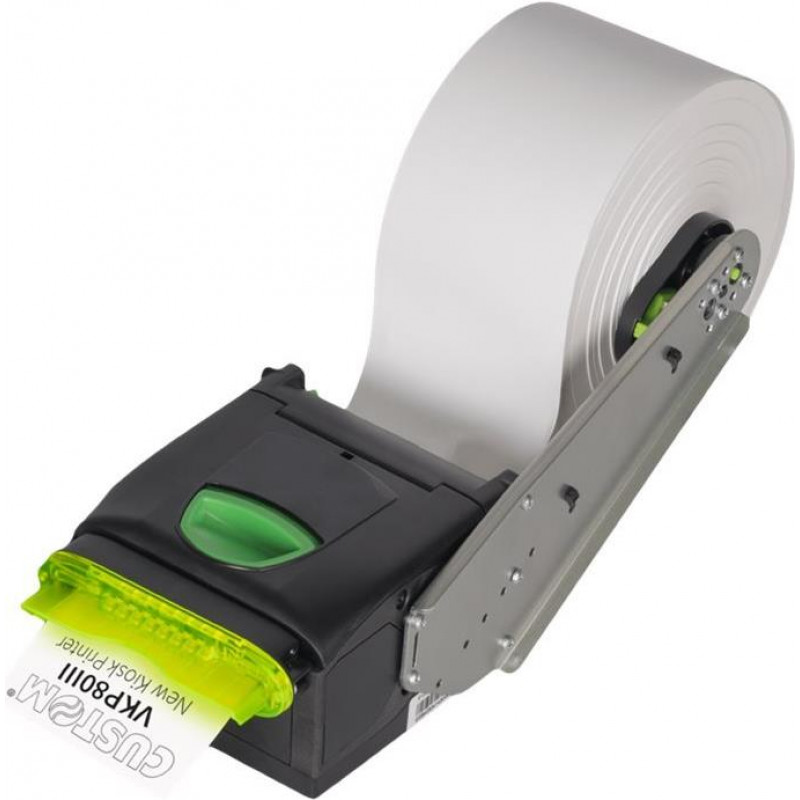

Impresora VKP80III USB RS232 conector trasero

The VKP80III stands apart from typical receipt printers by pairing a blazing 250 mm/s print speed with a rugged auto-cutter rated for one million cuts, all in a compact rear-connection design built for high-volume point-of-sale and kiosk environments. Where many printers slow down or wear out under continuous use, this model maintains crisp 200 dpi output on 80 mm thermal paper while offering both USB and RS232 interfaces for flexible integration.

Highlights

• Direct thermal printing at 200 dpi (8 dots/mm) for sharp, readable receipts and tickets.
• Exceptional throughput: up to 250 mm/s, reducing customer wait times.
• Dual connectivity: USB 2.0 Full Speed and RS232 serial, with rear cable exit for tidy installations.
• Auto-cutter with partial and full cut modes, engineered for 1,000,000 cuts.
• Wide operating temperature range from -20°C to +70°C, suitable for demanding environments.
• Supports 1D and 2D barcodes including QR codes, PDF417, and DataMatrix.

In daily use

Operators will appreciate the VKP80III's robust paper handling: it accepts 80 mm wide rolls up to 180 mm diameter (with external holder) and paper thickness from 60 to 100 µm. Sensors for paper end, black mark, ticket presence, cover open, and near paper end help prevent jams and downtime. The printer's 4 MB flash and 2 MB RAM allow for storing logos and custom fonts, while the CUSTOM/POS emulation ensures compatibility with most POS software. With an MTBF of 450,000 hours and a print head life of 100 km, this printer is built for continuous service.

Full specifications

• Print technology: Direct thermal
• Resolution: 200 dpi (8 dots/mm)
• Speed: Up to 250 mm/s
• Paper width: 80 mm
• Paper thickness: 60–100 µm
• Roll diameter: Up to 180 mm (external holder)
• Interfaces: USB 2.0 Full Speed, RS232 (rear connection)
• Cutter: Auto-cutter (partial/full), 1,000,000 cuts
• Print head life: 100 km
• Sensors: Paper end, black mark, ticket presence, cover open, near paper end
• Emulation: CUSTOM / POS
• Power: 24 VDC ±10%
• Operating temperature: -20°C to +70°C
• Barcodes: 1D (UPC-A, EAN13, CODE39, CODE128), 2D (PDF417, DataMatrix, QR code)
• Memory: 4 MB flash, 2 MB RAM
• MTBF: 450,000 hours

Final note

For businesses that demand speed, reliability, and flexible connectivity in a receipt printer, the VKP80III delivers a professional solution that keeps pace with the busiest checkout lines.
