D-Link DIS-210G-12P switch industrial Gigabit Smart con 8 puertos PoE+ y 4 ranuras SFP

The D-Link DIS-210G-12P is a smart industrial Gigabit switch designed for harsh environments. It features 8 PoE+ ports with a total power budget of 240W and 4 SFP slots for fiber uplinks. With a fanless design, DIN-rail mounting, and an operating temperature range of -40°C to 75°C, it is ideal for industrial automation, surveillance, and outdoor deployments.

Advantages

Robust industrial-grade construction with IP30 rating, dual power input for redundancy, and advanced management features including web GUI, CLI, SNMP, and VLAN/QoS support. Energy Efficient Ethernet (IEEE 802.3az) reduces power consumption.

Suitable for

• Industrial automation networks
• IP surveillance systems
• Outdoor and harsh environment installations
• Smart manufacturing and process control

Key specifications

• 8 x 10/100/1000BASE-T PoE+ ports (IEEE 802.3af/at)
• 4 x 100/1000BASE-X SFP ports
• Total PoE power budget: 240 W
• Switching capacity: 24 Gbps
• Forwarding rate: 17.86 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 9 KB
• Management: Web GUI, CLI, SNMP, Telnet, HTTP/HTTPS

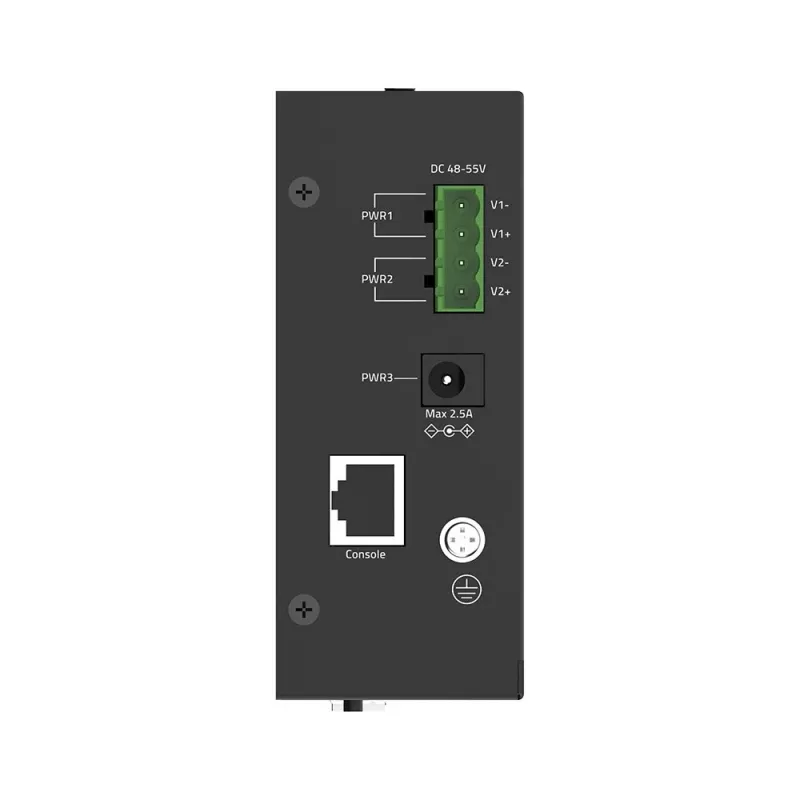

• Industrial features: DIN rail mount, fanless, dual power input
• Operating temperature: -40°C to 75°C
• IP rating: IP30
• Power input: 12-58 V DC (non-PoE), 51-58 V DC (PoE)
• VLAN support: IEEE 802.1Q
• QoS support: IEEE 802.1p
• Spanning Tree: STP, RSTP, MSTP
• Energy Efficient Ethernet: IEEE 802.3az

Recommendations

For reliable and high-performance networking in demanding industrial environments, the D-Link DIS-210G-12P offers a comprehensive feature set with PoE+ capability and robust management options. Ensure proper power supply and ventilation for optimal operation.
