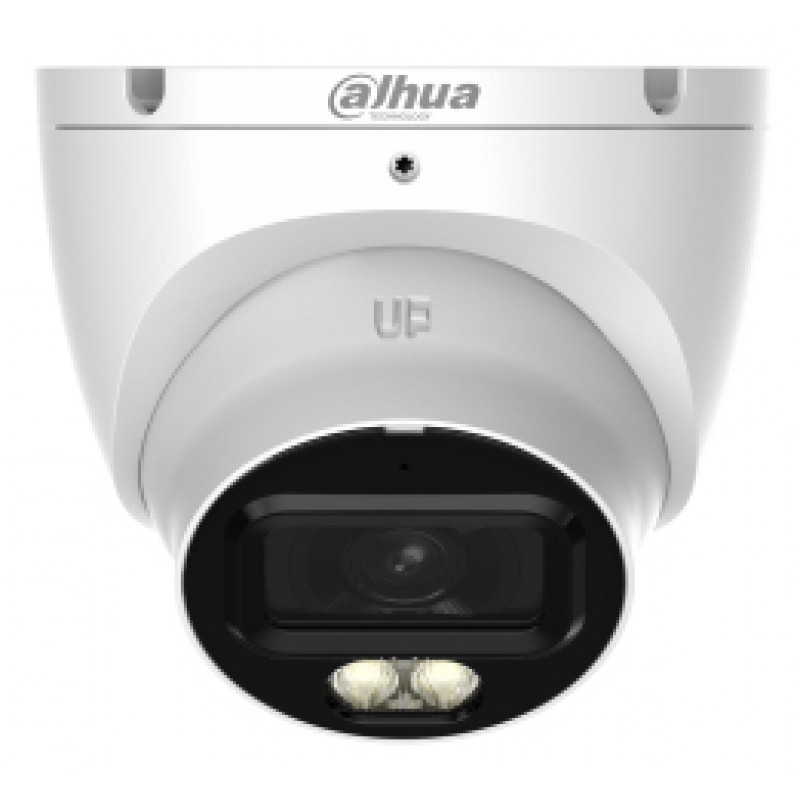

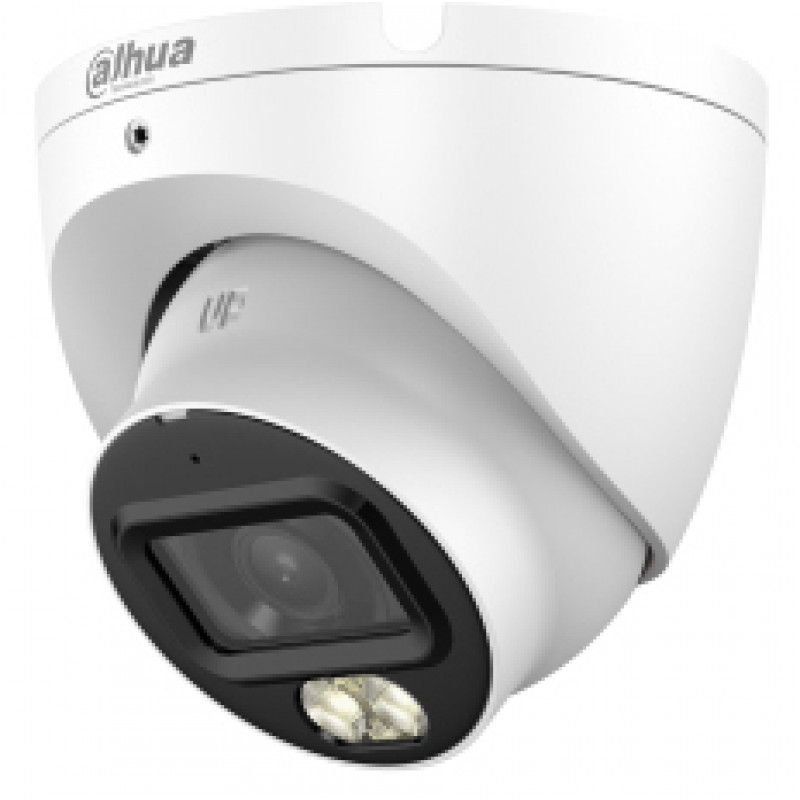

DAHUA HAC-HDW1500TLM-IL-A-0280B-S3-DIP cámara domo eyeball HDCVI 4 en 1 de 5MP con Smart Dual Light y micrófono integrado

Upgrading an analogue surveillance system usually means replacing both cameras and cabling, but the DAHUA HAC-HDW1500TLM-IL-A-0280B-S3-DIP changes that equation. This 5MP eyeball dome camera speaks four video languages—HDCVI, AHD, TVI, and CVBS—so it drops onto existing coaxial infrastructure without a costly rewire. Add smart dual-light illumination and a built-in microphone, and you get a camera that not only sees clearly at night but also hears what’s happening.

Highlights

• 5MP resolution (2880 x 1620) for sharp, detailed footage
• 4-in-1 video output: HDCVI, AHD, TVI, CVBS
• Smart dual light: IR up to 20 m and white light up to 20 m
• Built-in microphone for audio recording
• IP67 weatherproof rating for outdoor use
• Fixed 2.8 mm lens with 111° horizontal field of view

In daily use

Installed at an entrance or overlooking a yard, this camera delivers reliable performance day and night. The 2.8 mm lens offers a wide 111° view, reducing blind spots. When motion is detected, the white light can be triggered to deter intruders while capturing full-colour video. The metal front cover and plastic body withstand harsh weather, and the camera operates from -40°C to +60°C, ensuring year-round functionality.

Full specifications

• Image sensor: 1/2.7" CMOS
• Max resolution: 5MP (2880 x 1620)
• Frame rate: 25 fps @ 5MP (CVI)
• Lens: 2.8 mm fixed
• Angle of view: 111° (horizontal)
• Minimum illumination: 0.001 Lux @ F1.6 (colour)
• Video output: 1-channel BNC (switchable CVI/TVI/AHD/CVBS)
• Audio: Built-in microphone
• Night vision: Smart dual light (IR & white light)
• IR distance: Up to 20 m
• White light distance: Up to 20 m
• Dynamic range: DWDR
• Noise reduction: 2D NR
• Ingress protection: IP67
• Power supply: 12V DC ±30%
• Power consumption: Max 3.7W
• Operating temperature: -40°C to +60°C
• Housing material: Metal (front cover) + Plastic (main body)
• Form factor: Eyeball dome

Final note

A practical upgrade path for legacy coax systems, the HAC-HDW1500TLM-IL-A-0280B-S3-DIP pairs modern 5MP clarity with smart dual-light and audio—without the need for new cabling.
