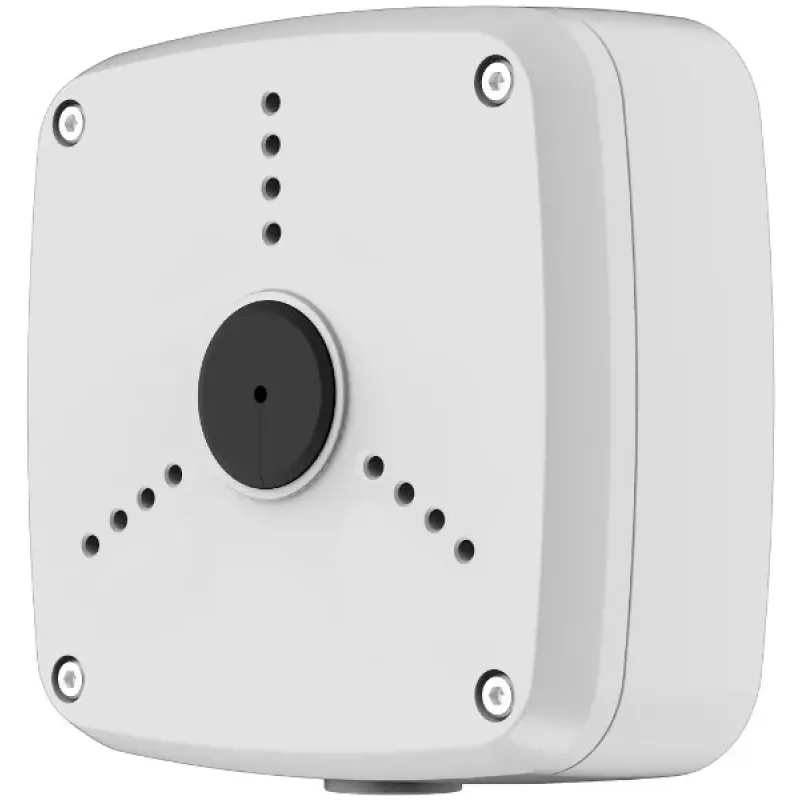

Dahua PFA122 soporte de montaje adaptador para cámaras

The Dahua PFA122 is a high-quality adapter and mounting bracket designed for select Dahua dome, bullet, and turret cameras. Constructed from die-cast aluminum alloy with a powder-coated white finish, it provides a secure and weather-resistant mounting solution for both indoor and outdoor installations. The bracket features integrated cable management and multiple pre-drilled holes for easy camera attachment, ensuring a clean and professional setup.

Advantages

This adapter offers robust construction with IP66 ingress protection, making it suitable for harsh environments. Its compact design (Ø108.0 mm x 28.6 mm) allows for discreet installation while providing ample space for cable connections. The powder-coated surface ensures corrosion resistance, extending the product's lifespan.

Suitable for

• Dahua dome cameras
• Dahua bullet cameras
• Dahua turret cameras
• Indoor and outdoor surveillance systems

Key specifications

• Material: Aluminum (die-cast alloy)
• Color: White
• IP Rating: IP66
• Load Capacity: 1.0 kg (2.2 lb)
• Operating Temperature: -40°C to +60°C (-40°F to +140°F)
• Dimensions: Ø108.0 mm x 28.6 mm
• Weight: 0.25 kg (0.55 lb)
• Mounting Type: Junction Box / Wall Mount
• Installation Environment: Indoor/Outdoor

Recommendations

For optimal performance, ensure compatibility with your specific Dahua camera model. The PFA122 is designed to provide a secure mount and protect cable connections from the elements. Professional installation is recommended for outdoor use.
