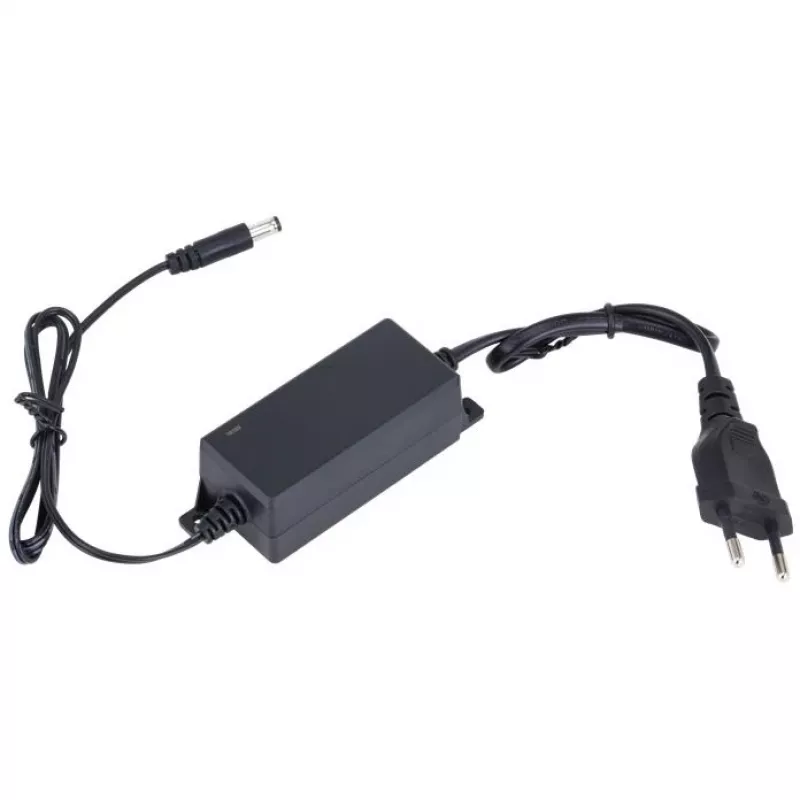

DAHUA PFM325D-1210EN Fuente de alimentación 12V 1A

The DAHUA PFM325D-1210EN is a high-quality AC/DC power adapter designed to provide reliable and stable power to a wide range of devices, including CCTV cameras, DVRs, NVRs, and LED strips. With an output of 12V DC and 1A (12W), this power supply ensures efficient and safe operation for your equipment.

Advantages

This power adapter offers multiple protection features including Over Current Protection (OCP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP), safeguarding your connected devices against electrical faults. Its high efficiency and low power consumption make it an energy-saving choice. The compact design and 1-meter DC output cable provide flexibility in installation.

Suitable for

• CCTV cameras
• DVRs and NVRs
• LED strips
• Other 12V DC devices requiring up to 1A

Key specifications

• Product Type: AC/DC Power Adapter
• Input Voltage: 100-240V AC
• Input Frequency: 50/60 Hz
• Output Voltage: 12V DC
• Output Current: 1A
• Output Power: 12W
• DC Connector: 5.5mm x 2.1mm Barrel Plug, Center Positive
• Protection: OCP, OVP, SCP
• Operating Temperature: -30°C to +70°C
• Storage Temperature: -40°C to +85°C
• Operating Humidity: 5% to 95% RH (non-condensing)
• Certifications: CE, FCC
• Housing Material: PC (Polycarbonate)
• Color: Black
• DC Output Cable Length: Approx. 1 meter
• AC Input Plug Type: Standard 2-pin (Region Dependent)

Recommendations

For optimal performance, ensure that the total current draw of connected devices does not exceed 1A. This power supply is intended for indoor use only. Always verify the polarity and connector size before connection.
