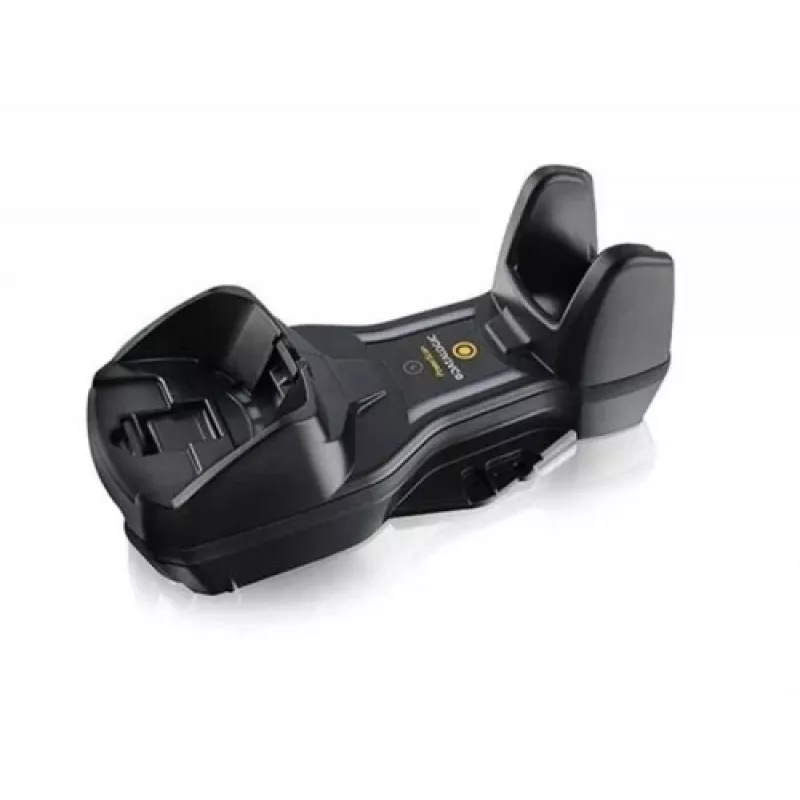

BC9630 ESTACIÓN BASE/CARGADOR BT MULTI-INTERFAZ (RS-232 USB)

The Datalogic BC9630-BT is a versatile base station and charger that provides reliable Bluetooth connectivity and charging for Datalogic Gryphon series scanners. Its multi-interface support (RS-232 and USB) ensures compatibility with a wide range of host systems, while the integrated charging cradle keeps your scanners ready for use. With a Bluetooth range of up to 100 meters in open air, this base station offers exceptional mobility and flexibility in various work environments.

Advantages

The BC9630-BT combines charging and communication in a single compact unit, reducing clutter and simplifying setup. It supports both USB HID keyboard and USB COM emulation, making it easy to integrate into existing systems without additional drivers. The base station features clear LED indicators for power, charge, and link status, allowing users to quickly verify operational status at a glance. Its desk or wall mount options provide installation flexibility, and the dark grey/black finish blends seamlessly into professional settings.

Suitable for

• Retail point-of-sale environments requiring cordless barcode scanning.
• Warehouse and logistics operations needing long-range Bluetooth connectivity.
• Healthcare facilities where hygiene and mobility are critical.
• Manufacturing and inventory management applications.
• Any application using Datalogic Gryphon GM4100, GBT4100, GM4400, GBT4400, GM4500, or GBT4500 series scanners.

Key specifications

• Wireless technology: Bluetooth Class 1 with up to 100 m range.
• Host interfaces: RS-232, USB (HID Keyboard, USB COM Emulation).
• Charging capability for compatible Datalogic Gryphon scanners.
• Power source: External 10 VDC power supply (sold separately).
• LED indicators: Power, charge, link status.
• Mounting options: Desk or wall mount.
• Operating temperature: 0°C to 50°C (32°F to 122°F).
• Storage temperature: -20°C to 70°C (-4°F to 158°F).
• Humidity: 5% to 95% non-condensing.
• Certifications: CE, FCC, RoHS.

Recommendations

For optimal performance, pair the BC9630-BT with a compatible Datalogic power supply and ensure the scanner is properly seated in the charging cradle. Position the base station in a central location to maximize Bluetooth coverage. Use the wall mount option in fixed workstations to save desk space and keep the scanner within easy reach.
