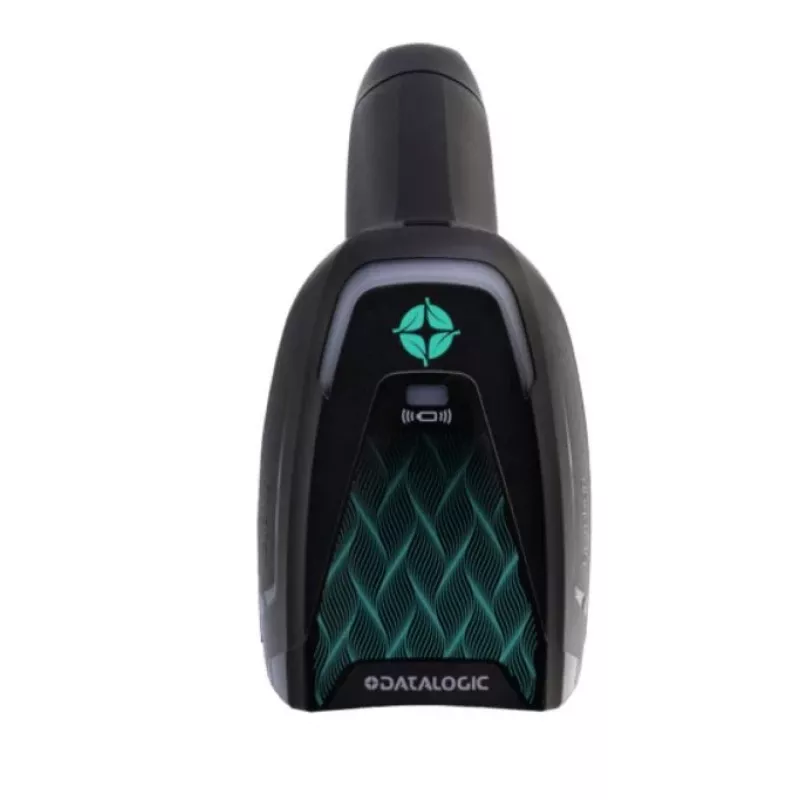

GRYPHON GM4600 2D High Performance Dual-Sensor 433MHz W

Slow, unreliable barcode scanning can bottleneck retail checkout, warehouse picking, and logistics operations. The Datalogic Gryphon GM4600 eliminates these delays with dual-sensor technology that captures both 1D and 2D codes instantly, even from smartphone screens or damaged labels. Its 433 MHz cordless link keeps you moving up to 30 meters from the base, while the rugged IP52-rated housing shrugs off drops and dust in demanding environments.

Who is it for

This scanner is built for retail associates, warehouse staff, and field service technicians who need fast, accurate reading of high-density, poorly printed, or mobile barcodes. It excels in point-of-sale, inventory management, and light industrial applications where mobility and reliability are critical.

Main features

• Dual-sensor area imager reads 1D, 2D, postal, and stacked codes with high performance
• Datalogic STAR 433 MHz cordless system provides reliable wireless connectivity up to 30 m (98.4 ft)
• High-capacity 2100 mAh lithium-ion battery delivers up to 60,000 scans per charge
• Rugged design withstands multiple 1.8 m (6 ft) drops to concrete and is IP52 rated against dust and moisture
• Datalogic 'Green Spot' technology and 4-dot aimer with center cross ensure accurate targeting and good-read confirmation
• Multi-interface base supports USB, RS-232, and Keyboard Wedge for flexible host connectivity

Specifications

• Scanner type: Area Imager (1D/2D)
• Connectivity: Datalogic STAR Cordless System, 433.92 MHz
• Radio range: Up to 30 m (98.4 ft) in open air
• Battery: Lithium-Ion, 2100 mAh, up to 60,000 scans per charge, 4-hour charge time
• Host interfaces: USB, RS-232, Keyboard Wedge Multi-Interface
• Motion tolerance: 25 IPS (63.5 cm/s)
• Minimum print contrast ratio: 25%
• Drop specification: Withstands multiple drops from 1.8 m (6 ft) to concrete
• IP rating: IP52
• Operating temperature: 0 to 50 °C (32 to 122 °F)
• Illumination: Red LED (626 nm)
• Aiming system: 4-Dot Aimer with Center Cross
• Decoding feedback: Beeper, Datalogic 'Green Spot' Technology, Good Read LED
• Colour: Black

Tips

Pair the scanner with the included base station and charge it fully before first use to maximize battery life. For best performance, hold the scanner at a slight angle to reflective barcodes and ensure the aiming pattern covers the entire code. Use the 'Green Spot' confirmation to verify successful reads without looking at the screen.
